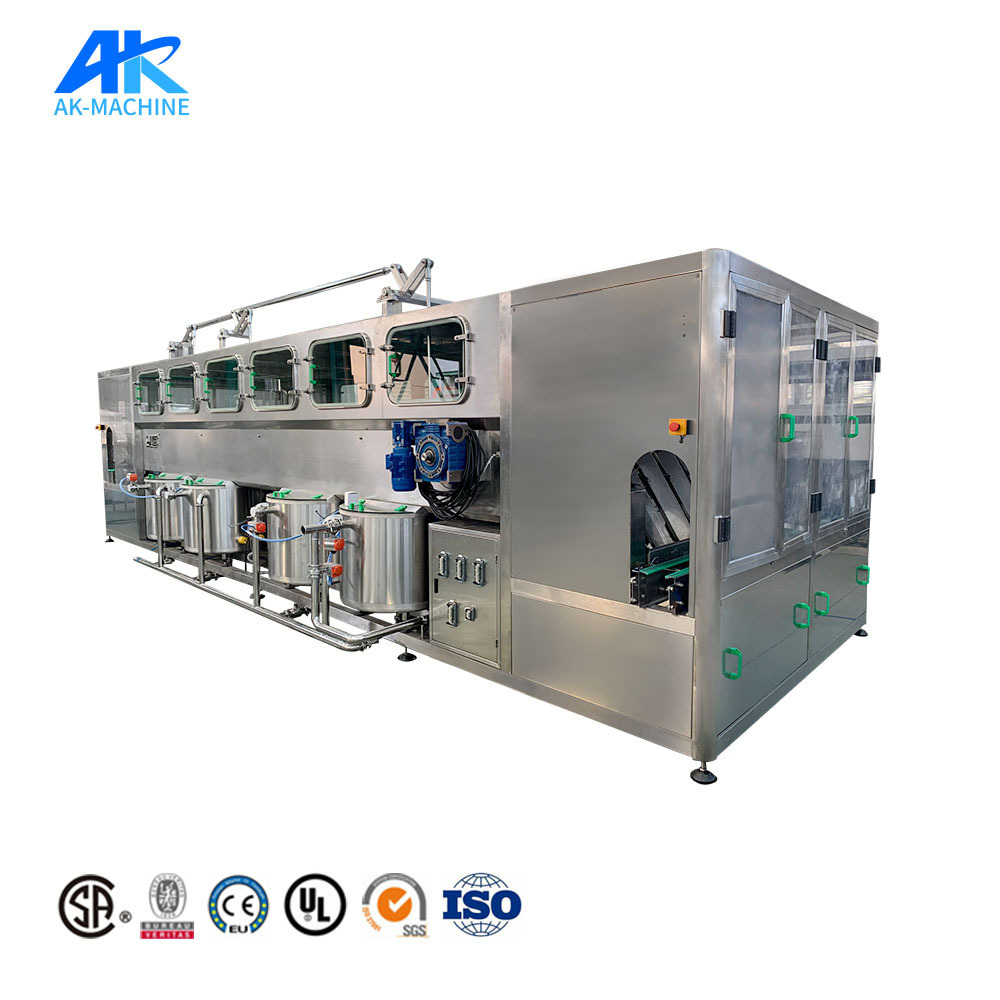

Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine

Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $4500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
≥99.7%
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
AK-MACHINE
Dimension(L*W*H):
2250*1650*2650mm
Weight:
3500 KG
Filling material:
mineral pure water
Product name:
gallon water filling machine
After-sales service:
Engineer or online support
Usage:
Bottled water processing production line
Bottle type:
PE Plastic Bottle
Keywords:
Drinking Water / Bottled Water Production Plant
Filling volume:
3 to 5 gallons
Production capacity:
150-1500BPH
Machine material:
Stainless Steel SUS 304
Model:
AK-5 Gallon Filling Machine

Quick Details

Machinery Capacity:
Other, 400BPH, 500BPH, 1000BPH, 100BPH, 200BPH
Packaging Material:
Plastic, Wood
Filling Material:
Other, Water
Filling Accuracy:
≥99.7%
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
AK-MACHINE
Dimension(L*W*H):
2250*1650*2650mm
Weight:
3500 KG
Filling material:
mineral pure water
Product name:
gallon water filling machine
After-sales service:
Engineer or online support
Usage:
Bottled water processing production line
Bottle type:
PE Plastic Bottle
Keywords:
Drinking Water / Bottled Water Production Plant
Filling volume:
3 to 5 gallons
Production capacity:
150-1500BPH
Machine material:
Stainless Steel SUS 304
Model:
AK-5 Gallon Filling Machine
Product Description
Automatic Big Barrel 10L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
Machine Size
5500*1100*2000MM
Production Capacity
150-1500 bottles per hour
Bottle Size
3/5 Gallon;20L
Weight
3500KG
Bottle Material
PET/PC Barrel
Machine Material
Stainless Steel 304/316L
Way Of Filling
Gravity Filling
Pressure
0.7Mpa
Air Comsumption
0.8m³/min
Model
QGF-150
QGF-300
QGF-450
QGF-600
Capacity
150BPH
300BPH
450BPH
600BPH
Bottle Volume
5 Gallon
5 Gallon
5 Gallon
5 Gallon
Bottle Size
270*490MM
270*490MM
270*490MM
270*490MM
Bottle Height
490MM
490MM
490MM
490MM
Machine Power
4.5KW
7.5KW
9KW
11KW
Machine Size
4750*1750*2250MM
4700*2100*2250MM
4800*2100*2250MM
4850*2100*2250MM
Detailed Images
Washing part for filling machine
Washing Part
Function : washing bottle inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style
inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal
bottle crash during washing
<3> 304/316 stainless steel washing pump
Filling Part For Filling Machine
Filling Part
Fucntion : filling water into bottle .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume
adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish,
no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping Part For Filling Machine
Capping Part
Function : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make
sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction <3> No bottle no capping
<4> Automatic stop
when lack of bottle
Related Products
Packing&Shipping
All the machines packed in wooden case packing with plywood.
After Sales Service
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance

Before shippment.
