It automatically jets and sterilizes the inner and surface of the can. All the materials are made of stainless steel.When the tank
turned into the first tank after tank-cleaning ,and appearance under the temperature by a porous pipes with red spray, 0.5meters
can then rotate in order to achieve the purpose of cleaning ,and then turned the extension device can slide into the next chain road.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≥99.7%
-
Voltage:
-
220v/380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OK Machinery
-
Dimension(L*W*H):
-
2200*2100*2200 mm
-
Weight:
-
1900 KG
-
Product name:
-
Can filling machine
-
Feature:
-
Washing Filling
-
Usage:
-
Beverage Packaging
-
Function:
-
Can Washing Filling Sealing
-
Bottle type:
-
Round Bottle
-
Keywords:
-
Fillng Machine
-
Capacity:
-
2000-36000bph
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
After Warranty Service:
-
Video technical support
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Paper, Wood
-
Filling Material:
-
Beer, Other, Milk, Water, Juice
-
Filling Accuracy:
-
≥99.7%
-
Voltage:
-
220v/380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OK Machinery
-
Dimension(L*W*H):
-
2200*2100*2200 mm
-
Weight:
-
1900 KG
-
Product name:
-
Can filling machine
-
Feature:
-
Washing Filling
-
Usage:
-
Beverage Packaging
-
Function:
-
Can Washing Filling Sealing
-
Bottle type:
-
Round Bottle
-
Keywords:
-
Fillng Machine
-
Capacity:
-
2000-36000bph
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
After Warranty Service:
-
Video technical support
Product Description

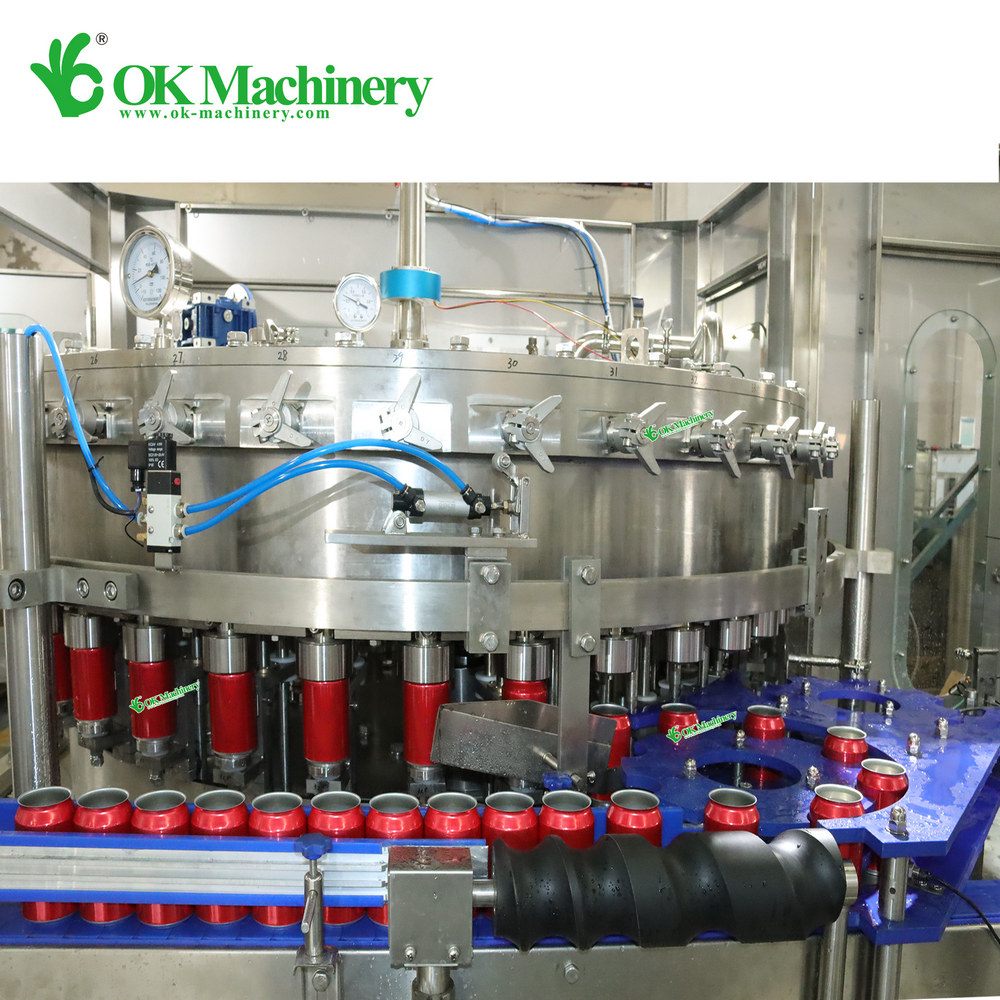

This can filling machine is used for filling carbonated beverage in cans, such as beer, cola, energy drinks and soda water. This can be used for different material of cans, such as plastic, iron, aluminum and so on, and the different size of cans is allowed.
We can design the equipment according to your requirements, filling and sealing is the overall designed power system by filling sealing system to ensure that both the absolute synchronization and coordination.
We can design the equipment according to your requirements, filling and sealing is the overall designed power system by filling sealing system to ensure that both the absolute synchronization and coordination.
A to Z complete line Can Filling Profuction Line :
(1) 2T/H -30T/H water treatment syatem ;
(2) Carbonated drink mixing and blending machhine ;
(3) 1000CPH -36000CPH can filling machine based on 200-1000ML can ;
(4) Labeling machine (PVC shrinking labeling machine ,OPP labeling machine ,sticker labeling machine );
(5) Laser printer (CO2 laser date printing machine);
(6) Packaging machine (film wrapping machine ,canton packing machine .....)
(7) Automatic palletizer and winding machine .
(2) Carbonated drink mixing and blending machhine ;
(3) 1000CPH -36000CPH can filling machine based on 200-1000ML can ;
(4) Labeling machine (PVC shrinking labeling machine ,OPP labeling machine ,sticker labeling machine );
(5) Laser printer (CO2 laser date printing machine);
(6) Packaging machine (film wrapping machine ,canton packing machine .....)
(7) Automatic palletizer and winding machine .
|
Model
|
GF18-6
|
GF32-6
|
GF36-6
|
GF40-8
|
|
Capacity
|
4000-6000CPH
|
10000-12000 CPH
|
12000-15000 CPH
|
15000-20000 CPH
|
|
Can Volume
|
200ml-1000ml
|
200ml-1000ml
|
200ml-1000ml
|
200ml-1000ml
|
|
Can diameater
|
50-70mm
|
50-70mm
|
50-70mm
|
50-70mm
|
|
Bottle high
|
120-170mm
|
120-170mm
|
120-170mm
|
120-170mm
|
|
Machine power
|
3.5KW
|
5.5KW
|
7.5KW
|
9.5KW
|
|
Machine size
|
175x120x195CM
|
305x175x220CM
|
340X195X220CM
|
350x235x225CM
|
Product details
Can washing machine
Can filling part
1.304/316 Stainless steel high precision filling nozzle
2.Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
2.Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
Can sealing part
1.Place and sealing system, electromagnetic sealing heads, with burden discharge function, make sure minimum can crash during
sealing
sealing
2. All 304/316 stainless steel construction
3. No bottle no sealing
4.Automatic stop when lack of bottle
3. No bottle no sealing
4.Automatic stop when lack of bottle
Related machine
1.Co2 mixer
The syrup water drink mixer / carbonated beverage mixer is used in production of soda drink. It adopts vacuum desoxidation system.The refreezing exchanging through the panel heat-exchanger. Water, sugar, carbon dioxide are mixed once. This can save carbon dioxide and reach the result of desoxidation. It can keep good carburizing result.
2. Conveyor belt
Stable conveying, using synchronous chasing control between the conveying belt and engine, making bottles in good condition in the conveying: non-falling, non-block,non-jam. Conveying belt is designed by module, component can be interchanged easily, with compact structure, low noise, easy assembling and maintaining, good flexibility to combine the bottle type according to the different capacity.
3. Film wrapping machine
PE film group packing machine is suitable for wrapping of such products as pop-top,mineral water,bottles,beer,drinks etc without bottom-tray ,working with PE shrink tunnel to pack the goods perfectly ,the whole producing process adopts the Germany advanced technology, and the main parts are imported from international famous companies ,Capability stable and using long-time.
4. Sterilizer tunnel
Pasteurization machine using high-quality SUS304 stainless steel,temperature, speed can be set according to process requirements,the machine running moothly, stainless steel mesh belt with high strength, small scalability, easy deformation,easy maintenance,easy operation and maintenance features .
Water treatment system
Stainless steel high pressure film shellAll kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system Online type pressure auto self-protection device Online type electricity indicator System safe protecting and alarm system System frame from 2T/H to 25T/H.
Can depalletizer
It can replace the manual can arrangement,increase production efficiency ,it is an indispensable ideal device for middle and large sized beverage plants ,PLC Programmable computer automatic controller ,photo-electricity switch,over travel-limit switch and pneumatic control ,etc ,use the famous brand from Germany and Japan and Taiwan
Sleeve labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels.
OK Machine Advantages
Advange :
(1) Provide services for empty can , label designs, and layout drawings
(2) Professional production of various filling machines for water can juice ,beer ,soda water ,oil,tea ............
(3) Our electric part use international famous brands,Mitsubishi,Siemens,Schneider........
(4) 24-hour online after-sales service .English communication helps solve problems .
(5) Serve customers over 50 countries and regions worldwide.
(2) Professional production of various filling machines for water can juice ,beer ,soda water ,oil,tea ............
(3) Our electric part use international famous brands,Mitsubishi,Siemens,Schneider........
(4) 24-hour online after-sales service .English communication helps solve problems .
(5) Serve customers over 50 countries and regions worldwide.
