Quick Details
-
Connection:
-
Plug In
-
Brand Name:
-
OEM
-
Model Number:
-
BX-1205000
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
wall mounted type 12v 5a ac dc adapter with uk us au eu plugs
-
Input:
-
AC 100-240v 50-60hz
-
Output:
-
DC12V5A
-
AC cable:
-
EU/AU/US/UK plug optional
-
Aging test:
-
100%
-
Certificate:
-
ETL CE FCC BS GS SAA RCM PSE ROHS
-
Usage:
-
STB,DSTV,LED,CCTV camera,Mobile phone.Bluetooth device...
-
Warranty:
-
2 years
Quick Details
-
Type:
-
Power Supply Adapter, Other Adapter
-
Use:
-
LED Strip,table lamp,Set Top Box,Mobile phone,Toy car,CCTV,LCD etc...
-
Output Type:
-
DC
-
Connection:
-
Plug In
-
Brand Name:
-
OEM
-
Model Number:
-
BX-1205000
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
wall mounted type 12v 5a ac dc adapter with uk us au eu plugs
-
Input:
-
AC 100-240v 50-60hz
-
Output:
-
DC12V5A
-
AC cable:
-
EU/AU/US/UK plug optional
-
Aging test:
-
100%
-
Certificate:
-
ETL CE FCC BS GS SAA RCM PSE ROHS
-
Usage:
-
STB,DSTV,LED,CCTV camera,Mobile phone.Bluetooth device...
-
Warranty:
-
2 years

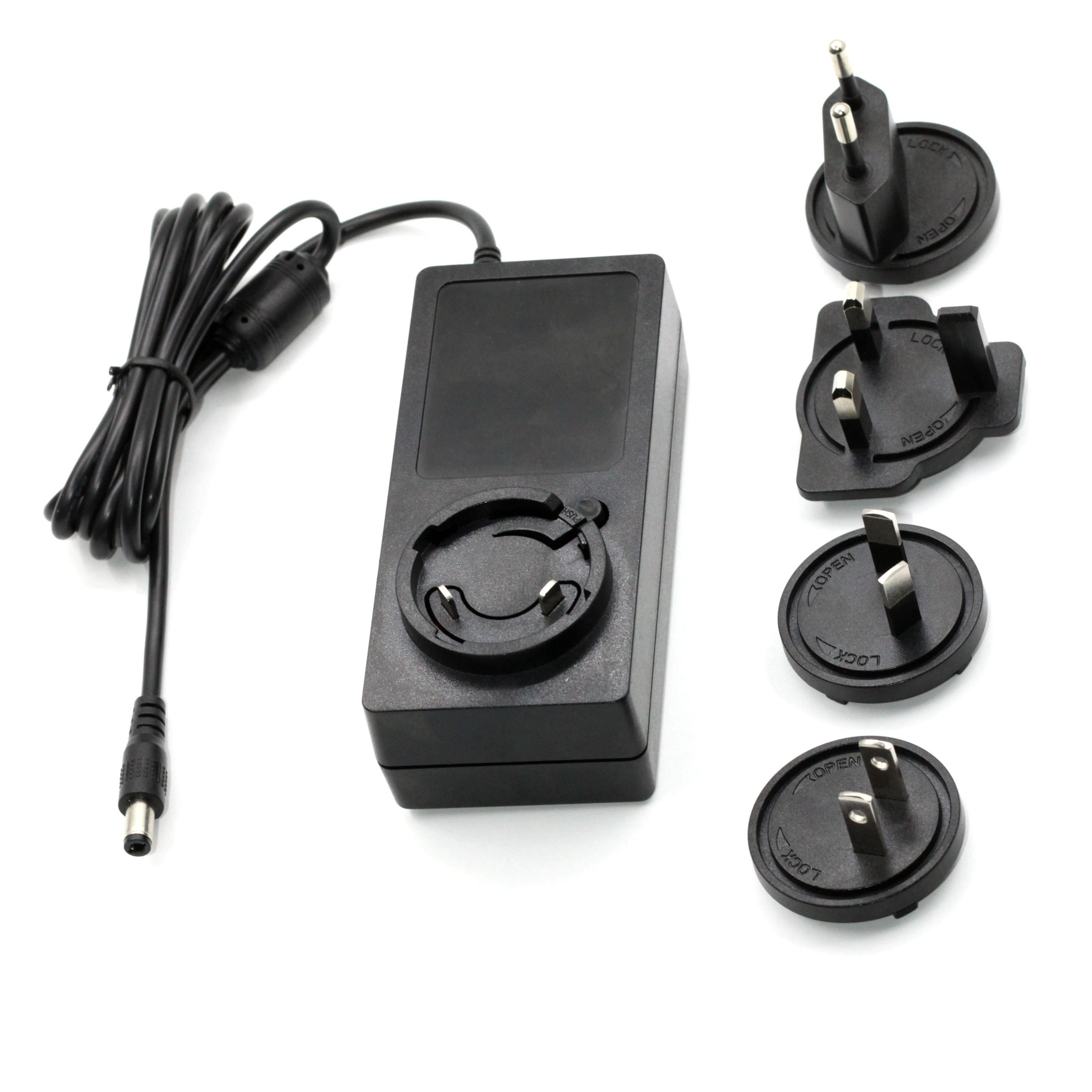

Wall-mounted type 60w c lass 2 power supply units 12v 5a interchangeable uk us au eu plugs adapter 12v 5a ac dc adapter with ETL BS GS CE RCM PSE RoHS
| Input Side(AC) | |
| Input Voltage Range | 100-240VAC |
| Input Voltage Frequency | 47-63Hz/ 50-60Hz |
| Ac type | UK US AU EU plugs all |
| Input Current | 1.5 Amps max at any input voltage and rated |
| Output Side(DC) | |
| Output type | Dc regulated power supply(Constant voltage type) |
| Output Voltage and Current | DC12V5A |
| Output Power | 60W Series |
| Dc wire | 2464/2468/1185 18AWG, 1M/1.2M/1.5M/1.8M |
| Output ripple and noise | 100mvpp at full road with 20MHz bandwidth |
| Output voltage Adjustable rate | ±5% |
| Other Details | |
| PCBs Design | Advanced core electronic components,stable intelligent control IC |
| Color | Black/White/Customized |
| Warranty | 24 months |
| Certificates | ETL BS GS SAA RCM PSE CE-EMC CE-LVD FCC RoHS |
| Protections | Over voltage protection, Over current protection, Short circuit protection. |
| Aging | 100% aging test for 4 hours |
| No-load Power Consumption | <0.21W |
| Energy Efficiency Standard | Level VI(>=88%) |
| Turn On Delay Time | <3S (AC:110V and full load) |
| Operating Temperature | 0℃ to 40℃, 10%-90%RH, Full load, Normal operation. |
| Storage Temperature | -20℃ to 60℃, 10%-90%RH |
Part of dc jack:
If you can`t find the right dc head, pls reference the other sizes above table, or you can feel free to contact us.
For dc jack and dc cable, we accept customized sizes. It`s free to laser-printing your logo and company name.
For most models, we have UL/cUL FCC KC KCC PSE CCC BIS CE EMC LVD CB BS GS SAA c-Tick RCM BSMI Rohs2.0...
Machines:
Production Devices(9): Welding Machine, Cutting Lead Machine, Wave Solder, Ultrasonic Machine, Packing Machine, Resistor Forming Machine, Jump Wire Forming Machine, Cutting Machine,Spot-Welder.
