Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DAGUI
-
Model Number:
-
FDBL-001
-
Shape:
-
Curve / Flat, Curve / Flat
-
Color:
-
Clear,Ultra clear,etc.
-
Feature:
-
High Strength,Soundproof,Safety,bullet proof,etc
-
Material:
-
Qualified Float Glass
-
Edge:
-
Beveled Edge,polished edge,rough edge,etc.
-
Deep processing:
-
Frosted,drilling,water-cut,edgework.
-
Max size:
-
2440*3660mm
-
Lifetime:
-
More than 50000hours
Quick Details
-
Application:
-
Office Building, Gym, Mall, Hospital, Villa, Hotel, Bank
-
Usage:
-
Industrial, Bulletproof
-
Thickness:
-
20mm- 100mm/ Custom thickness
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DAGUI
-
Model Number:
-
FDBL-001
-
Shape:
-
Curve / Flat, Curve / Flat
-
Color:
-
Clear,Ultra clear,etc.
-
Feature:
-
High Strength,Soundproof,Safety,bullet proof,etc
-
Material:
-
Qualified Float Glass
-
Edge:
-
Beveled Edge,polished edge,rough edge,etc.
-
Deep processing:
-
Frosted,drilling,water-cut,edgework.
-
Max size:
-
2440*3660mm
-
Lifetime:
-
More than 50000hours

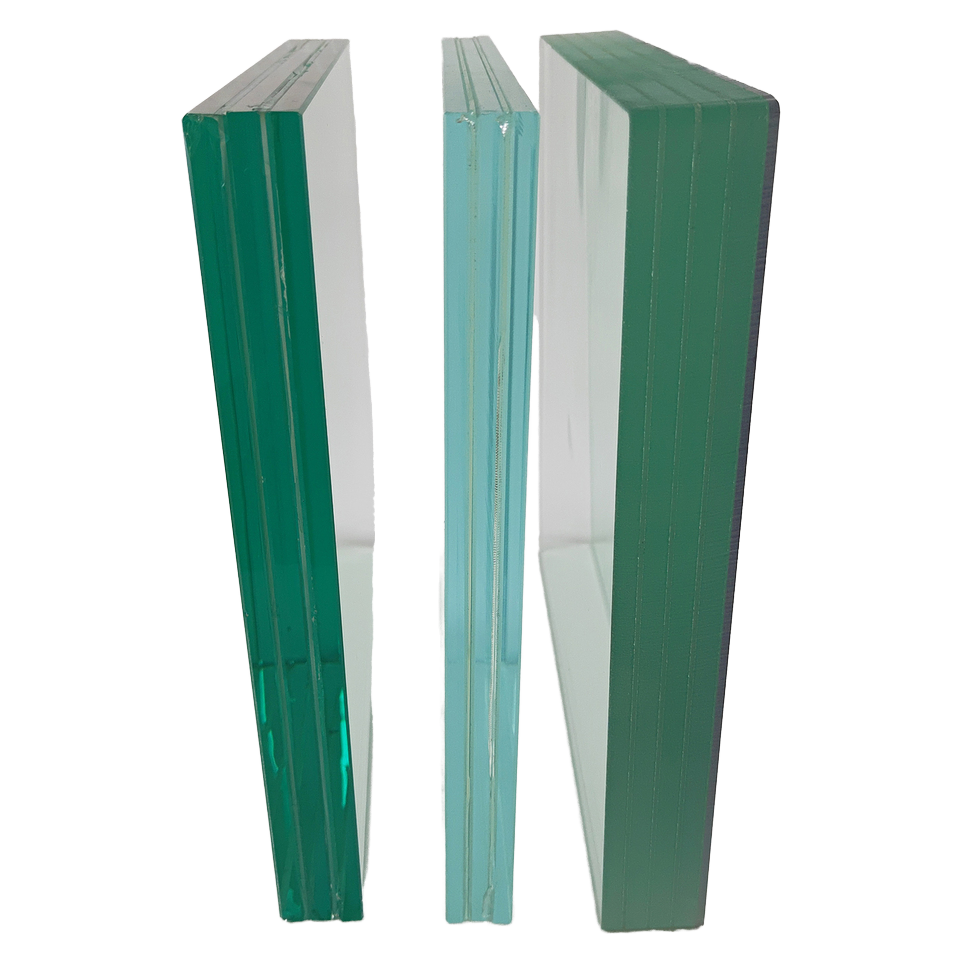

Bulletproof glass is glass that not only has the light and image transmission properties of glass, but also has the ability to protect against bullets. The bulletproof principle of bulletproof glass is that it can convert the impact kinetic energy of the bullet into the elastic potential energy of the glass and the surface energy of the fragments.
|
Bulletproof level
|
|
Bullet type
|
Nominal warhead mass (g)
|
Initial velocity of gun bullet(m/s)
|
Warhead structure
|
Bullet diameter x bullet length(mm*mm)
|
Applicable gun type
|
|
|
|||
|
Level 1
|
|
1964 Type 64 7.62mm pistol bullet (lead core)
|
4.87
|
320±10
|
Round head lead core, copper quilt armor
|
7.62x17
|
1977 style 7.62mm pistol
|
|
|
|||
|
Level 2
|
|
1951-1 type 7.62mm pistol cartridge (steel core)
|
5.6
|
445±10
|
Round head steel core, copper-clad steel jacket
|
7.62x25
|
1964 style 7.62mm pistol
|
|
|
|||
|
Level 3
|
|
1951-1 type 7.62mm pistol cartridge (steel core)
|
5.68
|
515±10
|
Round head steel core, copper-clad steel jacket
|
7.62x25
|
1954 style 7.62mm pistol
|
|
|
|||
|
Level 4
|
|
1956 style 7.62mm ordinary bullet (steel core)
|
8.05
|
720±10
|
Pointed cone bottom steel core, lead sheath, copper-clad steel jacket
|
7.62x39
|
Type 79 micro submachine gun
|
|
|
|||
|
Level 5
|
|
1953 style 7.62mm ordinary bullet (steel core)
|
9.6
|
830±10
|
Pointed cone bottom steel core, lead sheath, copper-clad steel jacket
|
7.62x54
|
1956 model 7.62mm semi-automatic rifle
|
|
|
|||
|
Level 6
|
|
Type 53 armor-piercing incendiary bomb
|
10.45
|
810±10
|
Pointed cone bottom steel core, lead sheath, incendiary copper-clad steel jacket
|
7.62x54
|
1981 style 7.62mm automatic rifle
|
|
|
|||
Q1.
Are you a bulletproof glass factory?
A:
Yes. Visit our factory.
Q2.
How can I get a quote for your bulletproof glass?
A:
Please tell me the bulletproof level, size, color, quantity, whether further processing is needed and other detailed requirements, etc.
Q3.
Can you produce according to customization? Are the dimensions accurate?
A:
Yes, we can produce bulletproof glass according to your requirements. Cutting tolerance ±0.3MM; Glass thickness: 3-19MM Grinding tolerance: ±0.3MM; Grinding size: 55-1500MM.
Q4.
Can you help us arrange transportation?
A:
Of course, if you tell us the shipping method and name of the port.
Q5.
What is your equipment and processing capacity?
A:
We have professional fully automatic cutting and grinding machines, dust-free laminating rooms, autoclaves and other advanced equipment. We produce in strict accordance with standards and have completed production lines.
Q6.
Do you provide samples? Is it free or extra?
A: Yes, we can provide samples. All sample fees will be refunded after you place your order.
