Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
lingming
-
Model Number:
-
LM-FM01
-
Torque:
-
138N.m or Customizable
-
Product Name:
-
17 inch electric motor hub motor conversion kit for electric scooter
-
Application:
-
Electric scooter/bike/motorcycle
-
Maximum torque:
-
138N.m or Customizable
-
Speed with load:
-
50km/h or Customizable
-
Rated Rotation Speed:
-
450rpm or Customizable
-
Rated voltage:
-
60V/72V or Customizable
-
Rated power:
-
1000W-3000W
-
Magnet Height:
-
35mm
-
Certification:
-
CCC, CQC
Quick Details
-
Speed(RPM):
-
450rpm or Customizable
-
Continuous Current(A):
-
19A or Customizable
-
Efficiency:
-
≥87%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
lingming
-
Model Number:
-
LM-FM01
-
Torque:
-
138N.m or Customizable
-
Product Name:
-
17 inch electric motor hub motor conversion kit for electric scooter
-
Application:
-
Electric scooter/bike/motorcycle
-
Maximum torque:
-
138N.m or Customizable
-
Speed with load:
-
50km/h or Customizable
-
Rated Rotation Speed:
-
450rpm or Customizable
-
Rated voltage:
-
60V/72V or Customizable
-
Rated power:
-
1000W-3000W
-
Magnet Height:
-
35mm
-
Certification:
-
CCC, CQC

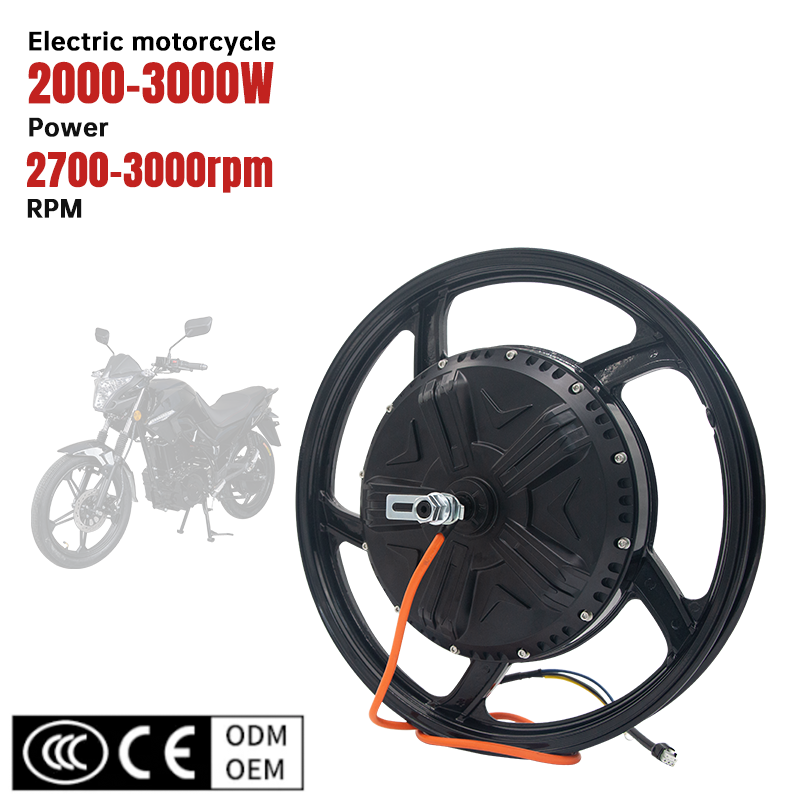

17 inch 1000W-3000W 60V/72V motorcycle electric motor hub motor conversion kit for electric scooter
| Specification | Motor Type: Hub Motor | Brake: Disc Brake |
| Rated Voltage : 60V or Customizable | Style: two rounds | |
| Magnet Height : 35mm | Stator : iron core | |
| Place of Origin : Jiangsu, China | Color : black/silver | |
| Bearing : double | Certification: CCC, CQC | |
| Waterproof :IP67 | Weight: 11.95kg | |
| Technical Data | Rated voltage | 60v or Customizable |
| Efficiency | ≥87% | |
| Maximum power | 1000W-3000W | |
| Rated power | 1000W or Customizable | |
| Maximum current | 40A or Customizable | |
| Continuous current | 19A or Customizable | |
| Rated Rotation Speed | 450rpm or Customizable | |
| RPM without load | 500rpm or Customizable | |
| Speed with load | 50km/h or Customizable | |
| Maximum torque | 138N.m or Customizable |
· High-performance aeronautical material silicon steel sheet is used to minimize iron loss.
· Using aircraft-grade material - neodymium magnet will never demagnetize.
· Adopt oxygen-free pure copper varnished wire, small resistance, high temperature resistance.
· Fast speed up
· High torque
· Low noise
· Excellent waterproof performance IP67
· Small temperature rise, fast heat dissipation
· Long service life
· Power saving and long range
