Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Flora
-
Voltage:
-
200-240V AC
-
Dimensions(L*W*H):
-
4200mm x1000mm x1750mm
-
Weight:
-
1500 KG
-
Marketing Type:
-
UV Hybrid Printer
-
Warranty of core components:
-
Please Contact for Details
-
Product Name:
-
UV printer for mobile phone case
-
Color:
-
4-6 colors + white
-
Special Design:
-
Dynamic curing LED UV lamps
-
Print head:
-
Grayscale printhead, variable ink drop size 6-18pl
-
Resolution:
-
726*1440dpi
-
Print speed:
-
Up to 100sqm/ hr.
-
Media Thickness:
-
Up to 51mm
-
Printer Type:
-
Spot Printing Support
-
RIP software:
-
Photoprint sever Flora, Onyx, Caldera for option
-
Key words:
-
PVC card printer
Quick Details
-
Print Dimension:
-
150mm, 300mm, 320mm, 400mm, 500mm, 600mm, 650mm, 700mm, 800mm, 960mm, 1000mm, 1200mm, 1300mm, 1600mm, 1800mm, 1850mm, 1900mm, 200mm*200mm, 210mm*290mm, 210mm*300mm, 297mm*210mm, 300mm*210mm, 300mm*500mm, 300mm*420mm, 300mm*450mm, 330mm*420mm, 330mm*600mm, 320mm*450mm, 400mm*300mm, 600mm*600mm, 600mm*900mm, 650mm*600mm, 650mm*900mm, 900mm*600mm, A1, A2, A3, A4, A5, 2000*300mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Flora
-
Voltage:
-
200-240V AC
-
Dimensions(L*W*H):
-
4200mm x1000mm x1750mm
-
Weight:
-
1500 KG
-
Marketing Type:
-
UV Hybrid Printer
-
Warranty of core components:
-
Please Contact for Details
-
Product Name:
-
UV printer for mobile phone case
-
Color:
-
4-6 colors + white
-
Special Design:
-
Dynamic curing LED UV lamps
-
Print head:
-
Grayscale printhead, variable ink drop size 6-18pl
-
Resolution:
-
726*1440dpi
-
Print speed:
-
Up to 100sqm/ hr.
-
Media Thickness:
-
Up to 51mm
-
Printer Type:
-
Spot Printing Support
-
RIP software:
-
Photoprint sever Flora, Onyx, Caldera for option
-
Key words:
-
PVC card printer
Printing Machine Description and Parameters

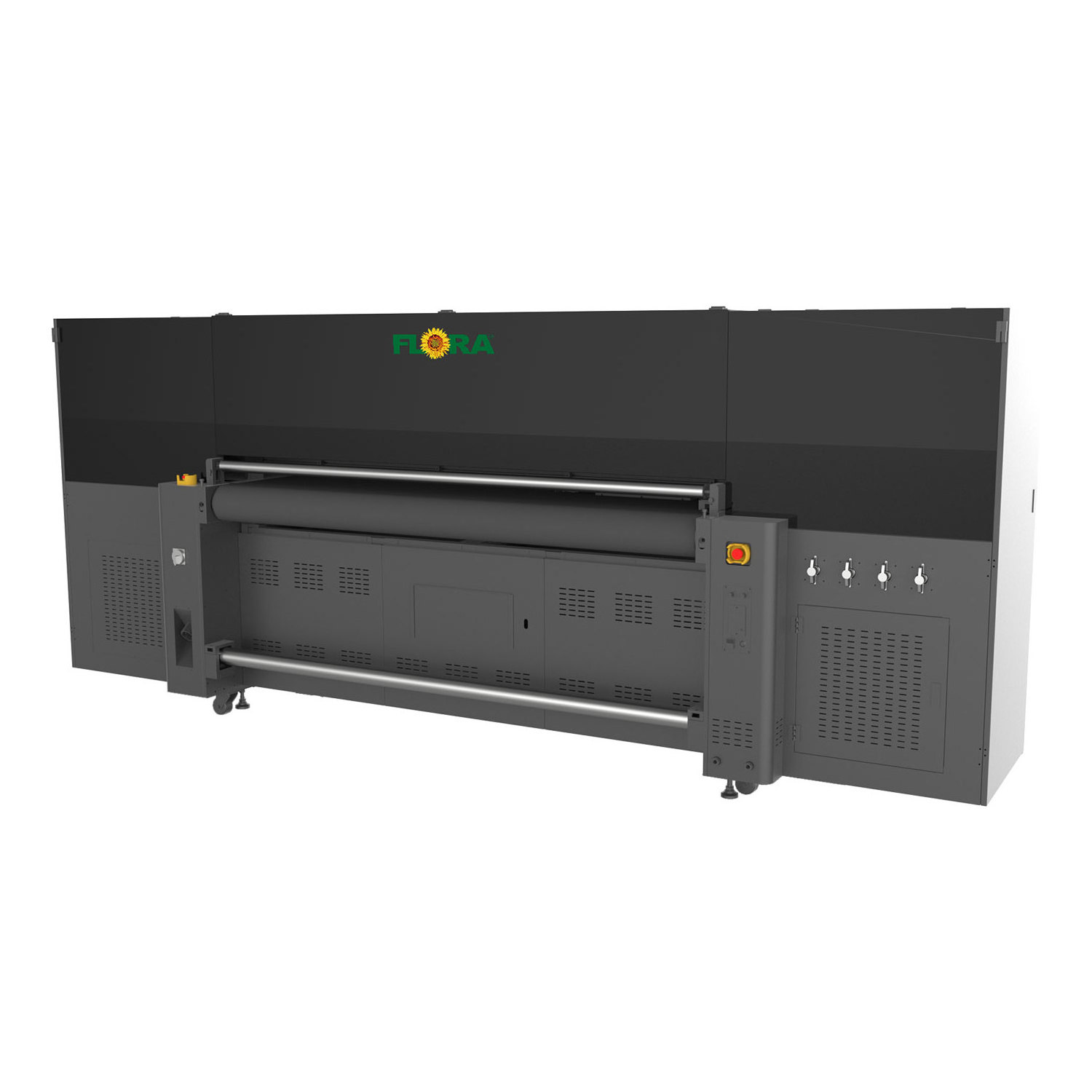

XTRA2000 / X20UV
High Speed, High Resolution UV Hybrid Printer
Features
1. Variable color configuration + grayscale print mode Dual CMYK array, supporting white printing x20uv standard config 4 colors, max 12 printheads, Light cyan. light magenta and white for option to extend color configurations and applications. 2. Printhead anti-crash function Carriage will stop in case printheads are lower than media. It helps to protect printhead from crash damage caused by improper operation or bad material quality. 3. LED light box system Built-in LED light strip for previewing light box performance as printing. 4. Adjustable suction platform Adjustable printing platform suction reduces material wrinkle to guarantee printing precision. 5. Solenoid ink purge and flushing system Easy to perform, and ink-saving. 6. Automatic media locating system Media locating bar helps confirming printing initial position and ensuring accuracy. 7. Automatic height adjusting system Automatically detecting media thickness and adjusting printhead height function enable printing over 51mm thick substrates. It greatly improves automation and image output quality. 8. Automatic take-up and feed-in system Equipped with air shaft and motor with adjustable rotate speed, it can meet the take-up and feed-in requirements of materials with different thickness, and avoid wrinkle issues. 9. Automatic dual negative pressure system Automatic negative pressure adjustment, stable and smart. Independent white ink negative pressure system prevents white ink dripping problem and improves white ink fluency. 10. Approved by EU and international standard system Conforming to ISO9001-2008 international standard system. CE. FCC. UL. CE and RoHS certificates obtained.
1. Variable color configuration + grayscale print mode Dual CMYK array, supporting white printing x20uv standard config 4 colors, max 12 printheads, Light cyan. light magenta and white for option to extend color configurations and applications. 2. Printhead anti-crash function Carriage will stop in case printheads are lower than media. It helps to protect printhead from crash damage caused by improper operation or bad material quality. 3. LED light box system Built-in LED light strip for previewing light box performance as printing. 4. Adjustable suction platform Adjustable printing platform suction reduces material wrinkle to guarantee printing precision. 5. Solenoid ink purge and flushing system Easy to perform, and ink-saving. 6. Automatic media locating system Media locating bar helps confirming printing initial position and ensuring accuracy. 7. Automatic height adjusting system Automatically detecting media thickness and adjusting printhead height function enable printing over 51mm thick substrates. It greatly improves automation and image output quality. 8. Automatic take-up and feed-in system Equipped with air shaft and motor with adjustable rotate speed, it can meet the take-up and feed-in requirements of materials with different thickness, and avoid wrinkle issues. 9. Automatic dual negative pressure system Automatic negative pressure adjustment, stable and smart. Independent white ink negative pressure system prevents white ink dripping problem and improves white ink fluency. 10. Approved by EU and international standard system Conforming to ISO9001-2008 international standard system. CE. FCC. UL. CE and RoHS certificates obtained.
|
Technical Parameters
|
|
|
|
Model
|
XTRA2000 / X20UV
|
|
|
Color
|
4-6 colors + white
|
|
|
Light Box
|
Dynamic curing LED UV lamps
|
|
|
Printhead
|
Grayscale printhead, variable ink drop size 6-18pl
|
|
|
Printing speed
|
up to 100sqm/ hr.
|
|
|
Resolution
|
up to 726*1440dpi
|
|
|
Printing Level
|
4-level grayscale printing
|
|
|
RIP software
|
Photoprint sever Flora, Onyx, Caldera for option
|
|
|
Special Printing
|
3-layer spot color printing, CWC, WCV modes
|
|
|
Handling
|
Vacuum table convey-belt movement, outreach tables extending media printing format.
|
|
|
Rigid media size
|
2000*2000mm
|
|
|
Rolling medial format
|
width up to 200cm, roller diameter up to 30cm
|
|
|
Media thickness
|
Resolution up to 51mm
|
|
|
Productivity 1
KONICA SOLUTION
|
Express Mode(4pass)：100sqm/hr.
Production Mode(6pass)：73sqm/hr.
Quantity Mode(8pass)：54sqm/hr.
|
|
|
Productivity 2
EPSON SOLUTION
|
Express Mode(2pass)：100sqm/hr.
Production Mode(4pass)：73sqm/hr.
|
|
|
Formats
|
TIFF,JPEG, Postscript。EPS,PDF etc.CMYk and RGB pictures supported.
|
|
|
Environment requirments
|
Temperature: 20-30℃
Humidity: 40-80% (non-condensing)
Ventilation required but not supplied with the system
|
|
|
Weight and Dimension
|
Net weight : 1500kg
Dimension : [WxDxH):4200mm x1000mm x1750mm
|
|
|
Power
|
200-240V AC, single phase, 50/60Hz, 25A (printer) 25A(UV lamp)
|
|
Printer Details Images
Company RTZ Flora Profile
Exhibition Events
Certifications
RTZ has passed ISO9001:2015 international standard system certification and its products passed the FCC certification, CE certification and UL certification. It has now developed into a national level high-tech enterprise with independent intellectual property rights.
Machine Packages
the
XTRA2000 / X20UV High Speed, High Resolution UV Hybrid Printer
Net weight : 1500kg
Dimension : [WxDxH):4200mm x1000mm x1750mm
FAQ
1.Are you the factory or trading company?
A:Yes, we are the only one Flora store on Alibaba, and RTZ company directly. You are connecting the manufacturer directly.
2.How long for warranty if I buy from you?
A:12 months warranty for the machine, do not include the consumable like inks.
3.I am worry about the technical problems,how will you deal with it?
A:We have many located dealers in different country, we can offer you lacated technical support or online technical support.You do not need to worry about it.
4.It is value goods, how I can protect the bulk payment?
A:We would support T/T, L/C payment by Alibaba Trade Assurance, and also the located dealer connection for negotiation face to face.
5.How can I be the only distributor on my country?
A:Please contact us, and hope we are the best cooperators.
