Quick Details
-
Model Number:
-
SNS520
-
Material:
-
SUS304, plastic
-
Mode:
-
thread or flange
-
Product name:
-
level gauge magnetic float type liquid level gauge
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SinoSensor
-
Model Number:
-
SNS520
-
Material:
-
SUS304, plastic
-
Mode:
-
thread or flange
-
Product name:
-
level gauge magnetic float type liquid level gauge

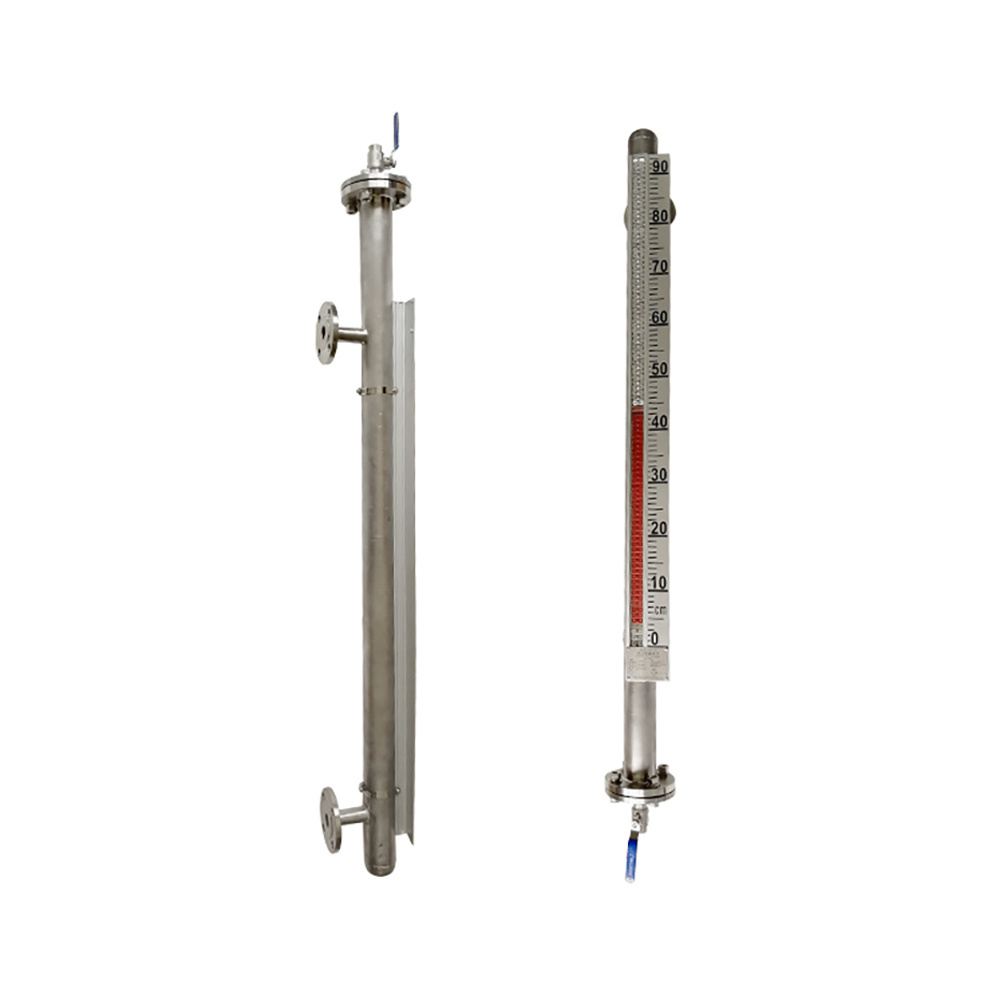

SNS520 Magnetic Level Gauge/Meter
Simple design, compact, firm and reliable, long life,Nomaintenance workload can be used in indoor and outdoorinstallation for a long time
Measured medium absolutely isolated with instructstructure, good sealing performance, leakage proof, highreliability, adapt for high voltage@Wide working pressure range ,from vacuum to 42Mpa;anti-corrosive≤2.5Mpa
Wide working temperature range, use for from -160 to+450°C
Widely used for strong and weak corrosive, flammable,explosive, toxic, strong radioactive, stirring, dirty liquid leve!measurement
All models can have magnetic alarm switch, achieve higherand lower level automatic control or alarm
All models can have 4~20mADC level sensor, realize remotecentralized measurement and control
Product Paramenters
|
Measurement Range
|
200~16000mm
|
Output Signals
|
4-20mA/HARTField display and alarm
|
|
Work Pressure
|
≤6.3MPa
|
Accuracy
|
5mm 10mm
|
|
Medium Temp
|
-160~450°C
|
Medium Density
|
>0.45g/cm3
|
|
Medium Viscosity
|
≤0.15pas
|
IP Grade
|
IP66
|
|
Connect
|
Flange DN20/DN25
|
Mount Way
|
Side mount/top mount
|
|
Rod Material
|
SUS304/SUS316/PP/PTFE
|
|
|
Details Images
SNS520 magnetic level meter component adopt 1Cr18Ni9Ti,316L,304 stainless steel lining PTFE,PVC,PP etcmaterial, with excellent reliability,stability and corrosion resistance.SNS520 Magnetic Level Gauge/Meter is works according to buoyancy principle and magnetic couplingprinciple.when the level in the container under test rises or falls , level meter master tube inside the float rises oifalls accordingly, the permanent magnetic steel in the float is transferred to the field indicator through magneticcoupling, driver turned red, white double column 180 ":As the level rises, the double column turns from white tored ,when the level down the column turn from red to white,The red and white boundaries of the indicator arethe actual height of the medium level in the container,So as to achieve liquid level indication . Precise red andwhite magnetic double column ,normal type (normal temperature) using plastic resin,High temperature adoptedwith precision alumina ceramic sintering process , armoured into high temperature permanent magnet steel hearesistance can be up to 520 'c.SNS520 magnetic level meter can used in medium level measure such as varioustower, pot, tank, spherical vessel and boiler.widely used in electric power, petroleum, chemical industry,metallurgy, environmental protection, shipbuilding, construction, food and other industries in the productionprocess of liquid level measurement and control.This series of products meet the HG/t21584-95 magnetic liquidlevel gauge industry standard
Packing&Shipping
Company Introduction
Sino-Sensor: Pioneering Excellence in Measurement Technology
As a leading force in the realm of sensor technology, Sino-Sensor has carved a niche for itself with an unwavering focus on precision in pressure, temperature, and level measurement. With an impressive legacy spanning over two decades, our commitment to exceeding customer expectations has established us as the preferred partner for Original Equipment Manufacturers (OEMs).
Our collaborative approach with customers sets us apart. By actively engaging with clients, we tailor comprehensive solutions built upon the foundation of our top-tier measurement technology components. These bespoke solutions seamlessly integrate into our clients' business processes, providing them with a competitive edge in their respective industries.
At the core of our mission is the development of innovative measurement technology characterized by ease of installation, operational simplicity, and the assurance of maximum safety and reliability. Sino-Sensor's engineering team boasts over two decades of experience, ensuring that our solutions meet and surpass the stringent demands of diverse sectors.
Our proven track record includes delivering cutting-edge solutions for chemical and pharmaceutical plants, the food industry, drinking water supply systems, sewage treatment plants, landfills, mining operations, power generation facilities, oil platforms, and various modes of transportation, including ships and airplanes.
Sino-Sensor stands as a beacon of excellence in the sensor industry, consistently pushing the boundaries of what is achievable in measurement technology. Our relentless pursuit of quality and innovation underscores our commitment to providing clients with solutions that not only meet but exceed their evolving needs. As we continue to evolve in tandem with technological advancements, Sino-Sensor remains dedicated to shaping the future of measurement technology and setting new benchmarks for the industry.
Order information
|
Measuring range
|
|
|
0-300-15000mm
|
|
|
Mount way
|
|
|
Side mount
|
C
|
|
Top mount
|
D
|
|
Output signals
|
|
|
Without output
|
|
|
4~20mADC
|
E
|
|
HART protocol
|
H
|
|
Magnetic switch
|
J1-4
|
|
Following customer request
|
77
|
|
Accuracy
|
|
|
5mm
|
2
|
|
10mm
|
5
|
|
Rod material
|
|
|
SUS304
|
304
|
|
SUS316
|
316
|
|
PP
|
PP
|
|
PTFE
|
F4
|
|
Connect way
|
|
|
2thread
|
G2
|
|
DN20
|
F20
|
|
DN25
|
F25
|
|
Following customer request
|
777
|
|
Medium temperature
|
|
|
100°C
|
N
|
|
200°C
|
T
|
|
450°C
|
H
|
|
Following customer request
|
777
|
|
Item No.
|
SNS520-[0-1000m ]J205304F25N
|
