Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
4kw
-
Dimension(L*W*H):
-
2430*1370*1915 2150*1700*1910
-
Weight (KG):
-
1860
-
Name:
-
Wood powder making machine
-
Raw material:
-
Corncob ,Coconut Shell,rice husk, wood waste etc
-
Advantages1:
-
low noise , no pullution, reasonable design, fine powder
-
Advantage2:
-
High efficiency , energy saving
-
Function:
-
mill wood pieces into wood powder
-
Structure:
-
Double layer structure with interlayer
-
Fineness:
-
adjustable
-
Output coefficient:
-
100%
-
Price:
-
manufacturer and reasonable price
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dafu
-
Marketing Type:
-
New Product
-
Voltage:
-
220V/380V
-
Power:
-
4kw
-
Dimension(L*W*H):
-
2430*1370*1915 2150*1700*1910
-
Weight (KG):
-
1860
-
Name:
-
Wood powder making machine
-
Raw material:
-
Corncob ,Coconut Shell,rice husk, wood waste etc
-
Advantages1:
-
low noise , no pullution, reasonable design, fine powder
-
Advantage2:
-
High efficiency , energy saving
-
Function:
-
mill wood pieces into wood powder
-
Structure:
-
Double layer structure with interlayer
-
Fineness:
-
adjustable
-
Output coefficient:
-
100%
-
Price:
-
manufacturer and reasonable price

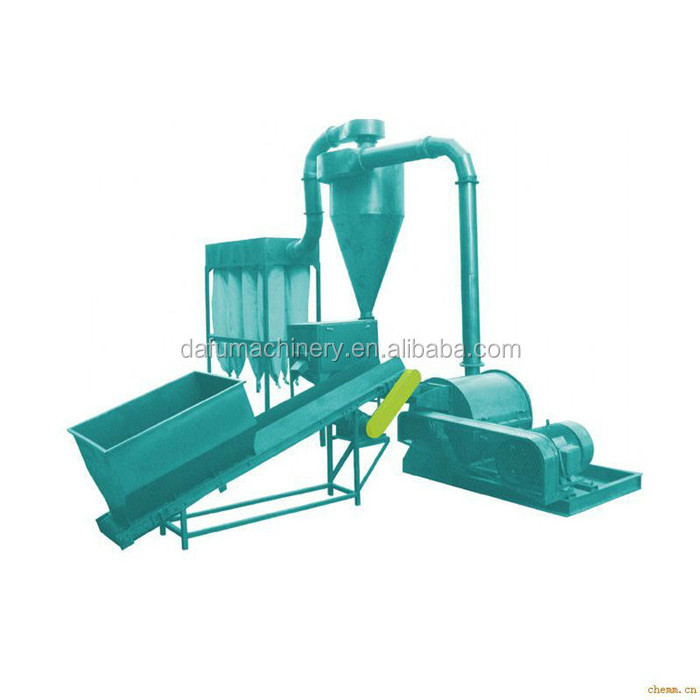

Water Cooling Type High Output Fine Wood Powder Making Machine / Wood Pulverizer for WPC
We are the professional manufacturer in Henan Zhengzhou. Our engineers have about 20 years experience in this industry. We give professional technical advice to every client. we will give our best service to meet your requirements.
Introduction of wood powder crusher machine :
Wood flour mill machine is new type of ultra-fine wood powder equipment. with a fineness analyzer is specialized in lightweight materials, fiber materials, brittle materials, ductile materials such as crushed new special milling equipment difficult. Machine inlet feed using self-priming,Holding on safety in production, replacing the traditional direct mill feed, careless piece of metal into as well as serious damage to the shortcomings. Machine production of fine, high processing technology, using double the body, cooling the body play a role into the water, into a new material, play a sound, heat function. Therefore, the use of aircraft noise in the production, no vibration.
Introduction
It is used to process bamboo wood flour, nutshell, Chinese herbal medicine, bark, leaf, wheat bran, mushroom, sesame, rice shell, corn cob, stalk, starch, shelled shrimps of grain type, fish flour, seaweed, dehydrated vegetable, flavoring substance, Chinese date, paper, circuit board, plastic, chemically raw material, mica, carbon, volcanic clay, perlite, distilled grain, furfural, cake type, charcoal, activated carbon, cellulose, potato slag, tea, hair, bean pulp, cotton, cow skin, sheepskin, plant root, stalk, leaf, flower, fruit, all kinds of edible fungus, etc and hundreds of difficult materials and is a ideal crusher in the industries of chemical engineering, building material, medicine, health care, breeding, food and mosquito-repellent incense, etc
Advantages
1) advanced Grinding and smashed equipment developed by our factory.
2) full and effective grinding, high output, low energy consumption, high efficiency
3) low noise and no pollution
4) easy to operate and maintain.
.
Water-cooling 500type:
Specification
|
Sub-item |
Water-cooling 500 type |
Water-cooling 800 type |
Water-cooling 900 type |
|
Rotary speed of principal machine (r/min) |
2900 |
2900 |
2900 |
|
Motor of principal machine (Kw) |
18.5 |
22-30 |
45 |
|
Motor of blower fan (Kw) |
4 |
4 |
4 |
|
Output(Kg) |
60-300 |
120-600 |
150-700 |
|
Feeding size(mm) |
<25-30mm |
<30-40mm |
<30-40mm |
|
Output size(mesh) |
10-325 |
10-325 |
10-325 |
|
Length, width and height of land occupied (m) |
5×2×4.5 |
5×2.6×4.5 |
5×2.9×4.5 |
|
Weight(ton) |
1.1 |
2.6 |
3.8 |
|
Volume of packing-case (m 3 ) |
15 |
20 |
22 |
Wood Powder Drying Machine
|
Packaging Details: |
standard export packing, 20ft, 40ft container. equipment fittings,electric motor and power cabinet willbe packed in wooden case. bulk
|
|
Delivery Detail: |
7working days after receiving the payment
|
Our machines and equipments are packed in standard package that fit for long distance road transportation and shipping. We ensure our customers can receive the undamaged machine in good condition.
For over twenty years, our products and services have been enjoying a good reputation in this market .
We provide the best pre-sale, sale and after-sale service . We have a professional working team that can allocate the complete line for you, to ensure that you buy the best quality and fittest machine in least money . After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine.
I f you need more information ,could you tell me the following questions ?
1 what is the raw material ?
2 what is the moisture before drying and after drying ?
3 what is the capacity ?
If you are interested in themachineryby us, please Contact us of the company for relevant prices and detailed technical parameters and specifications etc.
We have the machine in stock, welcome to make the order
