Quick Details
-
Max. Wheel Weight:
-
75 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UM
-
Model Number:
-
um066
-
Warranty:
-
12 Months
-
Product name:
-

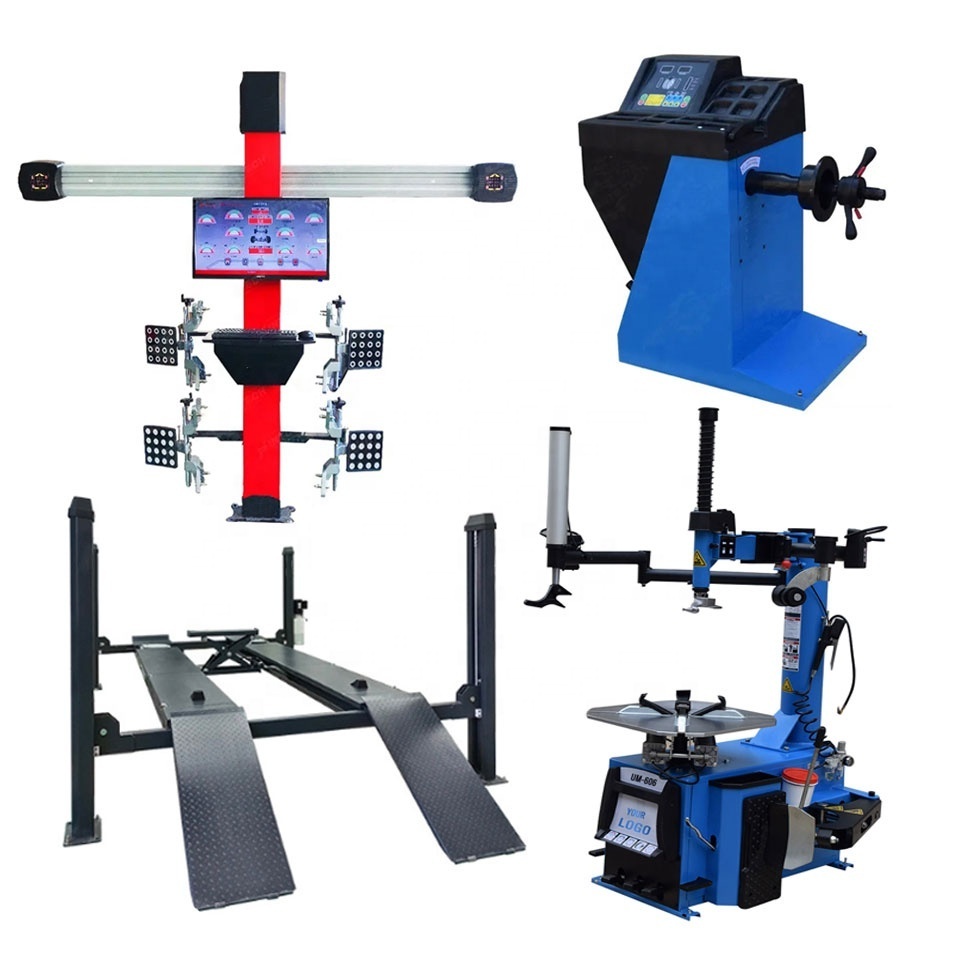

3d wheel alignment machine full set
-
Color:
-
Customers' Request
-
Certification:
-
CE ISO
-
Function::
-
Wheel Angles
-
Software::
-
Independent
-
Package:
-
Wooden Box
-
Delivery Time:
-
5-7 Days
-
Vehicle database:
-
Updated promptly
-
Turntable::
-
Included
-
Application::
-
Tire Workshop
Quick Details
-
Power:
-
0.25kw
-
Power Supply:
-
220V/110V/380V
-
Balancing Speed:
-
220RPM
-
Max. Wheel Weight:
-
75 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UM
-
Model Number:
-
um066
-
Warranty:
-
12 Months
-
Product name:
-
3d wheel alignment machine full set
-
Color:
-
Customers' Request
-
Certification:
-
CE ISO
-
Function::
-
Wheel Angles
-
Software::
-
Independent
-
Package:
-
Wooden Box
-
Delivery Time:
-
5-7 Days
-
Vehicle database:
-
Updated promptly
-
Turntable::
-
Included
-
Application::
-
Tire Workshop
Product Description
The prices online are just for reference, the accurate price is determined by several factors, like the quantity, specification, and configuration of the products.
Please feel free to contact us, we will offer you a accurate price!!
Please feel free to contact us, we will offer you a accurate price!!
|
Product Paramenters
|
|
|
||
|
MEASUREMENT ITEMS
|
MEASUREMENT ACCURACY
|
MEASUREMENT RANGE
|
||
|
TOTAL TOE-IN
|
±0.01°
|
±40°
|
||
|
EXTERNAL BEVEL
|
±0.01°
|
±45°
|
||
|
CASTER
|
±0.02°
|
±45°
|
||
|
S.A.I
|
±0.02°
|
±45°
|
||
|
THRUST ANGLE
|
±0.01°
|
±40°
|
||
|
SET BACK
|
±0.01°
|
±40°
|
||
|
MAX. STEERING ANGLE
|
±0.02°
|
±50°
|
||
|
WHEEL TRACK
|
±2MM
|
1219MM-2438MM
|
||
|
WHEEL BASE
|
±2MM
|
2006MM-4572MM
|
||
|
Tire Changer
|
|
Wheel Balancer
|
|
||
|
External Rim Size
|
12"-22"
|
Rim Diameter
|
12"-24"
|
||
|
Internal Rim Size
|
12"-24"
|
Max. Tire Diameter
|
38.5"(980mm)
|
||
|
Max. Wheel Diameter
|
44.88"(1140mm)
|
Tire Width
|
15"
|
||
|
Tire Width
|
4"-13"(101-330mm)
|
Max.Tire Weight
|
70kg(154lbs)
|
||
|
Bead Breaker Force
|
2500kgs(5,500lbs)
|
Rotation Speed
|
180rpm
|
||
|
Working Pressure
|
8-10bar
|
Balance
|
7 s
|
||
|
Motor Power
|
1.1kw
|
Motor Power
|
0.25kw
|
||
|
Power Supply
|
110V/120V/220V/240V
|
Power Supply
|
110V/120V/220V/240V
|
||
|
Machine Size
|
1100X1200X1800mm
|
Machine Size
|
1080X550X920mm
|
||
|
Packing Size
|
1120X900X1000mm
|
Packing Size
|
1100X800X1100mm
|
||
|
N.W/G.W
|
225kg/260kg(496lb/573lb)
|
N.W/G.W
|
98kg/125kg(216lb/275.6lb)
|
||
Details Images
Mobile secondary lifting, with a lifting height of 470MM, can quickly adjust the vehicle height,achieve smooth lifting and a large loadcapacity.
HEIGHT LIMIT POWER OUTAGE LOCKING
After the vehicle is lifted to the limit position, the lift is automatically locked.
SIMPLE UNILATERAL
LOCKING OPE RATION
Manual unlocking device, with four pillars locked simultaneously for
greater safety and convenience.
After the vehicle is lifted to the limit position, the lift is automatically locked.
Compared to low-pixel cameras, the field of view is wider, measurement is
Anti strong light and high reflection material, precise feedback signal, anti
drop, wear-resistant, and dust resistant for longer use.
