Quick Details
-
Frequency response (-5 dB standard):
-
37 - 115 Hz
-
Components:
-
1 x 18" driver; 1 x 12" driver
-
Power handling capacity (RMS/peak 10 ms):
-
800/3200 W
-
Connections:
-
2 x NLT4 F/M, optional 2 x NL4 or 2 x EP5
-
Driver:
-
Neodymium subwoofer
-
Cabinet box:
-
Birch plywood
-
Impedance:
-
8 0hm
-
Color:
-
Black Finish
-
Weight:
-
64 kg
-
Dimensions (H x W x D):
-
606 x 700 x 7283 / 830 mm
-
Power:
-
800W
-
Frequency Range (Hz):
-
37 - 115 Hz
-
Dimension (L x W x H):
-
606 x 700 x 7283 / 830 mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanway
-
Model Number:
-
V-SUB
-
Frequency response (-5 dB standard):
-
37 - 115 Hz
-
Components:
-
1 x 18" driver; 1 x 12" driver
-
Power handling capacity (RMS/peak 10 ms):
-
800/3200 W
-
Connections:
-
2 x NLT4 F/M, optional 2 x NL4 or 2 x EP5
-
Driver:
-
Neodymium subwoofer
-
Cabinet box:
-
Birch plywood
-
Impedance:
-
8 0hm
-
Color:
-
Black Finish
-
Weight:
-
64 kg
-
Dimensions (H x W x D):
-
606 x 700 x 7283 / 830 mm
-
Power:
-
800W
-
Frequency Range (Hz):
-
37 - 115 Hz
-
Dimension (L x W x H):
-
606 x 700 x 7283 / 830 mm

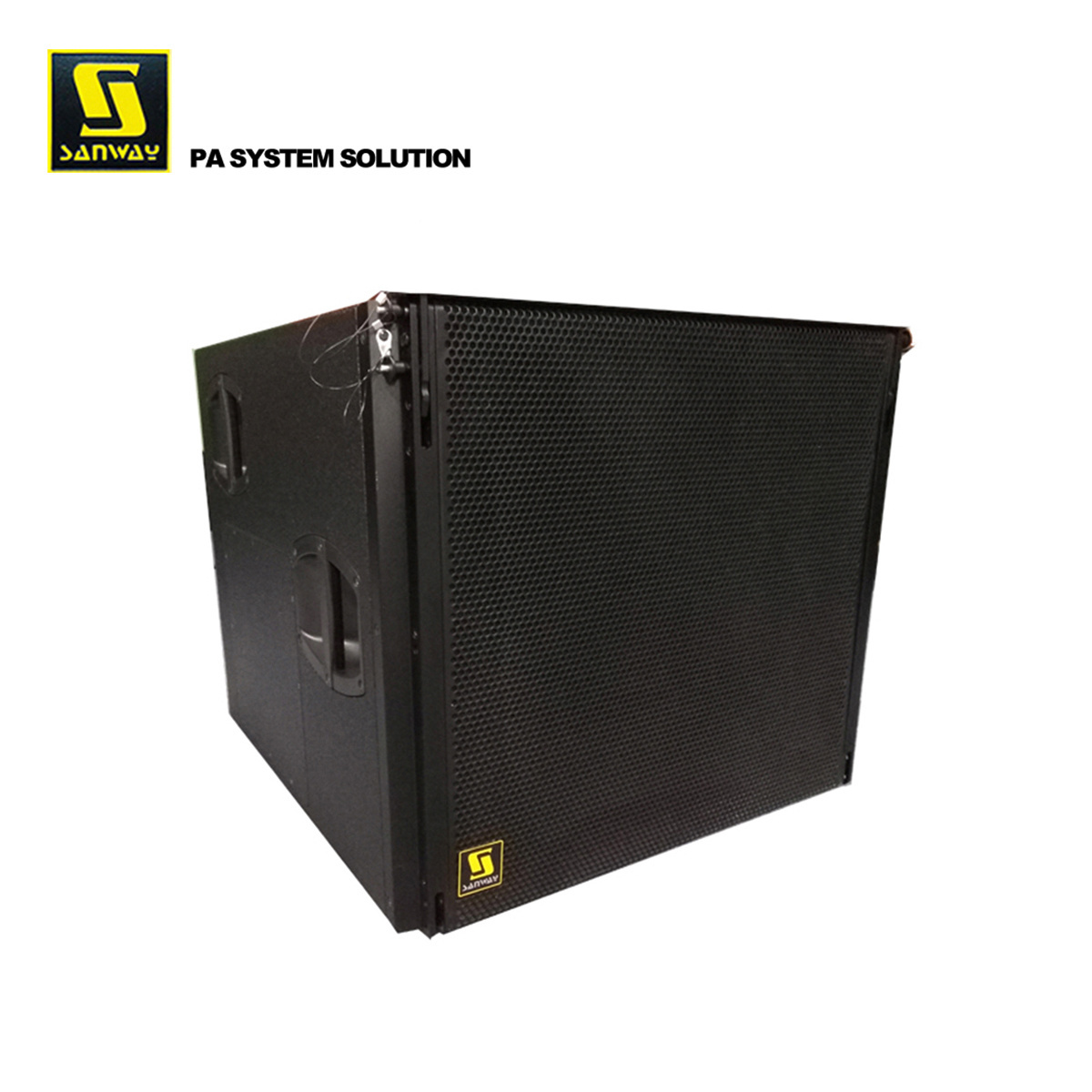

V-SUB 18 inch and 12 inch Neodymium Subwoofer 800 Watt Speaker Line Array
Overview:
The V-SUB is a high efficiency power bass neodymium subwoofer, which houses two long range neodymium drivers, 18" driver in a bass-reflex design confronting to the front and a 12" driver in a two chamber bandpass design emanating to the back.
The V-SUB neodymium subwoofer can be utilized to supplement V8 loudspakers in different pattern, ground stacked or flown, either incorporated over a V8 array or as a different line.
The V-SUB neodymium subwoofer enclosure is made from the muti-layers birch plywood and has an effect and weather protected finish. The front of the speaker enclosure is covered by a rigid metal grill backed by an acoustically transparent foam. Each side panel consists two handles, whilst the top panel has an M20 high stand flange inserted.
Features:
1x18inch and 1x12inch neodymium drivers.
cardioid design.
good quality birch wood cabinet box.
weather resistant coating
Specification:
|
Frequency response (-5 dB standard) |
37 - 115 Hz |
|
Configuration |
High performance flyable cardioid subwoofer |
|
Nominal impedance |
8 Ω |
|
Power handling capacity (RMS/peak 10 ms) |
800/3200 W |
|
Splay angle settings |
0° and 2.5° |
|
Components |
1 x 18" driver |
|
1 x 12" driver |
|
|
Connections |
2 x NLT4 F/M |
|
optional 2 x NL4 or 2 x EP5 |
|
|
|
|
|
Dimensions, weight |
|
|
Dimensions (H x W x D) |
606 x 700 x 7283 / 830 mm |
|
Weight |
64 kg |
