Quick Details
-
Voltage:
-
380v/3ph or as customer needs
-
Dimension(L*W*H):
-
3200 x 1700 x 1900mm
-
Application:
-
all places
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
15KW
-
Name:
-
Twin blade board edger
-
Saw blade diameter:
-
350mm
-
Maximum Cutting Thickness:
-
70mm
-
Maximum cutting width:
-
600mm
-
Power(W):
-
15KW/3phase
-
Control:
-
with infrared positioning
-
Feeding speed:
-
20-25m/minute
-
Weight:
-
1000KGS
-
Control system:
-
Button control or by foot distant control
-
Feature:
-
One blade fixed,another blade moving
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sawmill-world
-
Usage:
-
Cutting board egdes
-
Voltage:
-
380v/3ph or as customer needs
-
Dimension(L*W*H):
-
3200 x 1700 x 1900mm
-
Application:
-
all places
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
15KW
-
Name:
-
Twin blade board edger
-
Saw blade diameter:
-
350mm
-
Maximum Cutting Thickness:
-
70mm
-
Maximum cutting width:
-
600mm
-
Power(W):
-
15KW/3phase
-
Control:
-
with infrared positioning
-
Feeding speed:
-
20-25m/minute
-
Weight:
-
1000KGS
-
Control system:
-
Button control or by foot distant control
-
Feature:
-
One blade fixed,another blade moving
Product Description

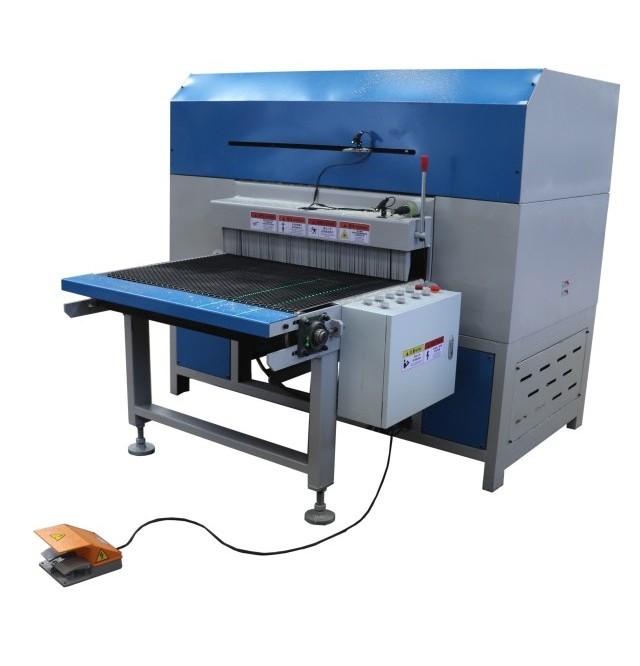

Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light .
|
Technical parameters
|
EG600A
|
EG800
|
EG1000
|
|
cutting max. width
|
600mm
|
800mm
|
1000mm
|
|
cutting min. width
|
50mm
|
50mm
|
50mm
|
|
sawn max. thickness
|
70mm
|
70mm
|
70mm
|
|
sawn min. thickness
|
20mm
|
20mm
|
20mm
|
|
Blade
|
2pcs x350mm
|
2pcs x350mm
|
2pcs x350mm
|
|
Feeding method
|
Automatic feeding conveyor
|
inverter
|
inverter
|
|
Feed Rate
|
20-25m/ minute
|
20-25m/ minute
|
20-25m/ minute
|
|
Power
|
7.5KW x 2sets
|
7.5KW x 2sets
|
7.5KW x 2sets
|
|
Machine weight
|
800kg
|
850kg
|
900kg
|
Detailed Images
Related Saw Machine
Circular Sawmill with Carriage for Big planks cutting
|
Model
|
CB300-1000
|
|
Max. sawing width
|
1000MM
|
|
Max. sawing thickness
|
300MM
|
|
Sawing length
|
6meters
|
|
Main motor power
|
18.5KW X 2 SETS
|
|
Feeding forward
|
Electrical
|
Circular Sawmill with Log Carriage
|
Model
|
BT3000-1500
|
|
Sawing thickness
|
10-180mm
|
|
Sawing maximum length
|
3000mm
|
|
Sawing maximum width
|
1500mm
|
|
Circular blade diameter
|
500mm
|
|
Motor power
|
15KW
|
|
infrared multi rip saw
|
|
|
||
|
Model
|
HW500
|
HW800
|
||
|
Max. sawing wood width
|
500mm
|
800mm
|
||
|
Sawing height
|
15~50mm
|
15~50mm
|
||
|
Main electric motor
|
11kw
|
15kw
|
||
|
Circular blade diameter
|
210mm
|
210mm
|
||
|
infrared multi rip saw - Heavy duty type
|
|
|
||
|
Model
|
ZHW800-70
|
ZHW800-100
|
||
|
Sawing thickness
|
10-70mm
|
20-100mm
|
||
|
Sawing width
|
800mm
|
800mm
|
||
|
Blade diameter
|
280mm
|
355mm
|
||
|
Electric motor
|
22kw
|
37kw
|
||
single blade edger saw
high speed multi rip saw
Product Show
Our Customer
Company Introduction
Shandong Zouping Shuanghuan Machinery Co.,Ltd is one of the world's leading manufacturers of high quality sawmills . Established in 1988, the company has always been committed to the production and R&D of sawmills and sincerely serves 11,000 enterprises. Our products have been exported to 61 countries all over the world .
Our Services & Strength
We are making unremitting efforts to improve the quality of our machines. There is strict quality control system and an experienced leadership of management team.
FAQ
Specialises in woodworking saw machines . Band sawmills , Circular saw, Multi Ripsaw, Chainsaw mill, Multi heads band saw, etc to meet all your cutting requirements.
