Quick Details
-
Application:
-
liquid tank detection appliance
-
Color:
-
Black
-
Accuracy:
-
1mm
-
Type:
-
Capacitive Level Meter
-
Power supply:
-
5V DC
-
Operating Temperature:
-
-20~ +65 °C
-
Storage Temperature:
-
-40~ +80°C
-
Working Life:
-
50000 H
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
D1CS-D
-
Name:
-
Capacitive fluid level sensor
-
Application:
-
liquid tank detection appliance
-
Color:
-
Black
-
Accuracy:
-
1mm
-
Type:
-
Capacitive Level Meter
-
Power supply:
-
5V DC
-
Operating Temperature:
-
-20~ +65 °C
-
Storage Temperature:
-
-40~ +80°C
-
Working Life:
-
50000 H

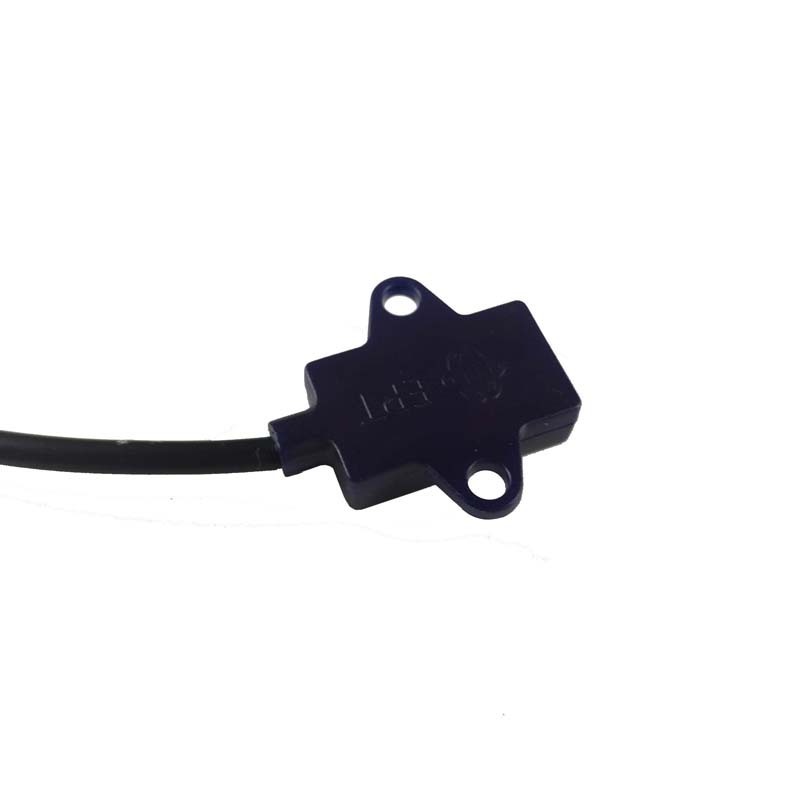

Low price D1CS-D capacitive liquid level sensor water dispenser level sensor non contact level switch
Features
1. No mechanical moving components and with high reliability.
2. Small in size and low in cost.
3. Simply locate the sensor to outside the liquid container (low temp) for detection. Easy assembly.
4. Satisfying the requirements in Safety Standards.
5. The sensor itself satisfies RoHS requirements.
6. Waterproofing standard IP62.
7. Accuracy is between ±0.5mm.
Can be used in: Water dispenser, w ater heater, h umidifier, m edical devices or equipment, e lectrical appliances and equipment’s etc. requiring liquid-level control.
| Electrical Specification (Ta=25°C ) | |||||
| Parameter | Symbol | Min. | Type | MAX | |
| Input | Supply Voltage | V CC | 4.8 | 5 | 5.2 |
| Current Consumption | I R | -- | -- | 3 | |
| Power Consumption | P | -- | -- | 15 | |
| Temp. | Operating Ambient Temperature | Topr | −20~+65 | ||
| Storage temperature | V ECO | −40~ +80 | |||
| Output Parameters (Ta=25°C ) | |||||
| Parameter | True value | Output (V) | Output C(mA) | Output C(mA) | |
| Output | Full liquid level | 0 | <0.3 | GND | <3 |
| Low liquid level | 1 | >4.5 | VCC | <3 | |
