Controlled by Siemens PLC and touch screen with friendly interface.The staff could 180°rotate the touch screen, flexible and
convenient.The controller languages can beChinese, English, French, Arabic,Spanish, Russian, etc.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
5300 x 965 x 1850mm
-
Weight:
-
1200 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Power:
-
10.8kw
-
Product name:
-

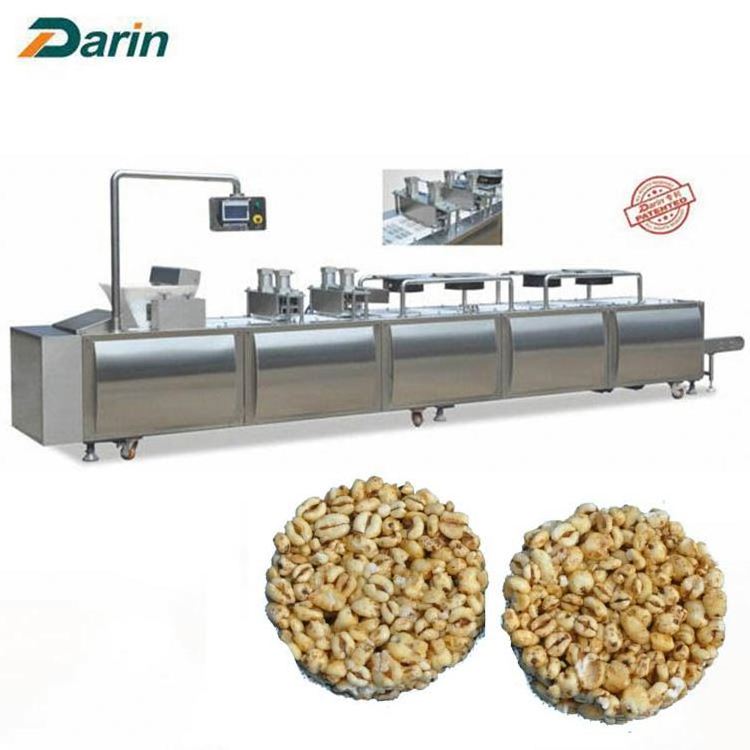

Cereal Bar Molding Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Spare parts:
-
1 set
-
Guarantee:
-
1 year
-
After-sales service:
-
Full life
-
Application:
-
Cereal bar
-
Applicable Industries:
-
Manufacturing Plant
-
After Warranty Service:
-
Spare parts
-
Raw material:
-
Grain
-
300-400kg/hr:
-
300-400kg/hr
Quick Details
-
Machinery Capacity:
-
300-400kg/hr
-
Brand Name:
-
DARIN
-
Year:
-
2022
-
Dimension(L*W*H):
-
5300 x 965 x 1850mm
-
Weight:
-
1200 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Power:
-
10.8kw
-
Product name:
-
Cereal Bar Molding Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Spare parts:
-
1 set
-
Guarantee:
-
1 year
-
After-sales service:
-
Full life
-
Application:
-
Cereal bar
-
Applicable Industries:
-
Manufacturing Plant
-
After Warranty Service:
-
Spare parts
-
Raw material:
-
Grain
-
300-400kg/hr:
-
300-400kg/hr
|
Model
|
DRC-65
|
|
Capacity
|
300-400kg/hr
|
|
Mixer Tank Size
|
390 x 380 x 410mm
|
|
Material Hopper Size
|
450 x 400 x 300mm
|
|
Mixer Tank Temperature
|
0-70℃
|
|
Mold Quantity
|
39pcs, includes
- Forming mold x 36pcs - Pressing mold x 2pcs - Demolding mold x 1pcs |
|
Forming Mold size
|
509 x 173mm
|
|
Effective mold size
|
380 x 140mm
|
|
Min. distance between mold cavity
|
11mm
|
|
Power
|
10.8kw
|
|
Weight
|
1200kg
|
|
Dimension
|
5300 x 965 x 1850mm
|
Equipped with two sets of mechanical pressing molds, does not hurt materials and without material wastage.
Equipped with sensors to accurately check the forming molds position, so the pressing mold could tightly fit, makes super cereal bar shaping.
The conveying belt is made by HMWHDPE to avoid the materials sticking on the belt, also meet food grade.Using high performance
frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour
frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour
