Quick Details
-
Suitable panel thickness:
-
1.2-1.6mm
-
Type:
-
plastic Sliding door Flush Panel Slam Latch
-
Maximum Static Load:
-
500N
-
Free sample:
-
Available, but freight collect
-
website:
-
www.lipson.com.tw
-
Operation:
-
Key
-
Standard or Nonstandard:
-
Can be customized
-
Application:
-
Electronic Enclosures,HVAC,Industrial Enclosures
-
keyowrd:
-
plastic slam latch
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Lipson
-
Material:
-
ABS
-
Suitable panel thickness:
-
1.2-1.6mm
-
Type:
-
plastic Sliding door Flush Panel Slam Latch
-
Maximum Static Load:
-
500N
-
Free sample:
-
Available, but freight collect
-
website:
-
www.lipson.com.tw
-
Operation:
-
Key
-
Standard or Nonstandard:
-
Can be customized
-
Application:
-
Electronic Enclosures,HVAC,Industrial Enclosures
-
keyowrd:
-
plastic slam latch

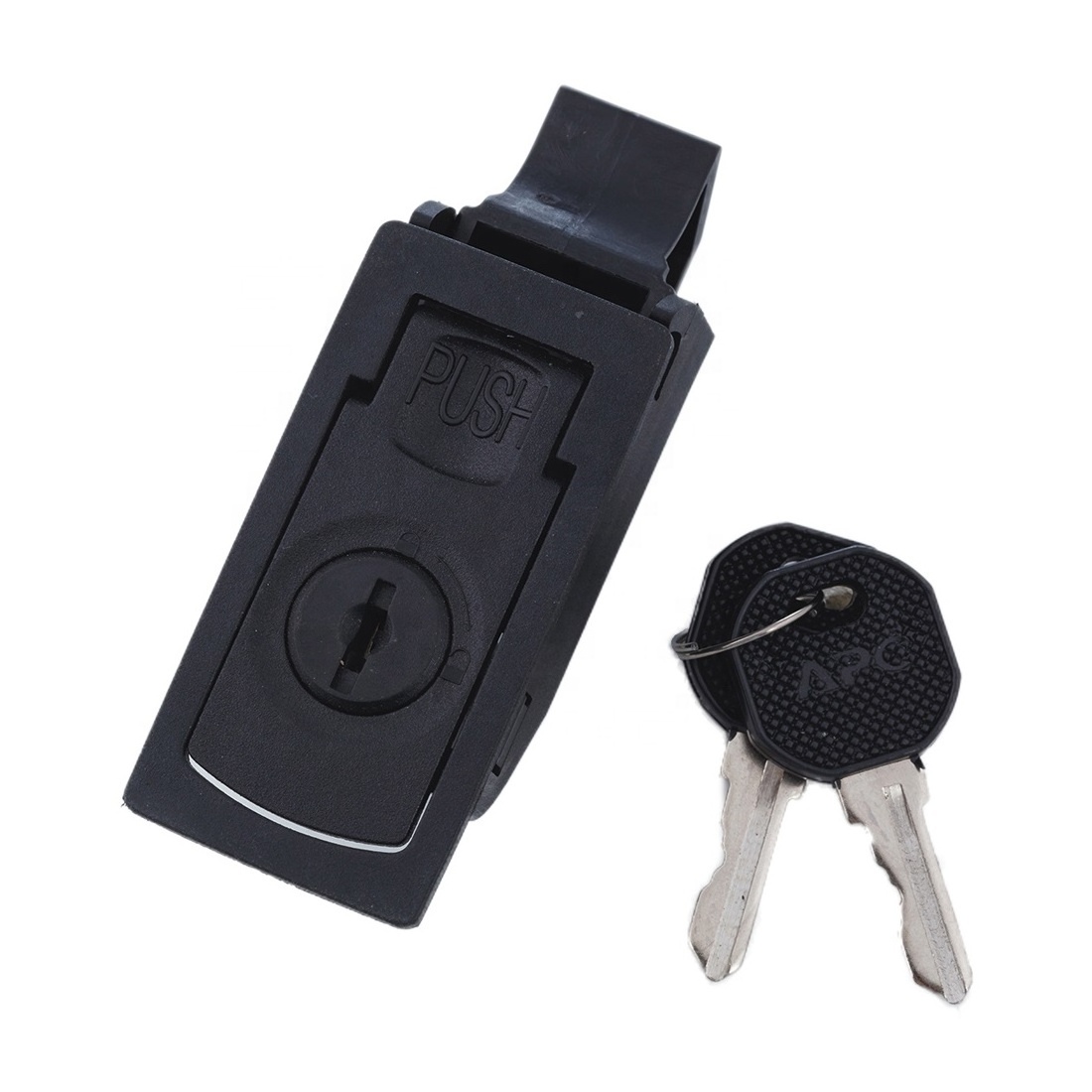

LM-725-5 Lockable Door Locking Snap In Electrical Panel Tool Box Toggle Latch Push to Close Flush Pull Plastic Slide Slam Latch
Product Description
Product description for Small plastic latch
Material:ABS
Surface Treatment:Black
Panel Thickness:1.2-1.6mm
Type: plastic Sliding door Flush Panel Slam Latch
More pictures
size specification of plastic slam latch
LM-725 control panel electrical boards cabinet latch lock
| Product Detail | |
| Product Name | Slide latch, slide lock, plastic latch, Sliding Flush Latch, Push to Close Latch, plastic latch |
| Advantage | 1) Slide to open, Mounts flush to the panel |
| 2) Opening and closing can be performed by one touch. | |
| 3) Designed for panel thickness from 1~2mm. | |
| 4) Use it at normal temperature | |
| 5) Safe and convenient to operate | |
| Feature | The latch is held in position by spring tension. when the panel is pushed closed, the sloped pawl edge meets the support corner and slides the latch back. As the panel closes fully, the pawl clears the edge of the support and the spring slides the latch forward to the closed position. The panel is opened by sliding the latch back with a finger. |
| Material | Thermoplastic (Nylon glass fiber) |
| Standard color | Black |
| Applicable panel thickness | 1-2mm |
| Panel drilling dimensions | 39.5*25.5mm |
| Similar products | Key locking versions LM-3303 is optional. |
| Usage and Feature | Cubicle, control panel, cabinet door, distribution panel, kitchen furnishings, electronic control box, cubicle and machinery door. |
| Sample | Free samples in reasonable quantity for checking quality, freight charge should be paid by customer. |
| MOQ | 100 PCS |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal or others for negotiation. |
| OEM/ODM orders are accepted | |
LM-725 control panel electrical boards cabinet latch lock
