- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1300x1800mm
-
Weight:
-
300 KG
-
Certification:
-
CE
-
Product name:
-
transparent cellophane film wrapping machine for cosmetic box
-
Length of product:
-
100-280mm
-
Width of product:
-
50-180mm
-
Height of product:
-
20-90mm
-
Sealing type:
-
film wrapping
-
Operate panel:
-
Touch screen
-
Control system:
-
PLC
-
Tracking device:
-
Photoelectric eye
-
Capacity:
-
30-50 PIECES/min
-
Language:
-
English
Quick Details
-
Packaging Type:
-
Cartons, Film
-
Packaging Material:
-
Paper
-
Driven Type:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1300x1800mm
-
Weight:
-
300 KG
-
Certification:
-
CE
-
Product name:
-
transparent cellophane film wrapping machine for cosmetic box
-
Length of product:
-
100-280mm
-
Width of product:
-
50-180mm
-
Height of product:
-
20-90mm
-
Sealing type:
-
film wrapping
-
Operate panel:
-
Touch screen
-
Control system:
-
PLC
-
Tracking device:
-
Photoelectric eye
-
Capacity:
-
30-50 PIECES/min
-
Language:
-
English
YB-SW90
High Quality
Automatic PLC Control High Speed Soap Chocolate Box Cellophane Wrapping Packing Machine Overwrap Machine
PRODUCT SPECIFICATIONS
|
No
|
Model
|
YB-SW90 Automatic transparent cellophane film wrapping machine
|
|
1
|
Product length
|
100-280mm
|
|
2
|
Product width
|
50-180mm
|
|
3
|
Product height
|
20-90mm
|
|
4
|
Speed
|
20-50 bags/min
|
|
5
|
Power
|
1.5 KW
|
|
6
|
Machine weight
|
300kg
|
|
7
|
Machine dimension
|
L3000mm, W1500mm, H1700mm
|
Product details
The machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles.
With new-type of double safeguard, no need stop of machine, other spare parts will not be damaged when the machine runs out of step.
Original unilateral hand swing device to prevent shaking the machine adversely, and the non-rotation of the handwheel when the machine keep running to secure the security of the operator.
No need to adjust the height of worktops at both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.
Sample
Details Images

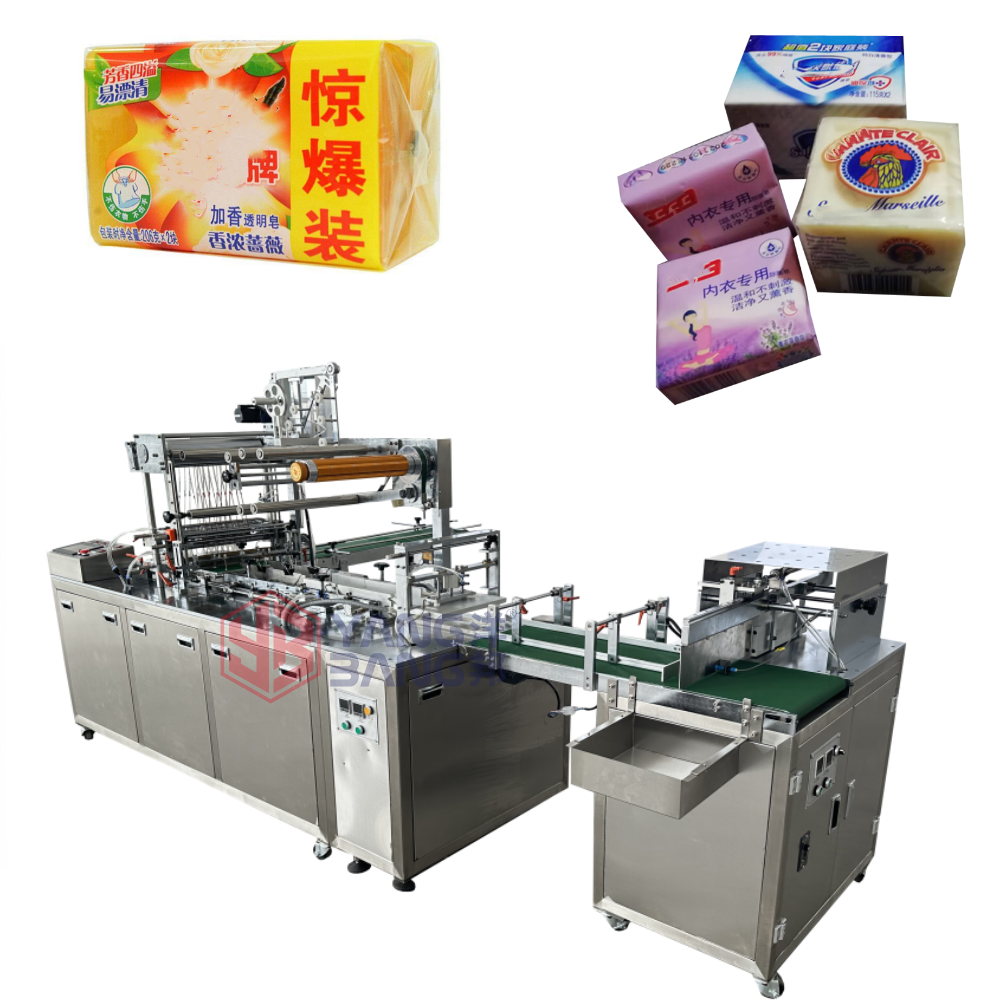

YB-SW90 High quality automatic film wrapping packaging machine
Work for high product, maximum 90mm
Put products on infeed conveyor
BOPP/PVC film cutting and folding
Automatic soap boxing/cartoning machine
,
