Chocolate Refiner Machine 50L 100L 1000L Conche Chocolate Conching Making Grinding Chocolate Refiner Machine

Chocolate Refiner Machine 50L 100L 1000L Conche Chocolate Conching Making Grinding Chocolate Refiner Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3350

≥3 Sets

US $3200

≥5 Sets

US $2950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 2.2, 1.5-55kw

Dimension(L*W*H):: 1200*800*1100mm, 2000*1860*1280mm

Weight:: 320 KG

Machinery Function:: chocolate refiner

Output product name:: liquid chocolate

Name:: Chocolate Conching Making Grinding Chocolate Refiner Machine

Volume:: 50/500/1000l

Material:: Stainess Steel

Conching time:: 3-4H

Fineness:: 20-25um

Motor:: electrical

milling time:: 7-24h

Quick Details

Brand Name:: Auris

Place of Origin:: Henan, China

Voltage:: 220/380V, 220/50hz,110/60hz,380v

Power:: 2.2, 1.5-55kw

Dimension(L*W*H):: 1200*800*1100mm, 2000*1860*1280mm

Weight:: 320 KG

Machinery Function:: chocolate refiner

Output product name:: liquid chocolate

Name:: Chocolate Conching Making Grinding Chocolate Refiner Machine

Volume:: 50/500/1000l

Material:: Stainess Steel

Conching time:: 3-4H

Fineness:: 20-25um

Motor:: electrical

milling time:: 7-24h

50L 100L 1000L Conche Chocolate Conching Making Grinding Chocolate Refiner Machine

Product Description

induction for chocolate conching machine:

The chocolate refiner machine is the main machine for process chocolate product,also suitable for oil material and other chemical materials.Conching time is about 7-9hours, the fineness can reach 20-25um. .

Features of chocolate making machine :
1,Machine is made of full stainless steel
2,Designed with double jacketed which allow cool water circulate, prevent the high temperature burned the chocolate.
3,Easy to operate and move, and it does not take too much space,ideal machine for lab or small factory.
4,Machine is with compact structure,simple operation, easy maintenance,low cost.

Specification

Model Number	Volume	Conching time	Power (v)	Fineness
AJM-50	50l	10-16h	2.2kw	20-25um
AJM-500	500l	14-18h	11kw	20-25um
AJM-1000	1000l	14-18h	22kw	20-25um

Details Images

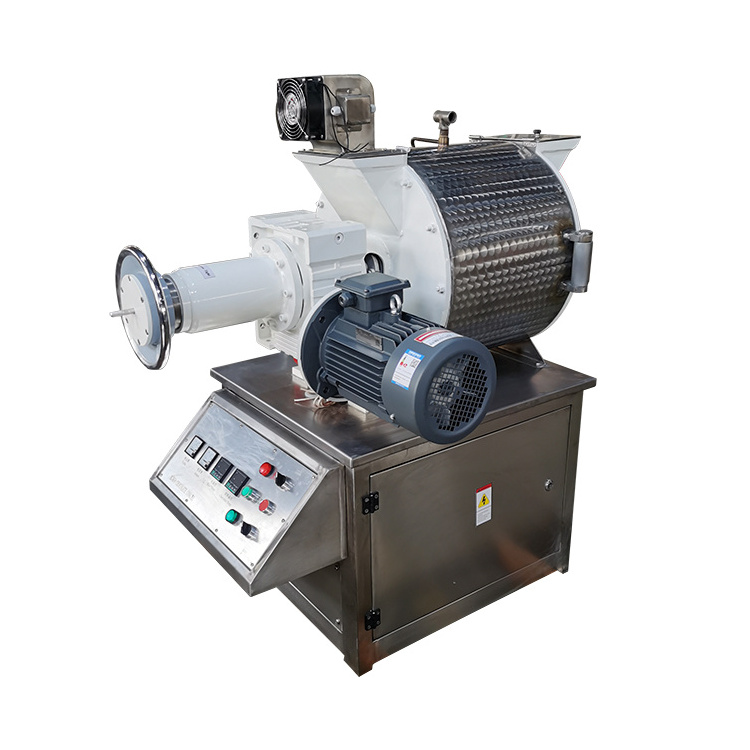

50L volume chocolate conching machine

usually used in the lab, and for small refining chocolate. chocolate conche is one of the main equipment for fine grinding of chocolate material, it is also can be used for the grinding of bean powder, oil material , as well as for the grinding of chemical materials. The grinding time takes approx 10-16 hours, with
the average fineness being to 20um

The feeding hole and gas overflow hole of chocolate conching machine are located opposite to each others, they shall be opened irregularly during grinding procedure. And it can play a good role in dehydration and deodorization when the air overflow
naturally, thus can retain the natural color and smell of the chocolate.

The barrel of chocolate conche refiner is jacket type, it has two heating method: steam heating and electric heating as per the customer option. During the grinding process, the conched is closed completely, which is in conformity to the food hygienic requirement.
