8 Inch GT9721 Capacitive Touch Screen I2C Interface 5 Points Touch Panels

8 Inch GT9721 Capacitive Touch Screen I2C Interface 5 Points Touch Panels

FOB Reference Price: Get Latest Price

≥2 Pieces

US $25.9

≥100 Pieces

US $18.9

≥500 Pieces

US $14.9

≥1000 Pieces

US $11.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Screen Size:: 8 inch

Cover Thickness:: 7mm

Power Voltage:: 2.8V ~ 3.3V

Transparency:: ≥85%

Resolution:: 800*600(adajustable)

VA(mm):: 122.16±0.2*162.80±0.2

OD(mm):: 150.11±0.1*196.22±0.1

Driver IC:: GT9271

Touch points:: Multi Point Touch

Application:: Industrial Application

Quick Details

Type:: Capacitive touch screen

Brand Name:: WANTY

Place of Origin:: Guangdong, China

Screen Size:: 8 inch

Cover Thickness:: 7mm

Power Voltage:: 2.8V ~ 3.3V

Transparency:: ≥85%

Resolution:: 800*600(adajustable)

VA(mm):: 122.16±0.2*162.80±0.2

OD(mm):: 150.11±0.1*196.22±0.1

Driver IC:: GT9271

Touch points:: Multi Point Touch

Application:: Industrial Application

Product Paramenters

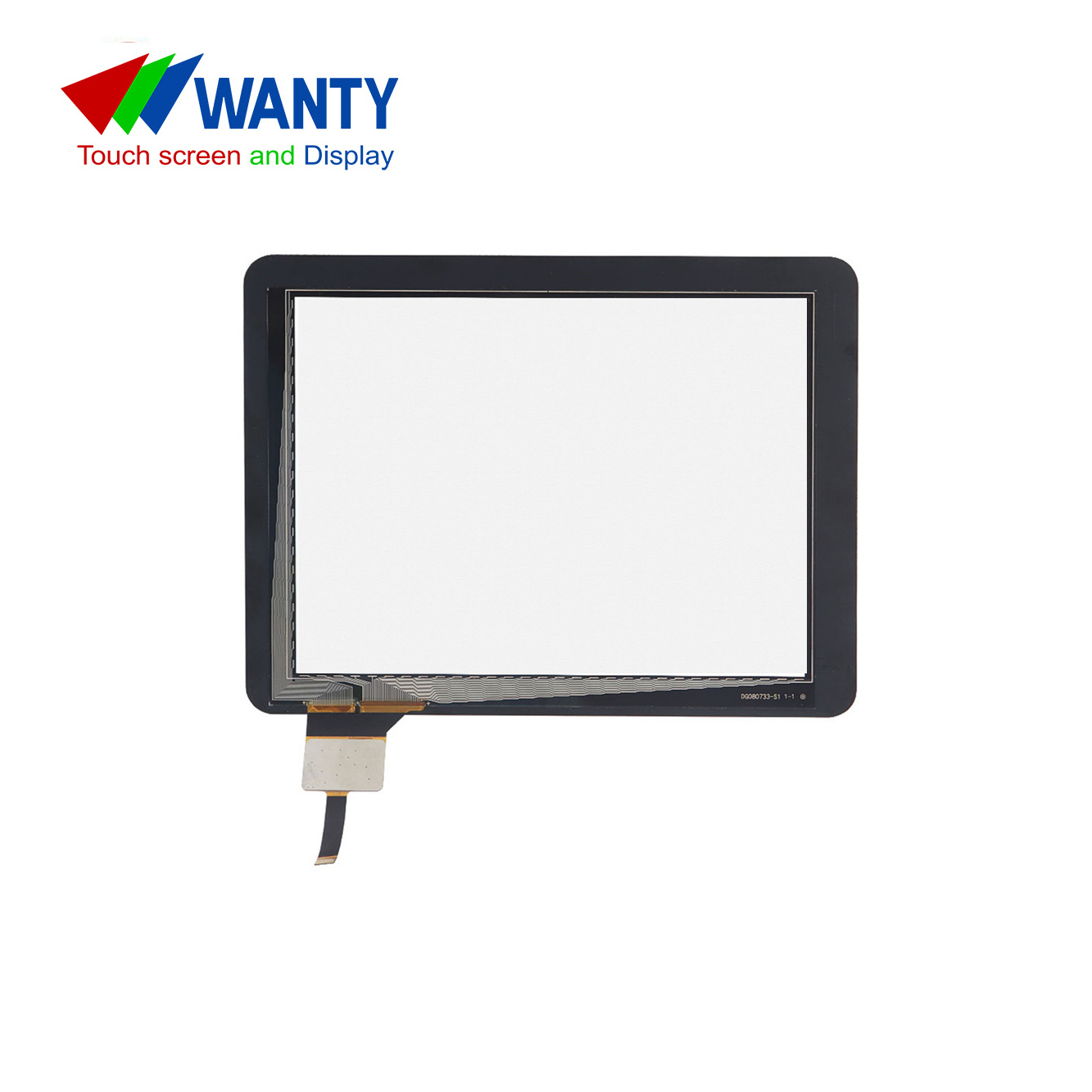

The 8 Inch Touch Panel (Model No. WTY080733A01) is a G+G structure capacitive touch panel, which is composed of a cover glass, sensor glass, driver IC and FPC. It is driven by a FOCALTECH IC Chip GT9271 , which utilizes an I2C interface and supports 10 points touch.

Size:	8 Inch，Accept custom size
Touch Type:	Capacitive Touch Panels（PCAP）
IC Chip:	GT9271
Touch Points:	5-10 Points
Display Type:	IPS,TN
Touch Structure:	G+G Structure
Anti-Glare/Anti-Reflection/Anti-Fingerprints:	Available，Accept customized functions
Application Fields	Industrial Control, Home Automation, Medical Device, Self-service Terminal etc

Product Description

Advantages of Capacitive Touch Panel (Capacitive Touch Screen / Capacitive Touchscreen / PCAP Touch Panel): Only needs to be touched lightly, without any pressure to generate a signal. Only needs one time or no calibration at all after production. Supporting small and medium touch screens and supports gesture recognition and multi-touch. Being wear-resistant, has a long service life, and has low maintenance costs when use it.

Wanty Recommend :

Welcome please contact wanty sales to get free samples to match your industrial projects( Click “ contact suppier ”)

send inquiry now!

TFT LCD Touch Display :

Product Size: 0.91-23.8 inch
Touch Interface : USB, I2C

Display Interface: RGB, LVDS, MIPI, EDP, SPI, TTL, MCU
Bonding Method :
Air Bonding (Tape Bonding);
Optical Bonding ( OCA / Direct Bonding)

Customized Capacitive Touch Screen:

Product Size: 0.91-23.8 inch
Interface: USB, I2C

Customization Services: Touch Customization- Anti Glare, Anti Reflection, Anti Explosion, Anti Fingerprints, Anti Static, IK Anti Impact, Waterproof, Logo Printnig, Shape, Interface type, Interface position and direction, Outline Dimensions, Thickness etc

HD-MI & USB Touch Disaply:

Product Size: 3.5-15.6 inch
Structure Type: Capacitive Touch Screen & TFT LCD Display & PCB
Interface Type: HD-MI , USB
Resolution:
800*480,1024*600,1280*800,1920*1080
Touch Points: 5-10 Points
