Quick Details
-
Brand Name:
-
ASCEND
-
Dimension(L*W*H):
-
Product Model, Customizable
-
Weight:
-
0.8 KG
-
Name:
-
mineral ore sample disc mill
-
Product name:
-
ore sample grinding mill pulverizer
-
Application:
-
Lead
-
The Machines classification:
-
Micron Milling Machines
-
Keywords:
-
Grinding Mill
-
Usage:
-
Grinding Mining Stone
-
Quality:
-
High Level
-
Advantages:
-
High Efficiency Low Energy
-
Grinding way:
-
Ecentric Force Grinding
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Capacity(t/h):
-
1-20 kg
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ASCEND
-
Dimension(L*W*H):
-
Product Model, Customizable
-
Weight:
-
0.8 KG
-
Name:
-
mineral ore sample disc mill
-
Product name:
-
ore sample grinding mill pulverizer
-
Application:
-
Lead
-
The Machines classification:
-
Micron Milling Machines
-
Keywords:
-
Grinding Mill
-
Usage:
-
Grinding Mining Stone
-
Quality:
-
High Level
-
Advantages:
-
High Efficiency Low Energy
-
Grinding way:
-
Ecentric Force Grinding

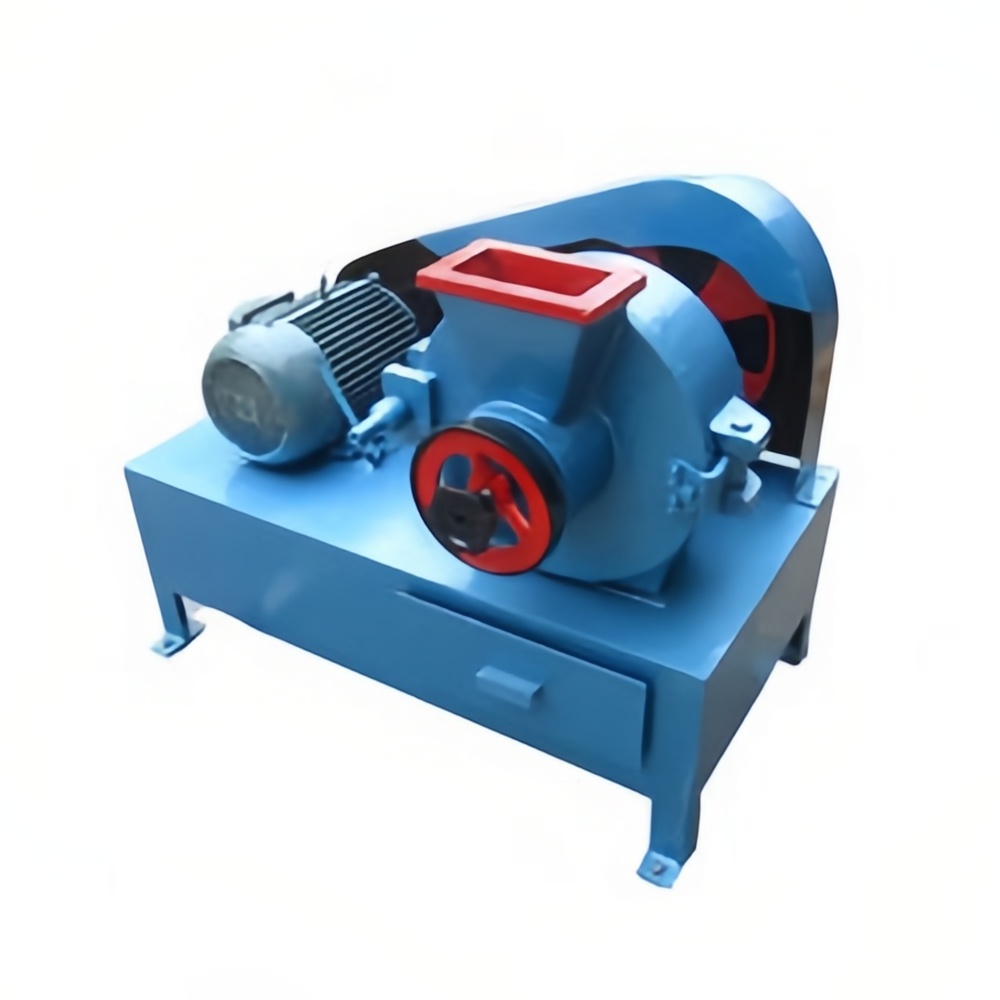

Lab used mineral ore sample disc grinding mill pulverizer
Small ore sample disc mill , also called ore sample making machine, is used for grinding the sample material of any kind of hardness to analyzable fineness continuously or intermittently for component analysis. The input size can be less than 10 mm, and the final output size is between 80-200 mesh according to your request.
Product Advantages
1. Rapid grinding by friction force.
2. Full-sealed design and no dust pollution which meets environmental protection requirements
3. Low working noisy and easy for sample collecting.
4. It can work normally on the flat ground without fixing any base
Technical parameters
| Model |
FT-150
|
FT-175
|
FT-200
|
FT-250
|
FT-300
|
|
Disc dia.(mm)
|
150
|
175
|
200
|
250
|
300
|
|
Feed size(mm)
|
≤4
|
≤6
|
≤8
|
≤8
|
≤10
|
|
Discharge size(mesh)
|
80-200
|
80-200
|
80-200
|
80-200
|
80-200
|
|
Capacity(kg/h)
|
6-20
|
10-30
|
30-60
|
60-80
|
80-100
|
|
Power(KW)
|
1.5
|
1.5
|
2.2
|
3
|
3
|
|
Voltage
|
380V50HZ
|
380V50Hz
|
380V 50Hz
|
380V50Hz
|
380V 50Hz
|
|
Main shaft speed(r/m)
|
800
|
800
|
800
|
800
|
650
|
After customer buys the equipment, if they need, we will send professional engineer to their site for insallation, commissioning and staff training. We will offer 1 year long warranty time since the machine running. Customer satisfaction is our ultimate pursuit.
