2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine

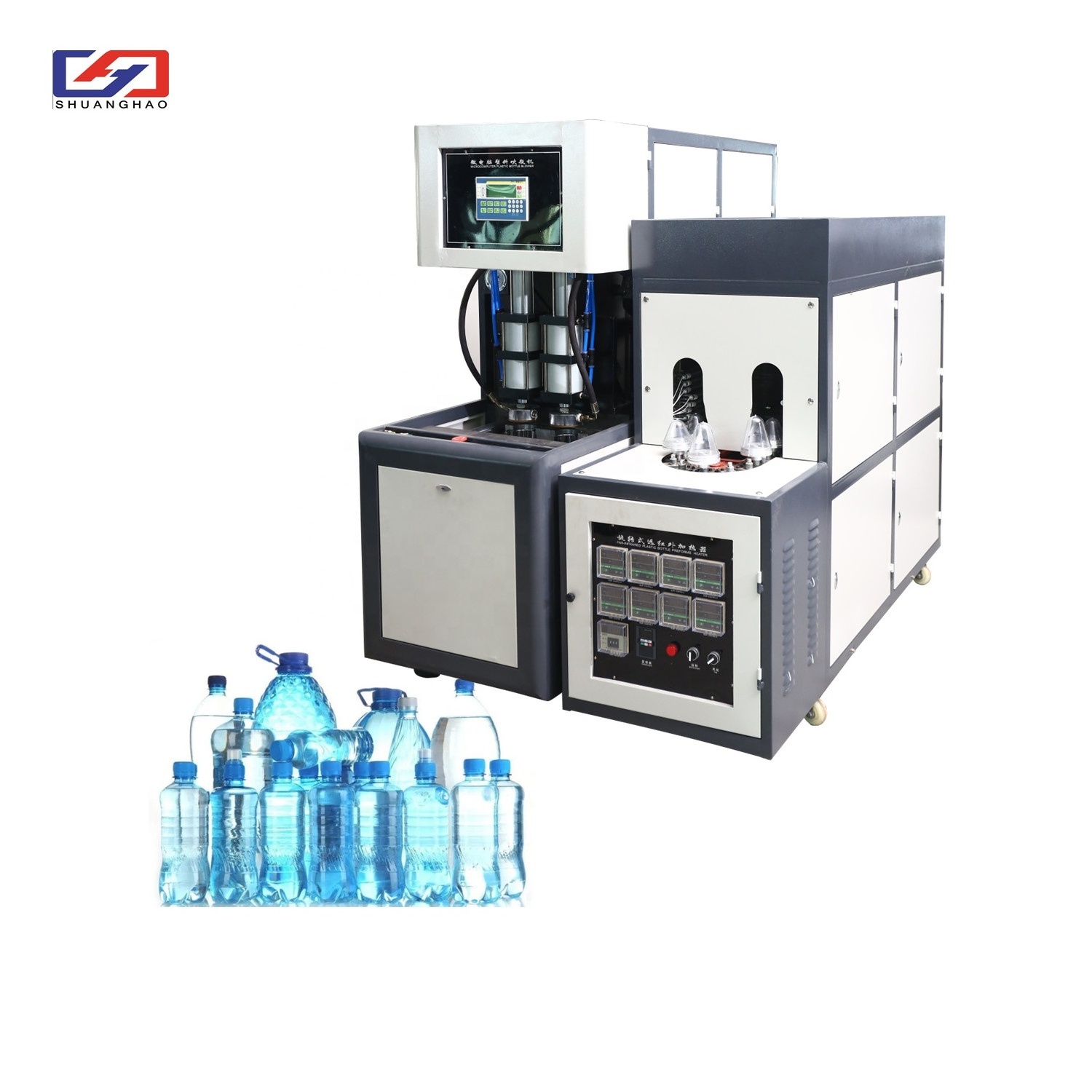

2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine
2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine
2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine
2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine
2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine
2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine
2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine

2 4 Cavities mineral water plastic semi-automatic pet bottle blow molding machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $4100
≥2 Sets
US $3950
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Bottle Volume(ml):
2000 ml
Place of Origin:
Zhejiang, China
Brand Name:
SH
Year:
Same as date of production
Voltage:
220V/380V
Dimension(L*W*H):
3.4*1.9*1.8m
Hollow part volume:
1500ml
Clamping Force (kN):
120
Power (kW):
16
Weight (KG):
650 KG
Core Components:
Other
Product name:
2 cavities 2L PET semi-auto blowing machine
Cavity:
2-cavity
Capacity:
Max.Volume 2L
Automatic type:
Semi-Automatic
After-sales Service Provided:
After-sales Service
Theoretical Output:
450-1000pcs/h
Diameter of bottle:
15-75mm
Mold clamping:
80-220mm
Clamping force:
120kn
Stretch Stroke:
360mm

Quick Details

Neck Diameter(mm):
30 mm
Max.Bottle Diameter(mm):
70 mm
Max.Bottle Height(mm):
1000 mm
Bottle Volume(ml):
2000 ml
Place of Origin:
Zhejiang, China
Brand Name:
SH
Year:
Same as date of production
Voltage:
220V/380V
Dimension(L*W*H):
3.4*1.9*1.8m
Hollow part volume:
1500ml
Clamping Force (kN):
120
Power (kW):
16
Weight (KG):
650 KG
Core Components:
Other
Product name:
2 cavities 2L PET semi-auto blowing machine
Cavity:
2-cavity
Capacity:
Max.Volume 2L
Automatic type:
Semi-Automatic
After-sales Service Provided:
After-sales Service
Theoretical Output:
450-1000pcs/h
Diameter of bottle:
15-75mm
Mold clamping:
80-220mm
Clamping force:
120kn
Stretch Stroke:
360mm
Product  name
2L 2Cavities PET Bottle  Semi-Automatic Blowing machine
Max. Product Volume
L
2
Max. No. of Cavities
Cavities
2
Preform neck(inner dia.)
mm
26-80
Preform height(max)
mm
160
Thickness of mould
mm
120-280
Opening stroke
mm
80-200
Clamping force
kn
120
Stretching stroke
mm
360
Working pressure
Mpa
≤1.0
Blowing pressure
Mpa
≤4.0
Power of main machine
kw
0.2
Weight of main machine
kgs
800
Meas. of main machine
mm
1520*580*1780
Weight of Oven
kgs
450
Meas. of Oven
mm
1450*700*1150
The semi-automatic bottle blowing machine is controlled by a microcomputer, which can more accurately control the technical parameters involved. Easy to operate, safe, only one person is required, and no special training is required Suitable for blowing carbonated beverage bottles, mineral water bottles, cosmetics bottles, etc. Machine features: 1. Processing volume 0.1-3 liter PET regular bottles, PET hot can bottle, BOPP high-temperature resistant bottles ; 2. With two cavities to product the volume 600 milliliters of bottles with output will be reach 1000 bottles per hour; 3. Advanced PLC control system, precise time control up to 0.01 seconds; 4. Special air storage device; 5. Using infrared light tubes for heating, with strong penetration, the bottle preform rotates and is heated, and the track rotates to ensure uniform heating, fast and reliable operation; 6. Different heating tubes are equipped with independent temperature control devices to ensure ideal heating effect for the preform; 7. The direction of the heating lamp tube can be adjusted according to different preform; 8. Only one person is required for operation, and no special training is required; 9. Easy installation and operation; 10. The scrap rate of finished products is less than 0.2%
5-10L PET blowing machine
1 or 2 cavities
10-15L PET bottle Blowing machine
1 or 2 cavities
1 or 2 cavities for wide opening jar
PET blowing machine
PP customized blowing machine
For produce PP preform to be jar
5 gallon 1 cavity PET Semi-automatic PET blowing machine
With extra pre-heating equipment.
5 gallon 1 cavity PET Semi-automatic PET blowing machine
Dear friend,

Please let us know the following information;
1) Material of Bottle;
2) Volume of bottle with picture or drawing
3) Production output of machine；
4) Any demand for the auxiliary machine,such as the HP air compressor,air filter and dryer and chiller.

5) Any demand for the bottle mould.

Then we can give you a exact quotation;

Taizhou Shuanghao Plastic Mold Co., Ltd. is located in Huangyan, Taizhou, Zhejiang, the hometown of molds and the capital of Plastic daily necessities in China. The transportation here is convenient, with direct flights and high-speed trains.
Shuanghao Mould Co., Ltd., founded in 2016, has always been diligent and devoted to entrepreneurship. Until now, it has become a professional manufacturer of various kinds of plastic molds for bottle caps, Injection mold construction for daily necessities,medical consumables, thin-wall molds, blow molding molds and other plastic molds, with fixed assets of more than 50 million yuan,standard plant area of more than 6500 square meters, and plant area of 9000 square meters.
We now have a strong professional team and strong strength in mold development and design. More than 90 imported processing equipment and a comprehensive CAD/CAM/CAE design system enable mold development to be completed from design to production (shipment) in a one-stop operation within the factory area, with high production efficiency. We produce over 600 sets of various plastic molds annually.
Our clients come from over 60 countries including Russia, Ukraine, Canada, the United States, Spain, Portugal, Japan, Pakistan, Kenya, Egypt, Vietnam,the Philippines, Brazil, and Europe, Asia, North America, South America, and Africa. Welcome to visit and cooperate with us.
1. Where is the location of Taizhou Shuanghao Plastic Mould Co.,Ltd?
We are based in Huangyan,Taizhou,Zhejiang, China Since 2016And our main market is Mid East(40.00%),North America(20.00%),South
America(20.00%),Southeast Asia(20.00%).

2. Can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Kinds of PET preform/caps /handle
PET Preform/Cap/handle/bottle mould
Full automatic or Semi-automatic PET Blowing Machine
Cap Assembling /slitting/folding Machine

4. Why choose us be your supplier?
We are specialized in producing caps/preforms/cap mould/preform mould and bottle mould. And also water bottle package line for
more than 10 years. We can provide the customized service with good quality.
