Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE, CE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GSO
-
Model Number:
-
GSO-5KW
-
Output Voltage (V):
-
110/120/220/230V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24 Hours
-
Product name:
-

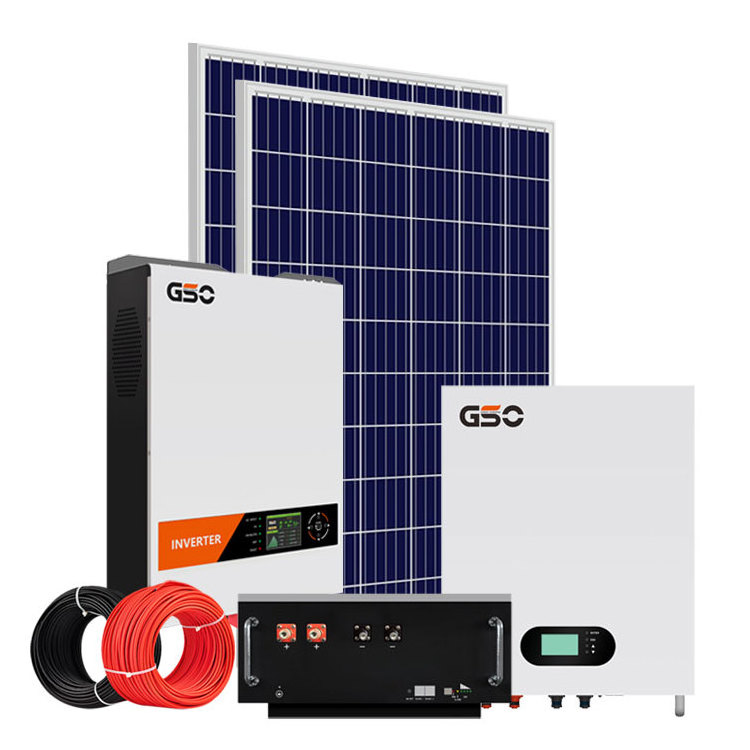

Off Grid Solar Energy Storage System Solar Energy System
-
Specification:
-
Normal
-
Battery Capacity:
-
48V 200Ah ((Optional 12V-250Ah)
-
Solar power:
-
5kW
-
Inverter with controller built in:
-
GST-5KW
-
Solar panel:
-
400W/ 450W/ 500W
-
Output Voltage:
-
110V / 220V/ 230V
-
System Voltage:
-
48V
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE, CE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GSO
-
Model Number:
-
GSO-5KW
-
Output Voltage (V):
-
110/120/220/230V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24 Hours
-
Product name:
-
Off Grid Solar Energy Storage System Solar Energy System
-
Specification:
-
Normal
-
Battery Capacity:
-
48V 200Ah ((Optional 12V-250Ah)
-
Solar power:
-
5kW
-
Inverter with controller built in:
-
GST-5KW
-
Solar panel:
-
400W/ 450W/ 500W
-
Output Voltage:
-
110V / 220V/ 230V
-
System Voltage:
-
48V
Specification
Product Name
|
2-20KW Off Grid Hybrid Solar Power Systems
|
|
|
|
|
|
|||||
System Efficiency
|
85%-90%
|
|
|
|
|
|
|||||
Life Time
|
25 Years+
|
|
|
|
|
|
|||||
Model
|
GSS-2KW-OFF
|
GSS-3KW-OFF
|
GSS-5KW-OFF
|
GSS-10KW-OFF
|
GSS-15KW-OFF
|
GSS-20KW-OFF
|
|||||
Solar Panel
|
MONO 400W x 4pcs
|
MONO 400W x 6pcs
|
MONO 400W x 12pcs
|
MONO 400W x 24pcs
|
MONO 400W x 36pcs
|
MONO 400W x 48pcs
|
|||||
Off-grid Hybrid Inverter
|
1KVA, Single Phase 230V
|
3KVA, Single Phase 230V
|
5KVA, Single Phase 230V
|
10KVA, Single Phase 230V
|
20KVA, Single Phase 230V
|
30KVA, Single Phase 230V
|
|||||
WI-FI Monitoring
|
Optional
|
|
|
|
|
|
|||||
Battery Back-up
|
Li-ion BAT 2.5KWh
|
Li-ion BAT 5KWh
|
Li-ion BAT 10KWh
|
Li-ion BAT 20KWh
|
Li-ion BAT 30KWh
|
Li-ion BAT 40KWh
|
|||||
DC Combiner Box
|
Included Compatible
|
|
|
|
|
|
|||||
PV Cable
|
50 meters/100 meters optional
|
|
|
|
|
|
|||||
MC4 Connector
|
Included Compatible
|
|
|
|
|
|
|||||
Mounting System
|
Customized for Roof or Ground Optional
|
|
|
|
|
|
