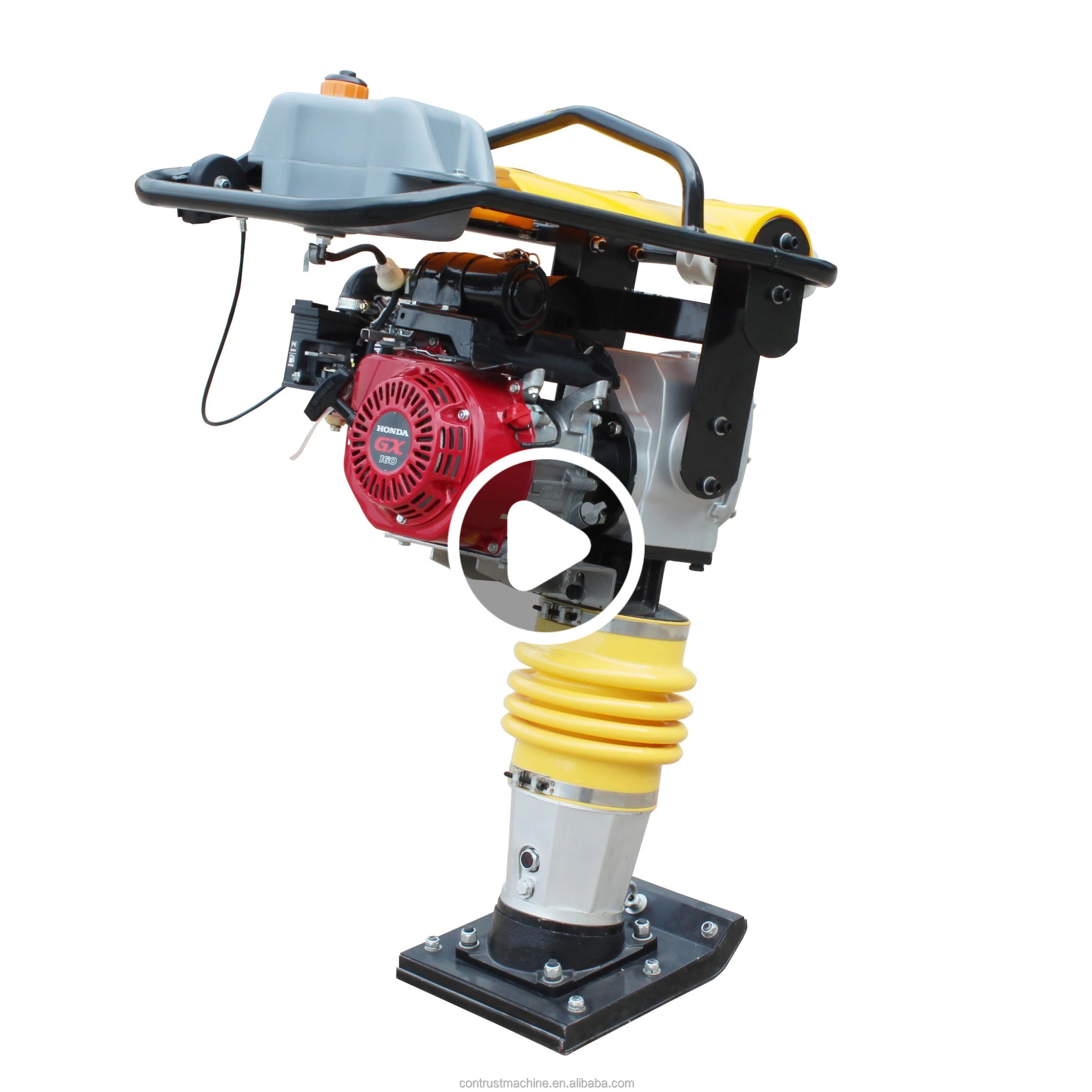

High quality compactador/tamping rammer with 5.5HP

High quality compactador/tamping rammer with 5.5HP

FOB Reference Price: Get Latest Price

≥1 Pieces

US $600

≥20 Pieces

US $350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Power:: 6kW

Dimension(L*W*H):: 73*50*109cm

Weight:: 130 kg

Name:: Concrete Vibrator Compactor

Keyword:: tamping rammer

Engine type:: HONDA / Robin

Product name:: Hydraulic Vibrating Compactor

Centrifugal force:: 15KN

Travel Speed:: 25-40cm/s

impact frequency:: 460-680 Times/min

Usage:: Compaction Works

Material:: Steel

Walking mode:: Mechanical Reversible

Quick Details

Marketing Type:: Hot Product

Application:: tamping rammer jumping jack compactor

Brand Name:: Contrust

Place of Origin:: Henan, China

Power:: 6kW

Dimension(L*W*H):: 73*50*109cm

Weight:: 130 kg

Name:: Concrete Vibrator Compactor

Keyword:: tamping rammer

Engine type:: HONDA / Robin

Product name:: Hydraulic Vibrating Compactor

Centrifugal force:: 15KN

Travel Speed:: 25-40cm/s

impact frequency:: 460-680 Times/min

Usage:: Compaction Works

Material:: Steel

Walking mode:: Mechanical Reversible

Products Description

A tamping rammer compactor is a device that enables aggregate or another powdered or granular substance to be compacted or lowered, usually to increase its density or to make it resistant to further compression. Suitable for compacting ground for ducts and pipes, roadway construction, and landscaping, the tamping rammer compactor is an ideal machine to be used in these applications.

-- Gasoline engine, excellent performance. -- High strength spring, large amplitude jump and strong pounding powder. -- High strength bast plate durable design.

The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot (shoe) through spring cylinder.

A. It has strong impact force though it is small and light. B. Multipurpose use with maneuverability.They are used for confined area, trench work, backfill and repairing work on asphalt. C. Suitable especially for compacting the roadbed with low water content that heavy vibro compactor could not work.

Specification

Engine type	Electric	Gasoline	Diesel
Model	100/110/125/130	100/110/125/130	100/110/125/138
Engine power	3KW	7.5HP	8.5HP
Tamping depth	5/8/10/12cm	5/8/10/12 cm	5/8/10/12 cm
Tamping power	1/1.5/2/3 ton	1/1.5/2/3 ton	1/1.5/2/4 ton
Jumping height	45-60/65/75/80mm	45-60/70/75/80mm	45-70/75/85mm
Impact Times	600-800 times/min	600-800 times/min	600-900 times/min
Walking Speed	10-13 m/min	10-13 m/min	12-16 m/min

Details Images

Bellows

Self-designed, more than 1,000,000 times test .

More accurate coefficient of contraction reliable and durable.

Polyurethane material folding box, wear-resisting, good resilience.

Bottom Plate

Laminated wood (plywood) and steel well absorb shock and stress.

Corrosion resistant. Unbreakable.

Cooper motor

The pure copper motor ensures good operation, high efficiency and durability of the machine.

Or choose the brand diesel engine, saving fuel and energy, simple to start and sufficient power.

Oil-Visible

Visualize the oil observation hole, you can see how much oil there is at a glance.

Fuel tank

Independent explosion-proof fuel tank. Plastic material, explosion-proof treatment, safe and durable.

Comfortable handrail

Humanized design of the handrail, cushioning vibration, durable and wear-resistant, strong anti-pressure performance.

Application

Gasoline tamping hammer is used for tamping of engineering foundation and groove backfill in the field of the road, public project,telecom, gas, water delivery, railway and so on.
