Quick Details
-
Production Capacity:
-
300-500kg/h
-
Voltage:
-
380v
-
Power:
-
5.5kw
-
Weight:
-
182 KG
-
Dimension(L*W*H):
-
960*550*900mm
-
Name:
-
Meat Mincer/ grinder Machine
-
other name:
-
meat mincing/ grinding machine
-
Material:
-
Stainless Steel
-
Usage:
-
fresh and frozen meat grinding
-
keyword:
-
Meat Grinder Cutting Machine
-
Feature:
-
safe and healthy
-
Function:
-
Grind Fresh Chicken Fish Pork Meat
-
Advantage:
-
High Efficiency
-
Meat granules size:
-
3-30mm
-
Capacity:
-
500-5000KG/H
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Joconn Machinery
-
Production Capacity:
-
300-500kg/h
-
Voltage:
-
380v
-
Power:
-
5.5kw
-
Weight:
-
182 KG
-
Dimension(L*W*H):
-
960*550*900mm
-
Name:
-
Meat Mincer/ grinder Machine
-
other name:
-
meat mincing/ grinding machine
-
Material:
-
Stainless Steel
-
Usage:
-
fresh and frozen meat grinding
-
keyword:
-
Meat Grinder Cutting Machine
-
Feature:
-
safe and healthy
-
Function:
-
Grind Fresh Chicken Fish Pork Meat
-
Advantage:
-
High Efficiency
-
Meat granules size:
-
3-30mm
-
Capacity:
-
500-5000KG/H

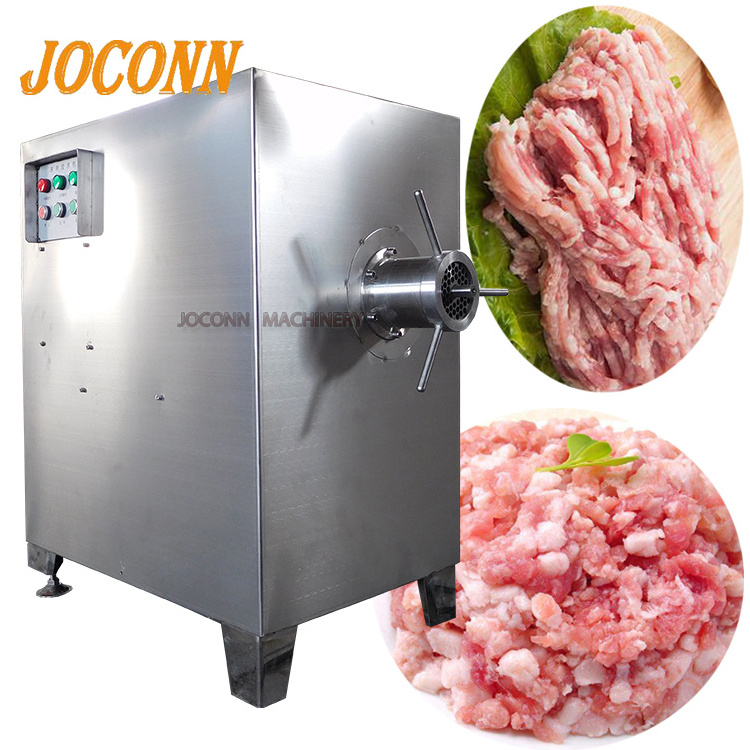

Professional meat and bone grinder/frozen poultry mincing grinding machine/frozen pork beef mutton meat crusher chopper machine
| Brief Introduction of meat grinder/ mincer machine |
| This meat grinder is suitable for both fresh and frozen meat grinding, like pork, beef, mutton, the final meat granules diameter can be ajusted from 3-30mm by changing different orifice plates . it can also grind poultry meat with bone, like chicken, duck, goose, etc. Besides meat, it's also used for vegetabels grinding and mincing to get garlic sauce, chilli sauce, surimi, chopped ginger and carrots, etc. with multi-functions and high capacity, the machine is widely used in food industries. |
| working principle of meat grinder/mincer machine |
|
When working, the raw meat is cut up by the shearing action caused by rotating cutting edge and hole edge on the orifice plate, The raw meat is cut into granular shape to ensure the uniformity. The final meat granules is continuously discharged out of machine under the action of the screw extrusion force.
According to different material properties and processing requirements, the corresponding cutters and orifice plates can be equipped to process particles of different sizes to meet the technological requirements of the next process. |
| Features of meat grinder/mincer machine |
|
1. energy saving, high efficiency, compact structure, easy operation and maintance 2. whole machine is made of 304SUS, ensure health and high quality 3. auger is produced by casting technology with smooth appearance andeasy to clean 4. low noise, high capacity of 500-5000kg/h 5. optional orifice plates diameters from 3-30mm
|
|
Model |
JR-100 |
JR-120 |
JR-130 |
JR-160 |
JR-200 |
|
Dimension(mm) |
960 * 550 * 900 |
960 8 550 * 1080 |
1315 * 700 * 1100 |
1630 * 1100 * 1450 |
1780 * 1000 * 1580 |
|
Motor power |
5.5kw |
7.5kw |
11kw |
15kw |
22kw |
|
Rated voltage |
380v |
380v |
380v |
380v |
380v |
|
Capacity |
300-500kg/h |
1000-1500kg/h |
1500-2000kg/h |
2000-3000kg/h |
3000-5000kg/h |
|
Screw Propeller speed |
270r/min |
250r/min |
190r/min |
136r/min |
87r/min |
|
Net weight |
182kg |
258kg |
700kg |
1200kg |
1860kg |
