Quick Details
-
Usage:
-
aquatic harvester
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
qinyuan
-
Weight:
-
1000 KG
-
Model:
-
Semi Auotmatic
-
The total length of hull:
-
8.5m
-
The hull is long:
-
6m
-
Width of hull:
-
2.8m
-
Collect the depth:
-
≤1.8m
-
Collect the width:
-
≤2m
-
Loading capacity:
-
2-3T
-
Power of engine:
-
39kw
-
Work speed:
-
3-5km/h
-
Drive mode:
-
Bilateral wheel
Quick Details
-
Number of Rows:
-
3
-
Working Width(mm):
-
4000 mm
-
Tractor Power(HP):
-
39 - 45 HP
-
Usage:
-
aquatic harvester
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
qinyuan
-
Weight:
-
1000 KG
-
Model:
-
Semi Auotmatic
-
The total length of hull:
-
8.5m
-
The hull is long:
-
6m
-
Width of hull:
-
2.8m
-
Collect the depth:
-
≤1.8m
-
Collect the width:
-
≤2m
-
Loading capacity:
-
2-3T
-
Power of engine:
-
39kw
-
Work speed:
-
3-5km/h
-
Drive mode:
-
Bilateral wheel

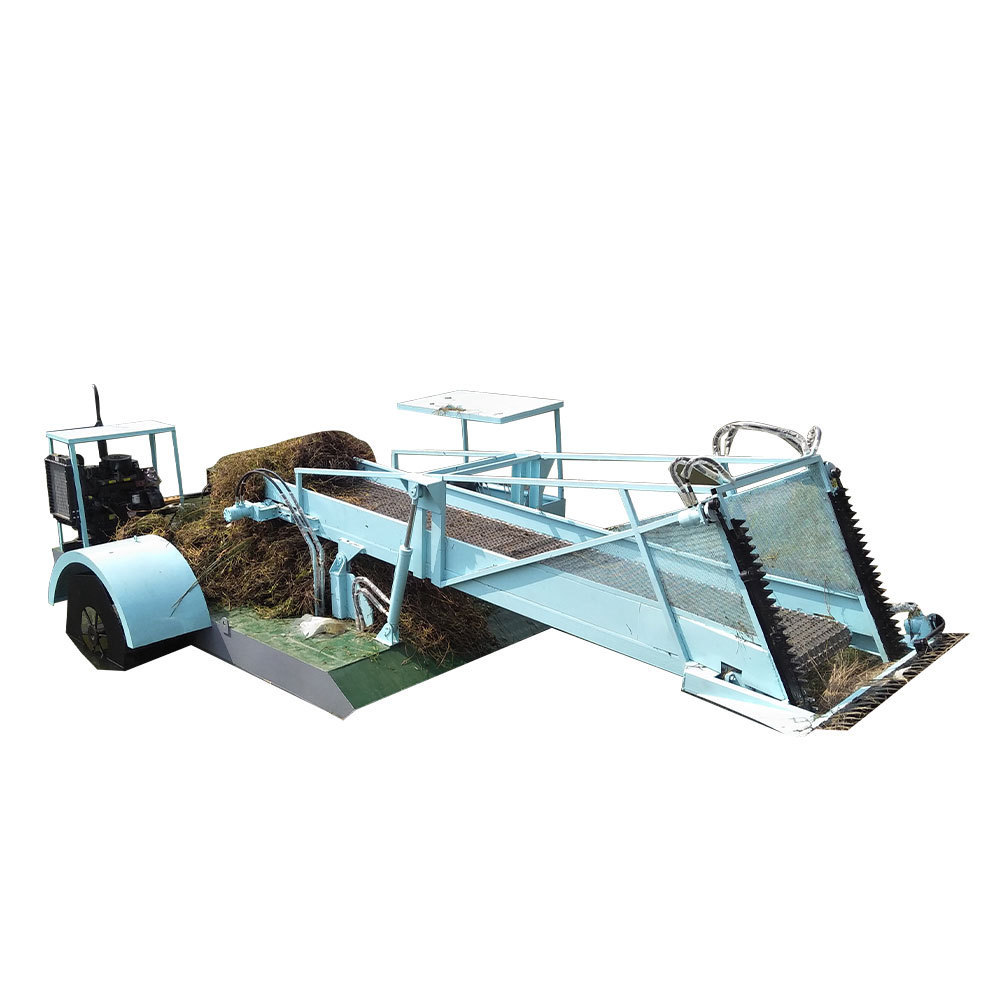

Easy to Use Semi Automatic River Pond Cleaning Machine for Aquatic Plants Harvester
1. The ship is mainly used for salvage of garbage and floating objects in rivers and lakes, and the salvage garbage and floating objects can be automatically unloaded to the designated shore dock and garbage truck .
2. The ship has a two-compartmen structure, and the collecting bin is installed in the front section of the ship. According to the situation of garbage, the fishing depth can be adjusted freely , and the two ends of the collecting tank are mechanical swing arms, which can swing left and right to expand the cleaning area.
3. The middle compartment is a storage and unloading compartment, which can store the collected garbage and floating objects. After the ship reaches the shore, the middle compartment can be lifted up to unload the garbage by rotating the conveyor belt.
4. The ship salvage range is large, elegant and beautiful, low noise, low fuel consumption, safe and simple operation, high degree of automation, ca an effectively clean the river.
PARAMETERS
|
The total length of hull |
8.5m |
|
The hull is long |
6m |
|
Width of hull |
2.8m |
|
The hull is highly |
0.8m |
|
No load draft |
0.3-0.4m |
|
Load draught |
0.4-0.5m |
|
Collect the depth |
≤1.8m |
|
Collect the width |
≤2m |
|
Loading capacity |
2-3T |
|
Power of engine |
39kw |
|
Sailing speed |
5-20km/h |
|
Work speed |
3-5km/h |
|
Endurance |
12h |
|
Drive mode |
Bilateral wheel |
|
Discharge height |
≤3m |
