Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Abluetech
-
Operating Temperature:
-
-40~ +85
-
IC:
-
NRF52805
-
Supply Voltage:
-
1.7~3.6V
-
Module size:
-
15*15mm
-
Frequency:
-
2.360-2.500GHz
-
Multipotocol support:
-
BLE5.0/ANT/2.4G
-
Flash:
-
192KB
-
I/O Count:
-
10
-
Transmission Distance:
-
80m@BLE
-
Certifications:
-
FCC/BQB/CE
Quick Details
-
Chipset:
-
nRF52805
-
Application:
-
Bluetooth beacon
-
Model Number:
-
PTR5605
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Abluetech
-
Operating Temperature:
-
-40~ +85
-
IC:
-
NRF52805
-
Supply Voltage:
-
1.7~3.6V
-
Module size:
-
15*15mm
-
Frequency:
-
2.360-2.500GHz
-
Multipotocol support:
-
BLE5.0/ANT/2.4G
-
Flash:
-
192KB
-
I/O Count:
-
10
-
Transmission Distance:
-
80m@BLE
-
Certifications:
-
FCC/BQB/CE

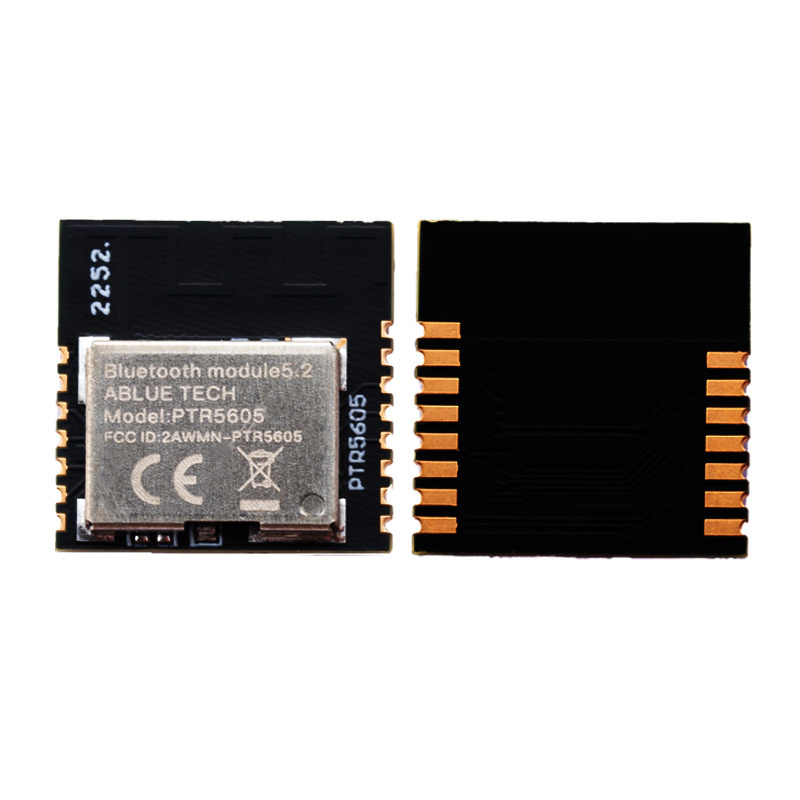

Product Paramenters
|
Model
|
PTR5605
|
|
Chipset
|
Nordic nRF52805
|
|
Bluetooth
|
BLE 5.0
|
|
Dimension
|
15*15*1.6mm
|
|
Antenna Type
|
PCB Antenna
|
|
Support Protocol
|
BLE 5.0/ 2.4GHz/ ANT
|
|
Transmit Power
|
-20~+4 dBm
|
|
Flash/Ram
|
192KB/24KB
|
|
Receiver sensitivity
|
-95 dBm (BLE mode)
|
|
RX
|
4.6 mA
|
|
TX
|
4.6 mA
|
|
GPIO
|
10
|
|
Power Supply
|
1.7~3.6V
|
|
Operating Temperature
|
-25~+85 °C
|
Product Feature
|
1
|
System on Module(SOM) base on Nordic nRF52805
|
|
2
|
Bluetooth Low Energy/ANT/2.4GHz Proprietary Multi-protocol support
|
|
3
|
Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 5.x )
|
|
4
|
ARM Cortex M4 32 bit processor,192kB flash memory ,24kB RAM
|
|
5
|
10 General Purpose I/O ,Configurable mapping Pins ,Simple layout of external application
|
|
6
|
12-bit/200KSPS ADC ,SPI
|
|
7
|
Random Number Generator
|
|
8
|
2-wire (I2C Compatible)
|
|
9
|
128-bit AES HW encryption
|
|
10
|
UART(CTS/RTS and DMA)
|
|
11
|
CPU Independent Programmable Peripheral Interconnect(PPI)
|
|
12
|
3×32bit Timer, 2×24bit Real Timer Counters(RTC),Watchdog Timer
|
|
13
|
Internal RC Oscillator 32.768kHz(±250ppm),No external components required.
|
|
14
|
Ultra small size (smaller than CR2032 coin battery,about 15mm*15mm*1.6mm with Antenna
|
Typical Applications
|
1
|
2.4 GHz Bluetooth low energy systems
|
|
2
|
Proprietary 2.4 GHz systems
|
|
3
|
Sports and leisure equipment
|
|
4
|
Mobile phone accessories
|
|
5
|
Health Care and Medica
|
|
6
|
Consumer Electronics, Game pads
|
|
7
|
Human Interface Devices, Remote control
|
|
8
|
Building environment control / monitoring
|
|
9
|
Ibeacon/Eddystone
|
Recommend Products
What can we offer
About our company
Product packaging
FAQ
1 what can you buy from us?
Wireless Communication Module,wifi module ,bluetooth module,ble wifi gateway,bluetooth beacon.
2 how can we guarantee quality?
100% pre-production sample before mass production and 100% final inspection before shipment.
3 Can you do the customize product?
Yes we can customize the PCBA enclosure.
4 Can you do the customize firmware?
Yes, we can.
5 Can you do ODM or OEM for us?
We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
6 Can we do the preprogramable on the device?
Yes, you can.
7 Can customize the product by our own brand?
Yes, we can.
8 What’s the MOQ for the existed product?
We don’t have MOQ for existed product.
