Quick Details
-
Screw Speed (rpm):
-
34.8 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEVENSTARS
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Weight:
-
20 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor:
-
SIEMENS Brand
-
Electric element:
-
Siemens Brand
-
Raw material:
-
Mixed PVC Powder
-
final Product:
-
PVC pipes
-
mould:
-
one mould four output
-
mould material:
-
40Cr
-
Automatic Grade:
-
Fully Automatic
-
Power(W):
-
55kw
-
Certification:
-
CE ISO9001
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
33:1
-
Screw diameter (mm):
-
160 mm
-
Screw Speed (rpm):
-
34.8 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEVENSTARS
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Weight:
-
20 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor:
-
SIEMENS Brand
-
Electric element:
-
Siemens Brand
-
Raw material:
-
Mixed PVC Powder
-
final Product:
-
PVC pipes
-
mould:
-
one mould four output
-
mould material:
-
40Cr
-
Automatic Grade:
-
Fully Automatic
-
Power(W):
-
55kw
-
Certification:
-
CE ISO9001
Product Description
Features of pvc pipe extruder machine:
1. Ensuring long-time stable operation & long service life
2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation
3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.
4. Siemens PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.
1. Ensuring long-time stable operation & long service life
2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation
3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.
4. Siemens PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.
|
Diameter
|
16-40
|
20-63
|
50-160
|
75-250
|
110-315
|
160-450
|
315-630
|
|
Diameter of screw
|
51/105
|
65/132
|
65/132
|
80/156
|
80/156
|
92/188
|
92/188
|
|
Main power
|
18.5
|
37
|
37
|
55
|
55
|
110
|
110
|
|
Heating zone
|
13KW*4
|
28KW*4
|
28KW*4
|
39KW*4
|
39KW*4
|
45KW*4
|
45KW*4
|
|
Vacuum power
|
2.2KW*2
|
2.2KW*2
|
2.2KW*2
|
3KW*2
|
4KW*2
|
4KW*2
|
5.5KW*2
|
|
Capacity
|
100-120
|
150-200
|
180-250
|
250-350
|
300-400
|
500-600
|
600-700
|
|
|
|
|
|
|
|
|
|

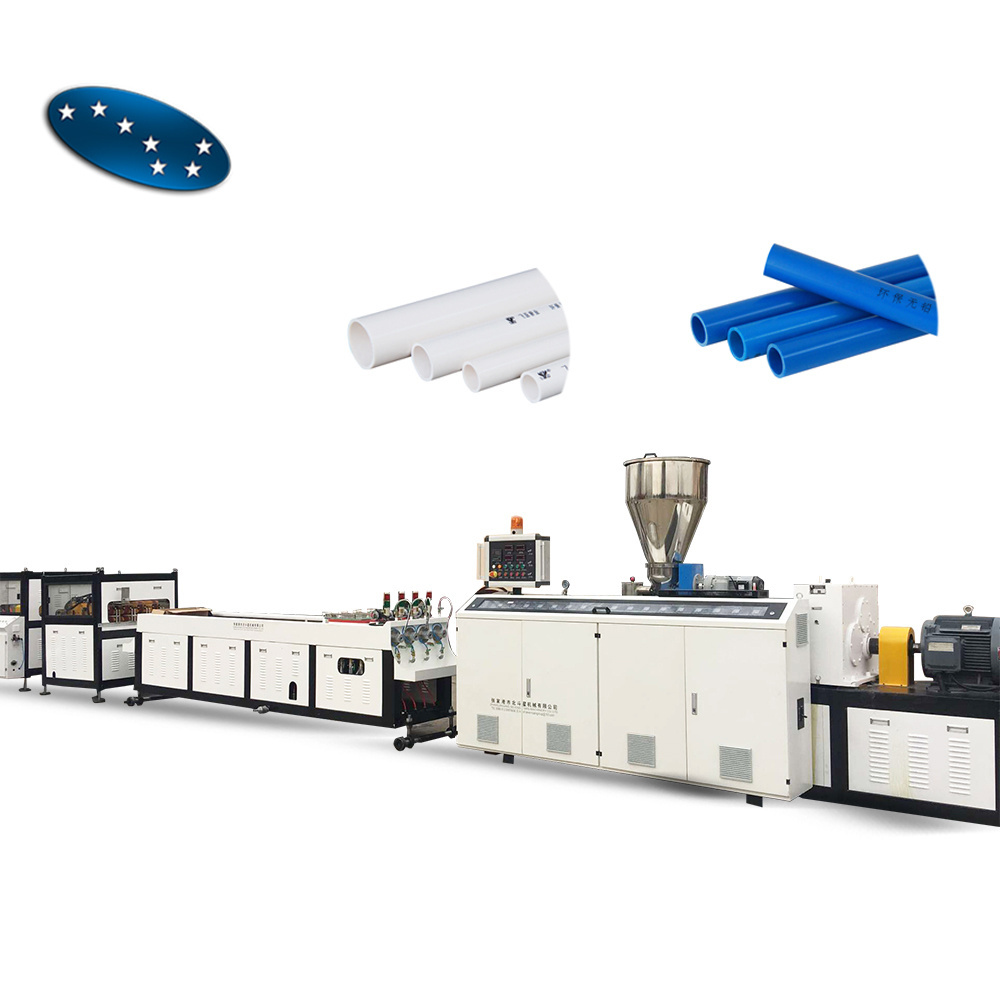

PVC double-pipe production line
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
Specification
|
No.
|
ITEM
|
BRAND
|
|
1
|
Motors
|
Siemens brand in China
|
|
2
|
PLC
|
SIMENS 200 series
|
|
3
|
Interface module
|
SIMENS
|
|
4
|
Touch screen
|
SIMENS (10 inch)
|
|
5
|
Low voltage electrical equipments
|
SIMENS&SCHNEIDER
|
|
6
|
Inverter
|
ABB
|
|
7
|
Temperature control system
|
OMRON
|
