Quick Details
-
Brand Name:
-
FMXK
-
Voltage:
-
380v
-
Power:
-
75KW/Chain
-
Dimension(L*W*H):
-
According to the line
-
Weight (KG):
-
500000
-
Powder:
-
75KW/Strand
-
Radius:
-
R4-10
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
billet section:
-
100-300mm
-
strands:
-
1-10
-
billet length:
-
2-12m
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Machine Type:
-
Steel Continuous Casting Machine
-
Marketing Type:
-
Conventional products
-
Brand Name:
-
FMXK
-
Voltage:
-
380v
-
Power:
-
75KW/Chain
-
Dimension(L*W*H):
-
According to the line
-
Weight (KG):
-
500000
-
Powder:
-
75KW/Strand
-
Radius:
-
R4-10
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
billet section:
-
100-300mm
-
strands:
-
1-10
-
billet length:
-
2-12m
Product Description:

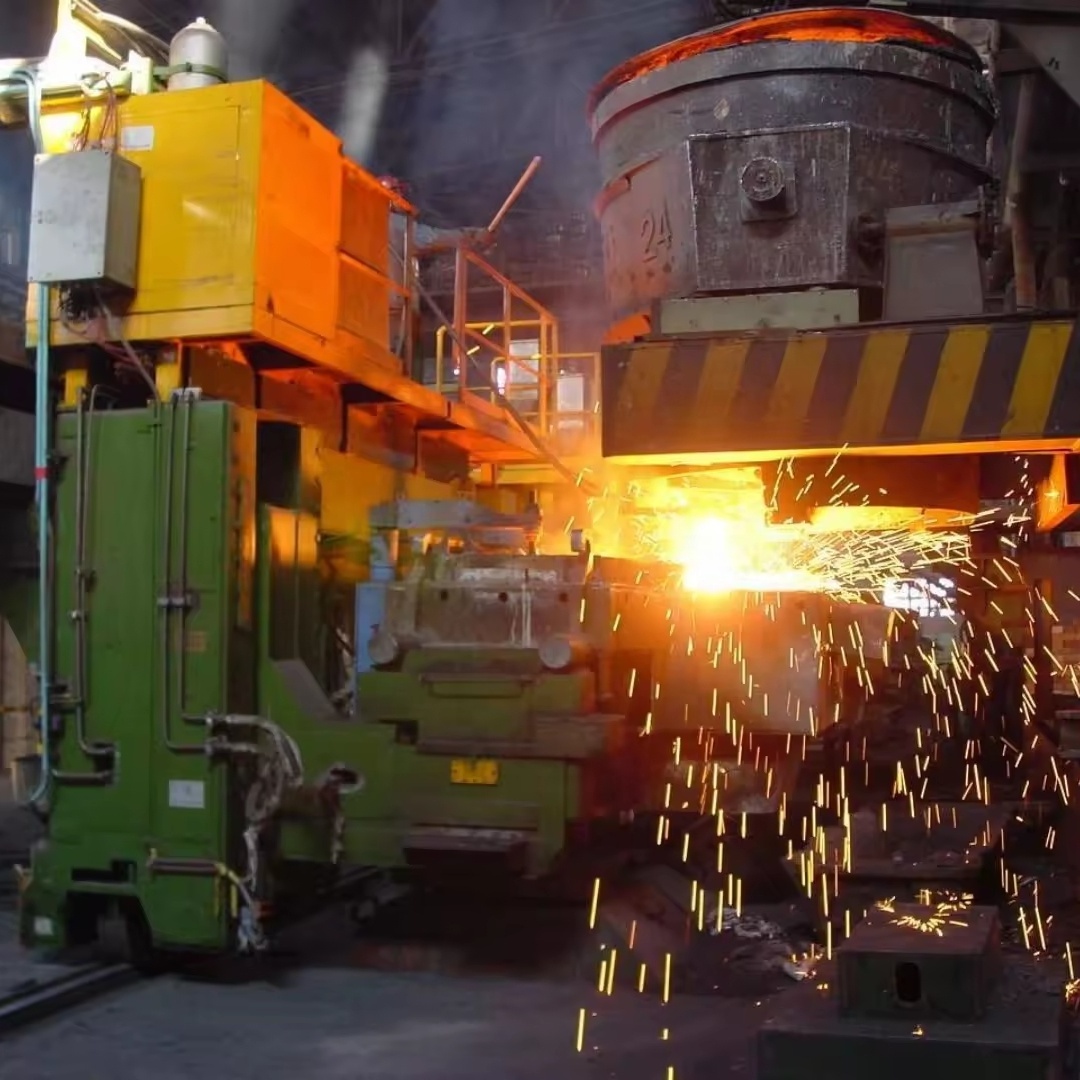

Continue Casting Machine (CCM)
Rigid dummy bar arc CCM/flexible dummy bar arc CCM
Technical features of CCM:
Ladle supporting: turret/ladle car.
Tundish car: half-suspending type/suspending type.
Mould: integrated copper pipe/parabolic taper.
Control of strand: cesium-source liquid level automatic control.
Vibration mode: whole leaf-spring/half leaf-spring/sine/non-sine.
Secondary cooling way: automatic cooling water distribution in aerosol/whole cooling water distribution.
Straightening mode: 5-roll continuous strengthening in full arc/AC variable frequency speed regulation.
Dummy bar type: self-adaptive rigid dummy bar.
Cutting mode: automatic narrow-seam high efficient flame cutting machine/hydraulic shear.
Steel shifting mode: mechanical overhead structure.
Control mode: all PLC control/quick shifting between manual mode and automation mode.
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 60 days, it is according to quantity requires.
Q:What is the term of payment?
A: Payment <=1000USD, 100% in advance. Payment >=1000USD, 30% T/T in advance, balance before shipment.
Q:Do you have any Oversea Project?
A: Yes, we have service over 20 countries for their Plant set up Project.
If you are interested in this equipment, please don't hesitate to contact us!
If the machine is not suitable for your plant, please e-mail us the following information::
1. What’s the quality standard of billet do you want to casting? Is it common carbon steel or low carbon steel?
2. What’s the billet size and length?
3. Do you have melting furnace? If yes, how many tons of furnace with how many quantity?
4. What’s the capacity per hour?
According to your information, we will offer high efficiency design and best price for it.
