Quick Details
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
Depends on model
-
Weight:
-
Depends on model
-
Keywords:
-
Flotation processing machine
-
After-sales Service Provided:
-
Overseas service center available, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Installation:
-
Engineer's Guide
-
Color:
-
Customerized
-
After sale service:
-
Engineer Avalable
-
Application:
-
Gold, copper, zinc, coal stone,talc
-
Usage:
-
Mining Concentration
-
Capacity:
-
0.2-38 M3/Min
-
Machine type:
-
Flotation type
-
Advantage:
-
High Separation Efficiency
-
Certification:
-
ISO9001 CE
Quick Details
-
Production Capacity:
-
0.2-38 M3/Min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongke
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
Depends on model
-
Weight:
-
Depends on model
-
Keywords:
-
Flotation processing machine
-
After-sales Service Provided:
-
Overseas service center available, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Installation:
-
Engineer's Guide
-
Color:
-
Customerized
-
After sale service:
-
Engineer Avalable
-
Application:
-
Gold, copper, zinc, coal stone,talc
-
Usage:
-
Mining Concentration
-
Capacity:
-
0.2-38 M3/Min
-
Machine type:
-
Flotation type
-
Advantage:
-
High Separation Efficiency
-
Certification:
-
ISO9001 CE

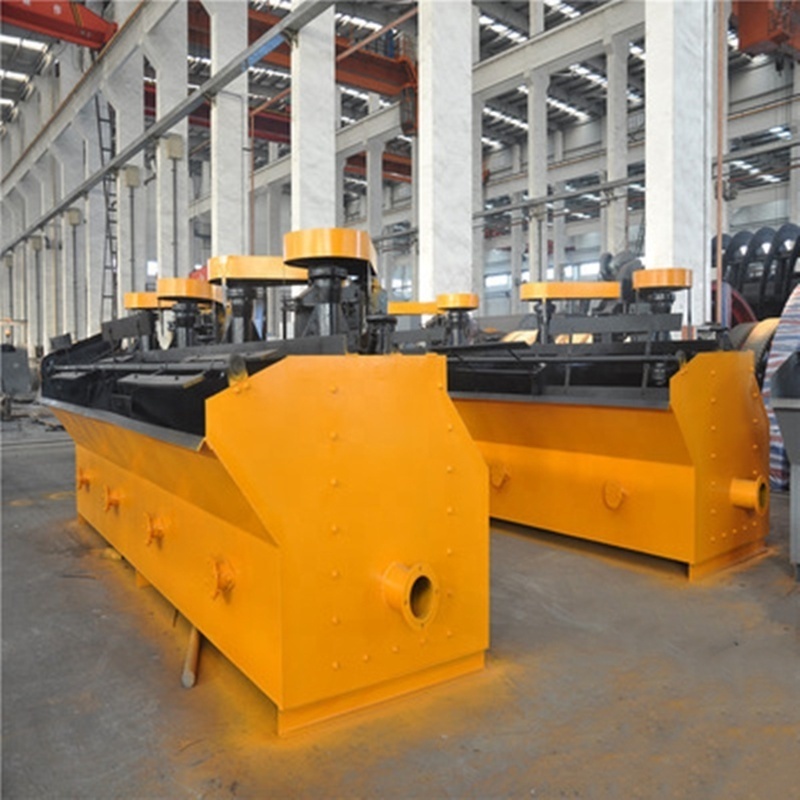

High Efficiency KYF/SF Flotation Machine Flotation Separator Equipment Ore Flotation Processing Machine Plant
Product Overview
Flotation Processing Machine
is composed of slurry tank, mixing device, inflatable device, discharge mineralized bubble device, motor and so on.
Flotation Processing Machine
is suitable for the selection of coal stone, talc and other materials. In addition, according to statistics, more than 90% of non-ferrous minerals are treated by flotation machines, as well as the coarse separation and selection of ferrous, precious and non-metallic minerals.
At the same time, the purification of water quality has been widely used. Therefore, flotation machine get more attention to the equipment in flotation, mineral processing and other production process. Compared with other equipment methods, flotation machine is more economical and reasonable, and the effect is very good.
Working Principle of
Flotation Processing Machine
In the stirred flotation machine, with the rotation of the impeller, the slurry in the tank is sucked from the lower end of the impeller to the impeller blade from around the bottom of the groove. At the same time, the low pressure air from the blower passes through the air distributor of the hollow shaft and impeller. After the slurry and air are fully mixed between the blades, they are pushed from the upper half of the impeller to the peripheral syncline, and the stator stabilizes and orientates into the whole slot. The bubble rises to the stable zone of the foam. After the enrichment process, the foam overflows from the overflow Weir and enters the foam tank. A part of the slurry flows to the lower part of the impeller, then stirred by the impeller, remixed to form a mineralized bubble, and the remaining slurry flows to the next Trough until it becomes tailings.
FEATURES AT A GLANCE
1. Separation precision is high, the clean coal ash content is low, the yield is high, especially for the difficult coal separation more obvious advantage, the clean coal ash content is 1~2% lower than the conventional mechanical stirring flotation machine ;
2. Treatment capacity is large, unit volume treatment capacity is 2~3 times than that of conventional flotation machine;
3.The operation cost is low, compared with the conventional mechanical mixing flotation machine can save 1/3~1/2;
4. Impeller with rear tilting double-sided blade, can realize double circulation of slurry in tank;
5. Large suction volume, forward tilt groove, small dead angle, fast foam movement;
6. Impeller circumference speed is low, impeller cover plate life is long, the slurry carries on the upper and lower double
circulation according to the fixed way, is good for the coarse grain mineral suspension;
7. Operation is simple and automation is high.
2. Treatment capacity is large, unit volume treatment capacity is 2~3 times than that of conventional flotation machine;
3.The operation cost is low, compared with the conventional mechanical mixing flotation machine can save 1/3~1/2;
4. Impeller with rear tilting double-sided blade, can realize double circulation of slurry in tank;
5. Large suction volume, forward tilt groove, small dead angle, fast foam movement;
6. Impeller circumference speed is low, impeller cover plate life is long, the slurry carries on the upper and lower double
circulation according to the fixed way, is good for the coarse grain mineral suspension;
7. Operation is simple and automation is high.
PRODUCT SPECIFICATIONS
|
Model
|
|
KYF-1
|
KYF-2
|
KYF-3
|
KYF-4
|
KYF-8
|
KYF-16
|
KYF-24
|
KYF-38
|
|
|
Tank Size
|
L(mm)
|
1000
|
1300
|
1600
|
1800
|
2200
|
2800
|
3100
|
3600
|
|
|
|
W(mm)
|
1000
|
1300
|
1600
|
1800
|
2200
|
2800
|
3100
|
3600
|
|
|
|
H(mm)
|
1100
|
1250
|
1400
|
1500
|
1950
|
2400
|
2900
|
3400
|
|
|
Weight（kg）
|
|
1056
|
1419
|
1885
|
2206
|
3600
|
5900
|
9830
|
15097
|
|
|
Effective Volume(m3)
|
|
1
|
2
|
3
|
4
|
8
|
16
|
24
|
38
|
|
|
Production capacity (based on slurry volume)(m3/min)
|
|
0.2-1
|
0.4-2
|
0.6-3
|
1.2-4
|
3—8
|
4—16
|
4—24
|
10—38
|
|
|
Main shaft motor
|
Model
|
Y132M1-6
|
Y160M2-8
|
Y160L-8
|
Y180L-8
|
Y200L-8
|
Y250M-8
|
Y250M-8
|
Y280S-8
|
|
|
|
Power
(kw)
|
4
|
5.5
|
7.5
|
11
|
15
|
30
|
30
|
37
|
|
|
|
Speed
(r/min)
|
960
|
720
|
720
|
970
|
730
|
730
|
730
|
740
|
|
|
Impeller
|
Dia.(mm)
|
340
|
410
|
480
|
550
|
630
|
740
|
800
|
880
|
|
|
|
H(mm)
|
215
|
256
|
300
|
340
|
390
|
460
|
—
|
545
|
|
|
|
Speed
(r/min)
|
281
|
247
|
219
|
200
|
175
|
160
|
150
|
138
|
|
|
|
Circular Velocity
(m/s) |
5
|
5.3
|
5.5
|
5.76
|
5.77
|
6.7
|
6.25
|
6.36
|
|
|
Scraper motor
|
Model
|
Y90S-4
|
Y90S-4
|
Y90L-4
|
Y90L-4
|
Y90L-4
|
Y90L-4
|
Y90L-4
|
Y90L-4
|
|
|
|
Power
(kw)
|
1.1
|
1.1
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Successful Project
Delivery and Packing
Company Introduction
Henan Hongke Heavy Machinery Co., Ltd.
is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on,
such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln,
metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line,
mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.
We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to
cooperatingwith you!
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on,
such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln,
metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line,
mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.
We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to
cooperatingwith you!
FAQ
A; we can send our technician to your work site to make basement construction.
B; we can send our workers to your work site to make the plant installation.
C; we guarantee our kilns can produce the qualified products by your requirements.
D; we can offer all drawings of the plant.
E; we guarantee the best whole life after-sales.
Welcome for your inquire and visit!
B; we can send our workers to your work site to make the plant installation.
C; we guarantee our kilns can produce the qualified products by your requirements.
D; we can offer all drawings of the plant.
E; we guarantee the best whole life after-sales.
Welcome for your inquire and visit!
