Quick Details
-
Brand Name:
-
ARLIT
-
Product Name:
-
20inch pp pleated cartridge filter
-
Medium Material:
-
PP
-
style:
-
20inch PP micron pleated cartridge filter
-
Diameter:
-
69mm
-
Inner diamete:
-
34mm
-
Cage & End caps:
-
Polypropylene (PP)
-
Length:
-
5/10/20/30/40/50 inch
-
Micron ratings:
-
0.1/0.22/0.45/0.65/1/3/5/10/30/50/60 um
-
Interface:
-
DOE, SOE, 222/flat, 222/fins, 226/flat, 226/fins
-
Application industry:
-
Food, Electronics, Chemical, Water treatment
Quick Details
-
Weight (KG):
-
0.3
-
Core Components:
-
PP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ARLIT
-
Product Name:
-
20inch pp pleated cartridge filter
-
Medium Material:
-
PP
-
style:
-
20inch PP micron pleated cartridge filter
-
Diameter:
-
69mm
-
Inner diamete:
-
34mm
-
Cage & End caps:
-
Polypropylene (PP)
-
Length:
-
5/10/20/30/40/50 inch
-
Micron ratings:
-
0.1/0.22/0.45/0.65/1/3/5/10/30/50/60 um
-
Interface:
-
DOE, SOE, 222/flat, 222/fins, 226/flat, 226/fins
-
Application industry:
-
Food, Electronics, Chemical, Water treatment
Details Images

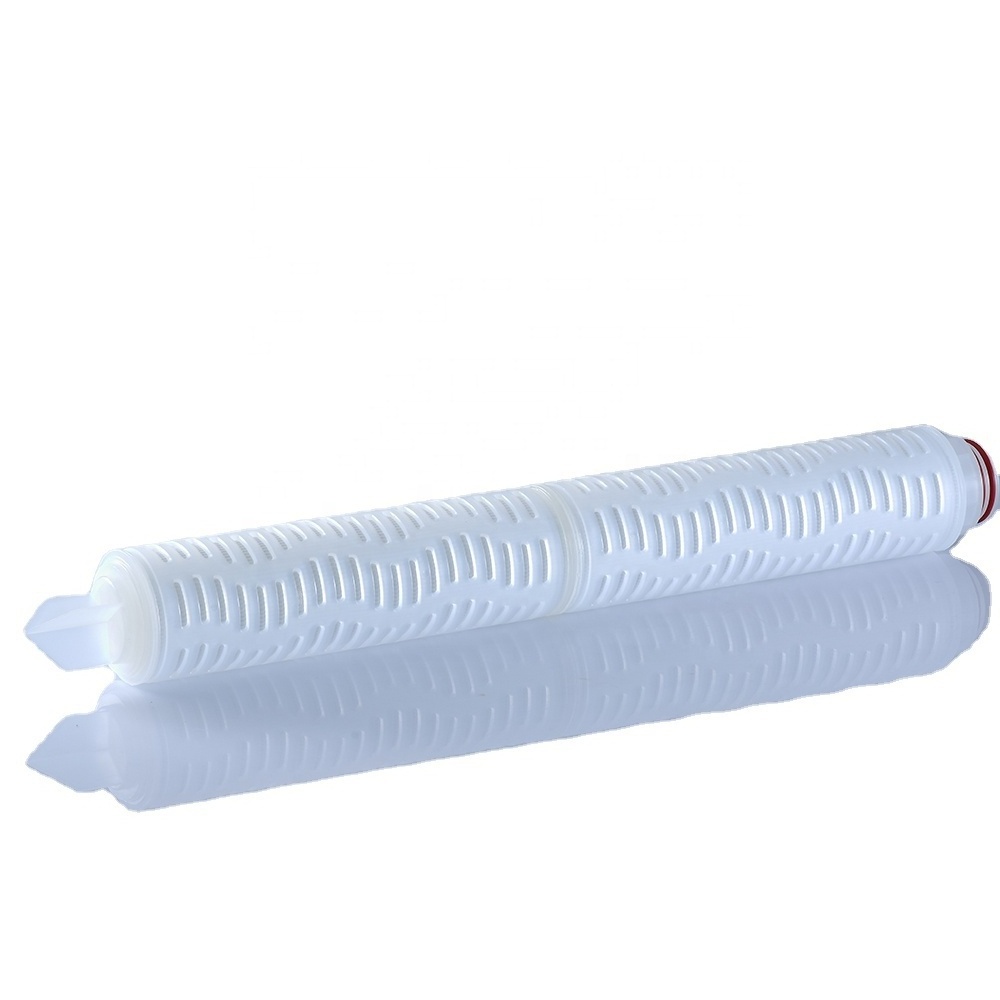

20inch pp pleated cartridge filter/polypropylene membrane Folded filter cartridge
Production Introduction
The filtration media of PP micropore filter cartridge is superfine PP fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1μm to 60μm. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life feature. The structure of PP has stable performance and wide chemical compatibility.
The filtration media of PP micropore filter cartridge is superfine PP fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1μm to 60μm. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life feature. The structure of PP has stable performance and wide chemical compatibility.
Specification
|
Filter medium
|
Polypropylene (PP)
|
|
Support layer
|
Polypropylene (PP)
|
|
Filter cage
|
Polypropylene (PP)
|
|
Pore size
|
0.1,0.2,0.45,0.65,1,3,5,10,20,30,60µm
|
|
Length
|
10/20/30/40 inches
|
|
OD/ID
|
69 mm
|
|
Gasket / O - rings
|
Silicone, NBR, EPDM, Viton
|
|
Interface
|
DOE,215,222,226flat/fins
|
|
End caps
|
DOE,0050,0050A,0050B
|
|
Sealing method
|
thermal bonding technique
|
|
Effective filtration area
|
0.4 - 0.7 sqm/10"
|
|
8Max. operating temperature
|
140℃, 0.28 Mpa
|
|
Max. forwarder differential pressure
|
0.42 Mpa (25℃)
|
|
Max. reverse differential pressure
|
0.28 Mpa (25℃)
|
|
Sterilizing temperature
|
121℃ 30min
|
|
Others
|
special requirement of diameter and end caps can be customized.
|
Typical Applications
Medical industry: filtration for medical liquid, cell debris, biologicals
Chemical industry: filtration for organic solvent, chemical reagent, electroplate liquid, ink.Food industry: drinking water,
mineral water, beverage, beer, wine
Electronic industry: pre-filtration on water system both for counter infiltration, deionized water
Gas filtration: compressed air, nitrogen, carbon dioxide
Others: photoresist, magnetic media
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Chemical industry: filtration for organic solvent, chemical reagent, electroplate liquid, ink.Food industry: drinking water,
mineral water, beverage, beer, wine
Electronic industry: pre-filtration on water system both for counter infiltration, deionized water
Gas filtration: compressed air, nitrogen, carbon dioxide
Others: photoresist, magnetic media
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
|
Micro rating (μm)
|
0.1
|
0.2
|
0.45
|
0.65
|
1
|
3
|
5
|
10
|
|
55Flow rate (L/min)
|
5
|
15
|
40
|
55
|
60
|
65
|
67
|
70
|
Our services
1.We are a manufacture,can offer competitive prices.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
