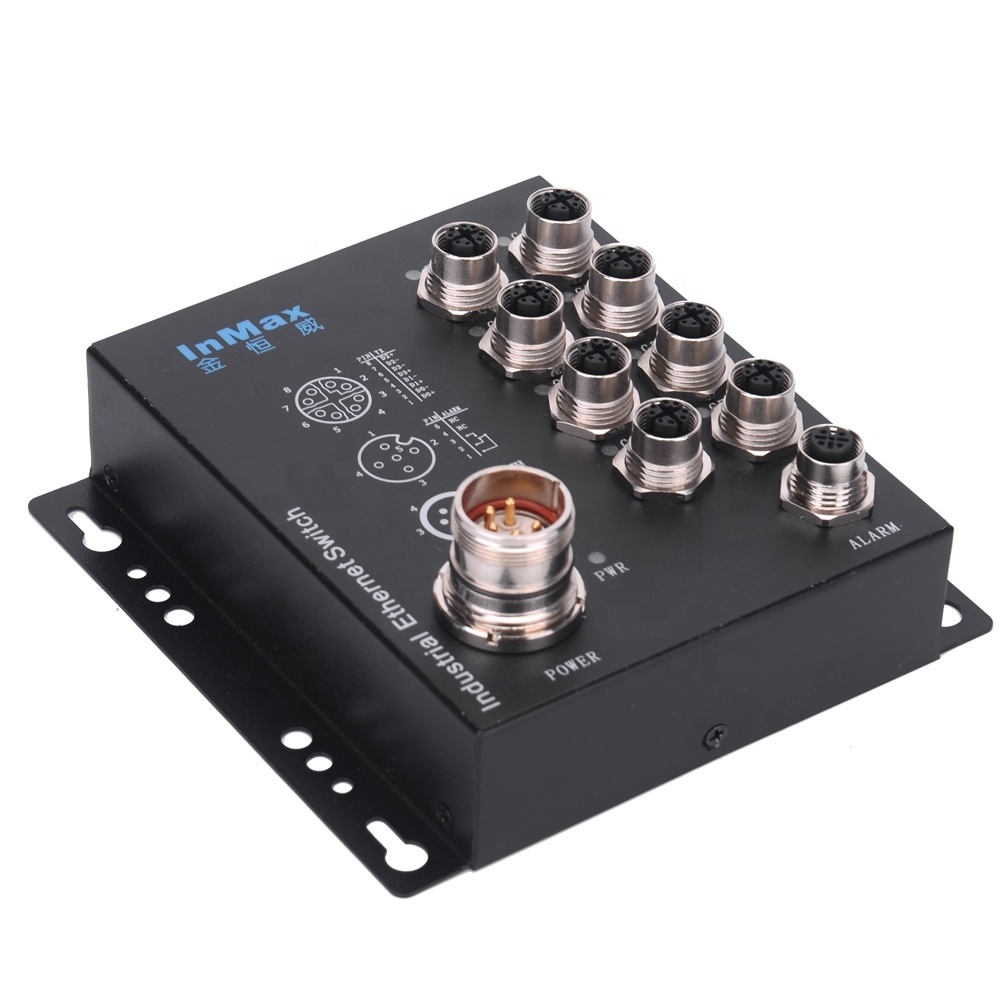

InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch
InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch

InMax Manufacturer M12 switch 8 port x-code En50155 railway metro vehicle on-board 48V 110V gigabit rugged industrial switch

FOB Reference Price: Get Latest Price
≥2 Pieces
US $560
≥10 Pieces
US $510
≥100 Pieces
US $480
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
InMax
Model Number:
M508A
Place of Origin:
Guangdong, China
M12Railway Ethernet Switch:
M12Railway Ethernet Switch
M12 Switch:
M12 Switch
M12 Metro Ethernet Switch:
M12 Metro Ethernet Switch
Wide Temp. Models:
-40 ~ +75°C
M12 8Pin:
X-coded
M23:
6Pin
railroad projects:
railroad projects
industrial Ethernet switch:
industrial Ethernet switch
M12 industrial Ethernet switch:
M12 industrial Ethernet switch
Certification:
FCC CE RoHS

Quick Details

Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
12G
Brand Name:
InMax
Model Number:
M508A
Place of Origin:
Guangdong, China
M12Railway Ethernet Switch:
M12Railway Ethernet Switch
M12 Switch:
M12 Switch
M12 Metro Ethernet Switch:
M12 Metro Ethernet Switch
Wide Temp. Models:
-40 ~ +75°C
M12 8Pin:
X-coded
M23:
6Pin
railroad projects:
railroad projects
industrial Ethernet switch:
industrial Ethernet switch
M12 industrial Ethernet switch:
M12 industrial Ethernet switch
Certification:
FCC CE RoHS
Product Description

◎ Meet the EN50155 railway industry standard requirements. Designed for rail transportation applications.
◎ With 8×10/100/1000M M12 ports.
◎ Optional function: bypass function(2 ports).
◎ Redundant dual 110VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
◎ -40 to 75℃ operating temperature range (WT models)
◎ No fan, low consumption, industrial design standard, industrial grade electronic components, environmental protection & lead-free production.
◎ Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
◎ IP Rating up to IP40
◎ Without packet loss in 72 hours full load flow test.

Introduction

The M508A series M12 Gigabit Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The M508A series Ethernet switches provide 8 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10 / 100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.

No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.

It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.

Product Name
M12 8 Port Gigabit Railway Industrial Ethernet Switch
M12 Ports
M12-8Pin X-Coded 1000M Gigabit connector
M23 Power Port
M23-6Pin Power port connector
Input Voltage
110 VDC (40 ~ 160 VDC)
IP Rating
IP40
Dimension
144 × 140 × 34 mm
Weight
900g
Operating Temperature
-40 to 75℃
Products Show
Our Service

High quality

ODM DB9 railway switch board

High quality

ODM M12 bus switch board

High quality

110VDC railway gigabit switch board

Optional Accessories

M12 A-code (8-Pin male)

10/100/1000 BASE-T RJ45 Interface, customized- length

M12 X-code (8-pin male)

10/100/1000 BASE-T RJ45 Interface, customized- length

M12 D-code (4-pin male)

10/100 BASE-T RJ45 Interface, customized- length

M12 A-code

(8-Pin male)Connector

M12 A-code (8-pin male) Quick Connector

M12 X-code

(8-pin male)Connector

M12 X-code (8-pin male) Quick Connector

M23

(6-pin Female)Connector

M23(6-pin male) Quick Connector

Our Company

Office

Our office



Workshop

Our Workshop



Packing & Delivery

Packing Details: 1pcs/box, 6 pcs/carton, size:36x34.7x21.5cm/carton , G.W:6kg/carton


Delivery Details : 3-5 days for samples if we have stock, 2-6 weeks for mass order

Our Certifications
InMax Fair Photo

Shenzhen InMax Technologies Co., Ltd. has participated in (CPSE 2017) the 16th China Public Security Expo successfully.

In 2017, the global focus on the 16th China Public Security Expo (CPSE), which is held in Shenzhen Exhibition Center. Shenzhen
Shenzhen InMax Technologies Co., Ltd. has launched a series of professional industrial Ethernet switches, to offer service to the safety city, smart city, intelligent transportation, and networking solutions.


InMax participated in the 6th Shenzhen International Intelligent Transportation Exhibition (ITS 2017), got a complete success!

InMax participated in this ITS fair, mainly to show the latest released rail vehicle industry Ethernet switches which meet the standard EN50155, and provided professional network communication solutions.
InMax network communication equipment are being widely used in urban road construction and vehicle communication data transmission in major cities.
