Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
UHC,UHZ
-
Product name:
-
level gauge
-
Measuring Range:
-
300 ~ 19000mm
-
max pressure:
-
1.6MPa, 2.5MPa, 4.0MPa
-
application:
-
water tank
-
Process connection:
-
flange DN25 DN50 DN100
-
Output:
-
4-20mA Output
-
Protection Grade:
-
IP65
-
connection:
-
Side-mounted, roof-mounted, bottom-mounted
-
proof grade:
-
ib ii CT4 (intrinsically safe), dii BT3 (flameproof)
-
Material:
-
SS304
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
OEM
-
Model Number:
-
UHC,UHZ
-
Product name:
-
level gauge
-
Measuring Range:
-
300 ~ 19000mm
-
max pressure:
-
1.6MPa, 2.5MPa, 4.0MPa
-
application:
-
water tank
-
Process connection:
-
flange DN25 DN50 DN100
-
Output:
-
4-20mA Output
-
Protection Grade:
-
IP65
-
connection:
-
Side-mounted, roof-mounted, bottom-mounted
-
proof grade:
-
ib ii CT4 (intrinsically safe), dii BT3 (flameproof)
-
Material:
-
SS304

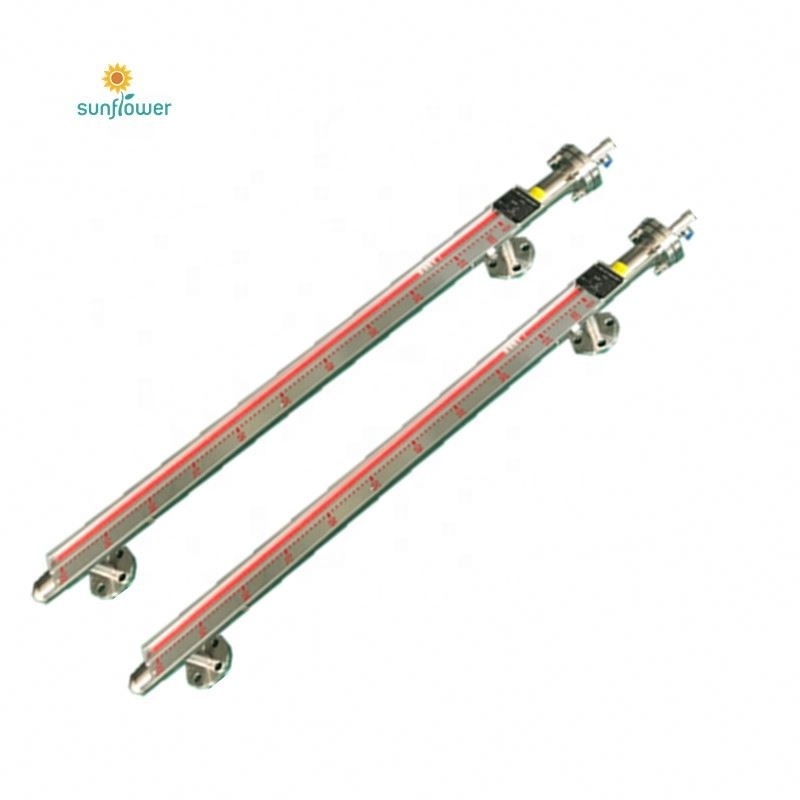

Magnetic Level Indicator
Overview
Lined Type Magnetic Level Indicator uses unique lining technical design, makes lining junction of the buoy and the process connect flange achieve to the best-match condition, effectively avoids corrosion damage made by accidental medium leakage, which is usually caused by extrusion fracture when assembling. Also, it has introduced innovative production and test processes to improve its reliability and quality.
WSFP is mainly used to measure strong corrosive liquid, and, is widely applied to chemical industry, oil refining, storage and transportation, water treatment and other industries.
Features
(1) The lining junction between floating tube and process connection flange uses unique lining technology effectively avoids corrosion damage made by accidental medium leakage, which is caused by extrusion fracture when assembling.
(2) Indicator panel and magnetic flaps uses widened design make visual distance and viewing angle increase greatly, the ruler and its figures are bolder and clearer.
(3) Level of Ingress Protection of IP65 and IP66/67 are available, exceeding national standard requirement of IP54;
(4) A variety of patented lining technique is used and F4/F46 lining buoy is provided, suitable for wider range of corrosive measurement.
(5) Accessory magnetic switches and remote transmitters have got double certifications of Explosion Proof and Intrinsically Safety.
Technical
|
Fluid |
Density |
0.8~2g/cm 3 |
|
Viscosity |
≤200cP |
|
|
Measurement parameters |
Measuring range |
Single section: 200-5600mm
|
|
Accuracy |
±5mm or±10mm |
|
|
Material specifications |
Bouy |
304/316L stainless steel with F4/F46 lining, 57 |
|
Float |
304 with F46 out-lined |
|
|
Indicator panel |
Optional aluminum flap or PA66 nylon flap, and optional cover plate of glass (standard) or acrylic. |
|
|
Operating conditions |
Process pressure |
0~1.6MPa |
|
Process temperature |
Max.120 ℃ |
|
|
Ambient temperature |
-40 ℃ ~80 ℃ |
|
|
Signal output |
Switch |
220VAC 3A, SPDT |
|
Transmitter |
4~20mA |
|
|
Process connection |
Connection type |
Flange, customization |
|
Materials |
304/316L stainless steel with F46 lining |
|
|
End fittings |
Upper vent |
flange |
|
Lower drain |
Flange, also can be configured lined |
|
|
Additional devices |
cryogenic insulation / heat insulation |
Rubber and plastic cotton, asbestos, polyester fiber |
|
Anti-frost |
Used in a occasion that temperature less than -5 ℃ |
|
|
Safety certification |
Protection rating |
IP65,IP66/67 |
|
Explosion-proof |
Ex d IIC T6, Ex ia IIC T6 (magnetic switch and transmitter) |
Application
Mounted in Salt water tanks, lye recycling, dechlorination tower, chlorate decomposition, high purity hydrochloric acid storage tank of ionic membrane electrolyzer.
Applied in Ammonia tank
Monitoring the liquid level of monomer tank at PVC production plan
UHZ Level Sensor Model Table
|
UHZ |
|
With blind flange, no drain valve |
|||||||||
|
|
L |
Bottom drain valve |
|||||||||
|
|
G |
Tri-magnet driven level switch |
|||||||||
|
GH |
High temperature four-magnet driven level switch |
||||||||||
|
|
|
Control points(quantity of level switches) |
|||||||||
|
|
R |
Ltransmitter two wire 4~20mA output |
|||||||||
|
R1 |
LB transmitter HART two-wire 4~20mA output |
||||||||||
|
R2 |
AT200 Magnetostrictive transmitter two-wire 4~20mA output HART |
||||||||||
|
R3 |
AT201 Magnetostrictive transmitter three-wire 4~20mA output HART |
||||||||||
|
R4 |
AT202 High temperature magnetostrictive transmitter output HART |
||||||||||
|
R5 |
AT203 High temperature transmitter three-wire output HART |
||||||||||
|
|
D |
ExdIIBT1~T6 Explosion proof |
|||||||||
|
E |
ExiaIICT1~T6 Intrinsically safe |
||||||||||
|
EF |
Intrinsically safe with barrier |
W |
Wide rollers board |
||||||||
|
|
|
Removable heating jacket |
J2 |
Sleeve type heating jacket |
|||||||
|
J3 |
Coil type heat tracing device |
J4 |
Depth vacuum jacket |
||||||||
|
J5 |
Depth vacuum insulation& compound heating jacket |
||||||||||
|
|
|
Installation height(N/A for side-side mounted level gauge |
|||||||||
|
|
|
(M)Measuring range,mm |
|||||||||
|
|
|
Medium density,kg/m3 |
|||||||||
|
|
Nominal pressure
|
||||||||||
