Quick Details
-
Production Capacity:
-
45-60bags/min
-
Applicable Industries:
-
Other
-
Weight (KG):
-
3000
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Suny
-
Dimension(L*W*H):
-
6350x1050x1950(mm)
-
After-sales Service Provided:
-
Video Technical Support
-
Product name:
-
Toilet Paper Automatic Packing Machine
-
Packing material:
-
CPP
-
Bag type:
-
Fork-type
-
Keyword:
-
Cotton Soft Towel Packing Machine
-
Feature:
-
High Efficiency
-
Sealing type:
-
Hot Sealing
-
Advantage:
-
Servo Motor Control
-
Usage:
-
Premade Bag Packing Filling Machine
-
Model:
-
SYH-590
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Function:
-
Wrapping, Sealing
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Wood
-
Production Capacity:
-
45-60bags/min
-
Applicable Industries:
-
Other
-
Weight (KG):
-
3000
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Suny
-
Dimension(L*W*H):
-
6350x1050x1950(mm)
-
After-sales Service Provided:
-
Video Technical Support
-
Product name:
-
Toilet Paper Automatic Packing Machine
-
Packing material:
-
CPP
-
Bag type:
-
Fork-type
-
Keyword:
-
Cotton Soft Towel Packing Machine
-
Feature:
-
High Efficiency
-
Sealing type:
-
Hot Sealing
-
Advantage:
-
Servo Motor Control
-
Usage:
-
Premade Bag Packing Filling Machine
-
Model:
-
SYH-590
-
Marketing Type:
-
Hot Product 2021

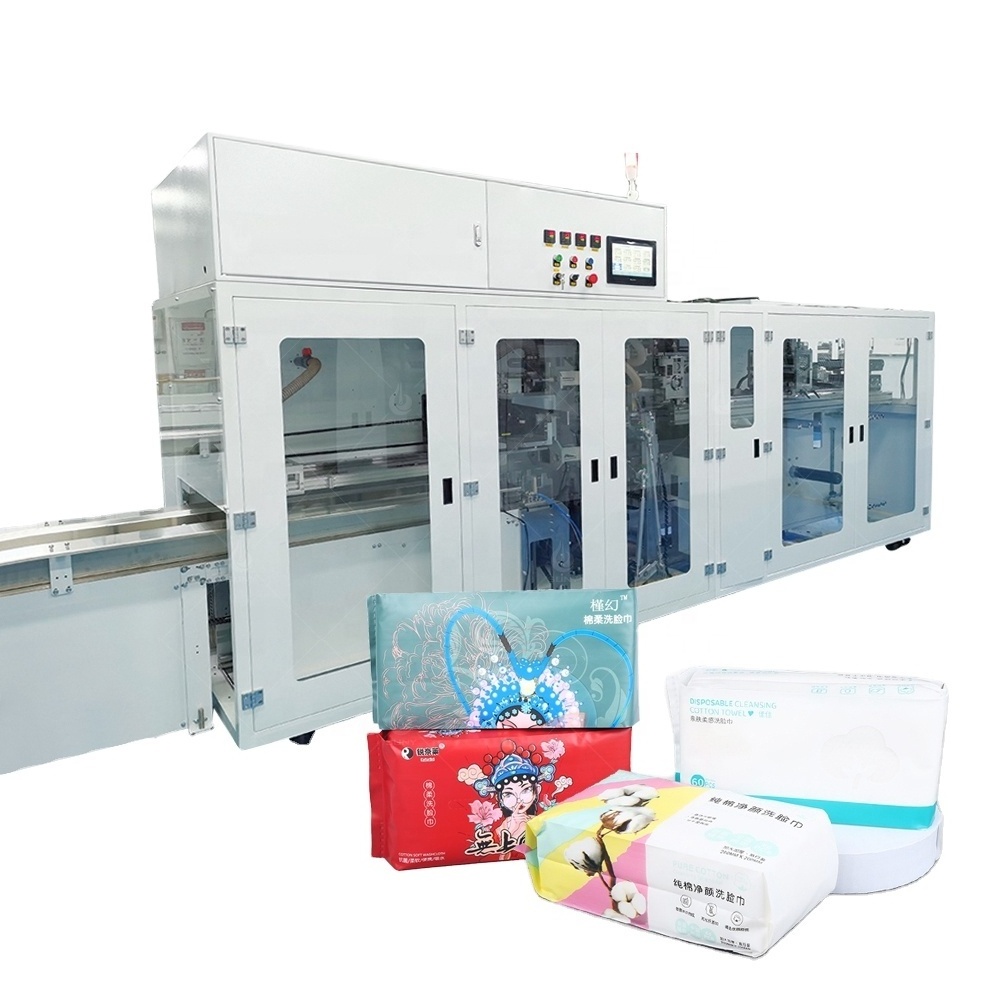

Automatic Multi-function Sanitary Napkin Pad Cotton Soft Towel Packing Machine
1. Cylinder Membrane Model
SYH590 automatic sanitary napkin&pads packaging machine (cylinder membrane)for sanitary
napkins can realize the quantitative automatic bagging packaging for sanitary napkins.
It is composed of the processes of layering feeding,automatic pushing bag roll automatic running,online bag making automatic printing code, automatic bagging, automatic sealing, finished product discharging,
automatic waste suction and so on.
It forms a complete set of production processes of automatic feeding, packaging and discharging.
Parameter
|
Outer Roll Diameter
|
≤φ600mm
|
|
Inner Roll Diameter
|
φ76-φ80mm
|
|
Packing Speed
|
45-60PCS/min (according to product)
|
|
Package Film Thickness
|
0.04-0.08mm
|
|
Package Film Material
|
Double sided heat sealing film (recommended),OPP,Various composite heat sealing films
|
|
Product Packaging Specification
|
Ll00-200mm;W70-110mm;H30-100mm
|
|
Power
|
12.5Kw
|
|
Package Qualification Rate
|
≥98%
|
|
Machine Size
|
6350x1050x1950(mm)
|
|
Supply Power
|
380V 50HZ
|
|
Air Pressure
|
6kg/c㎡, 0.6m³/min
|
|
Net weight
|
≈3000Kg
|
2. Small Packaging Model
SYH590 Automatic diaper (small package)/sanitary napkin/pad packing machine (pre-made bag) can
realize the quantitative automatic bagging packaging for sanitary napkins/pad/cotton tissue.
It is composed of the processes of layering feeding, automatic pushing, precast bag filling automatically
automatic bagging, automatic sealing, finished product discharging, automatic waste suction and
so on. It forms a complete set of production processes of automatic feeding, packaging and discharging.
|
Outer Roll Diameter
|
≤φ600mm
|
|
Inner Roll Diameter
|
φ76-φ80mm
|
|
Packing Speed
|
40-60PCS/min (according to product)
|
|
Package Film Thickness
|
0.04-0.08mm
|
|
Package Film Material
|
Double sided heat sealing film (recommended),OPP,Various composite heat sealing films
|
|
Product Packaging Specification
|
Ll00-200mm;W70-110mm;H30-100mm
|
|
Power
|
13.5Kw
|
|
Package Qualification Rate
|
≥98%
|
|
Machine Size
|
5400x2820x1900(mm)
|
|
Supply Power
|
380V 50HZ
|
|
Air Pressure
|
6kg/c㎡, 0.6m³/min
|
|
Net weight
|
≈3000Kg
|
Feature
1. The whole machine is composed of automatic feeding unit, packing unit and bag supply unit
2. Independent drive with full servo, short response time;Equipped with medium bus PLC, the
performance is more stable when running at high speed
3. Online bag-making, bagging and sealing are all completed automatically, which greatly improves
the production efficiency
4. Adopt 10 inch LCD touch screen, easy to operate when setting parameters and changing
5. With bag drop detection, do not push the material in the case of unsuccessful bag opening, and
automatically getting bag
6. The sealing of bag making adopts constant temperature control system to control the heating
tube.The temperature stability devia-tion is士1° to ensure the success rate of bag making
7. It has the function of material inspection. When there is no material, the bag can be taken waiting
for material
8. Connect to rear equipments.
