Quick Details
-
Input Voltage:
-
220V
-
Current:
-
84A
-
Dimensions:
-
36.13CBM
-
Use:
-
plastic pipe butt fusion welding
-
Power (kW):
-
2.3
-
Weight (KG):
-
100 KG
-
Name:
-
Hot Melt Butt Welding Machine
-
Model:
-
PJ-63-200
-
Available welding diameter:
-
180-400mm
-
Total Power:
-
3500W
-
Heating Plate Power:
-
2.0KW
-
Welding range:
-
40mm-50mm-63mm-75mm-90mm-110mm-125mm-140mm-160mm
-
COLOR:
-
Customer's Requirement
-
Materials:
-
Aluminum
-
Application:
-
Wheel Rim Welding
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
PJ
-
Input Voltage:
-
220V
-
Current:
-
84A
-
Dimensions:
-
36.13CBM
-
Use:
-
plastic pipe butt fusion welding
-
Power (kW):
-
2.3
-
Weight (KG):
-
100 KG
-
Name:
-
Hot Melt Butt Welding Machine
-
Model:
-
PJ-63-200
-
Available welding diameter:
-
180-400mm
-
Total Power:
-
3500W
-
Heating Plate Power:
-
2.0KW
-
Welding range:
-
40mm-50mm-63mm-75mm-90mm-110mm-125mm-140mm-160mm
-
COLOR:
-
Customer's Requirement
-
Materials:
-
Aluminum
-
Application:
-
Wheel Rim Welding
Products Description

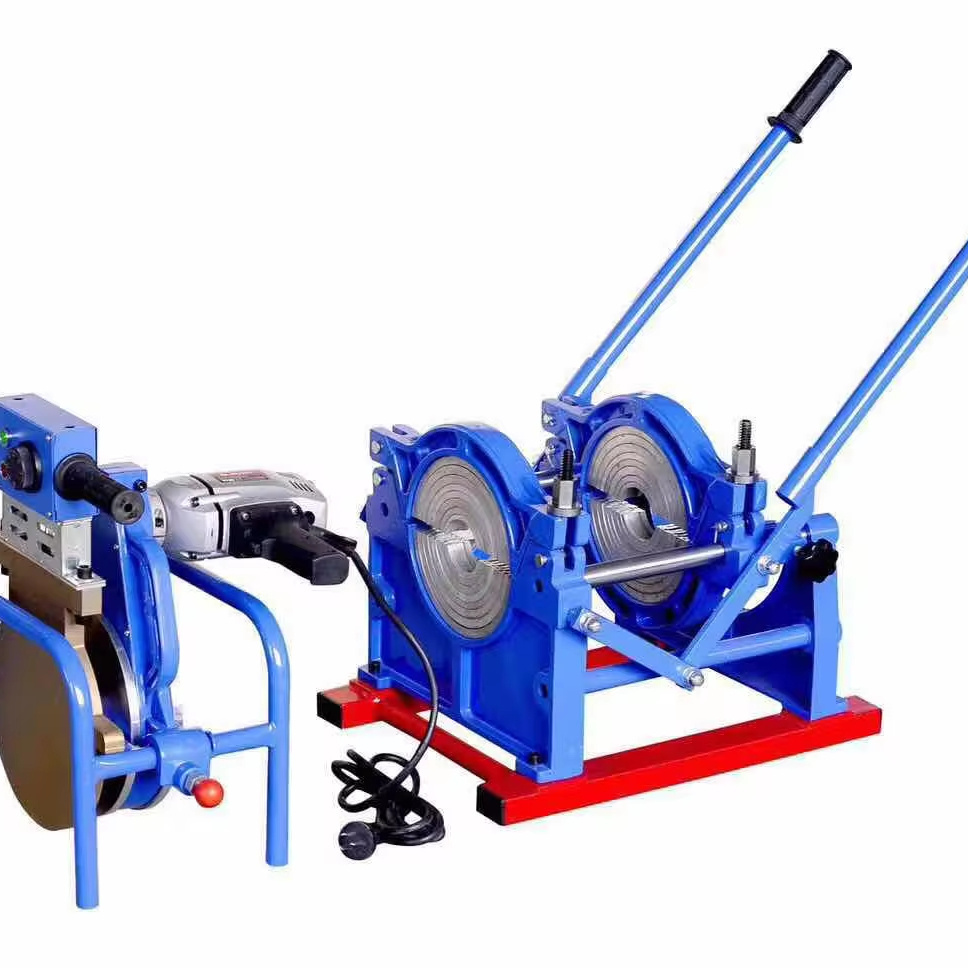

automatic butt welding machine63-160/63-200Hand cranked hot melt butt machine welding machine PE plastic welding machine
Products description:
Introduction
This machine is suitable for thermoplastic pipes and fittings made of PP PB PVDF that are operated in ditches or construction sites. Consists of frame, milling cutter, heating plate and accessory holder. Made of lightweight and high-strength materials. Save labor and work efficiently. The main parts of the machine are made of pure aluminum, which is lighter, stronger and smoother than sand casting and steel molds.
principle
The principle is to heat two surfaces to a specified temperature and then apply pressure to fuse them together. This pressure causes the metal covering material to flow, causing it to mix and melt together. When polyethylene pipe is heated, its molecular structure changes from a crystalline to an amorphous state. When pressure is applied, the molecules at the end of each tube fuse together. When the connection ends cool, the molecules return to the crystalline state, the original interface is gone, and the two tubes have become one tube of the same nature. The resulting pipe joint will be as strong or stronger than the two pipes themselves.
Product Photos
Technical parameters
|
Model
|
63-160
|
63-200
|
90-250
|
|
Welding specifications
|
63,75,90,110,125,140,160
|
63,75,90,110,125,140,160,180,200
|
63,75,90,110,125,140,160,180,200,225,250
|
|
Butt deviation
|
≤0.3mm
|
≤0.3mm
|
≤0.3mm
|
|
Temperature error
|
±3°C
|
±3°C
|
±3°C
|
|
Total power consumption
|
1.7kw/220V
|
2.3kw/220V
|
3.15kw/220V
|
|
Operating temperature
|
220°C
|
220°C
|
220°C
|
|
Ambient temperature
|
minus 5-40℃
|
minus 5-40℃
|
minus 5-40℃
|
|
Time required to reach welding temperature
|
<20min
|
<20min
|
<20min
|
|
Weldable materials
|
PE PPR PB PVDF
|
PE PPR PB PVDF
|
PE PPR PB PVDF
|
Customer visit&evaluation
FAQ
Are you manufacture?
Yes. We are one of leading manufacturers
Do you have stock productions to sell?
Yes,of course.But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production time for
punctual delivery.
(2) 20year production experience. We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad
situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to
discuss with him for all the problems and the way sames much times.
The picture of the machine is for reference only. The actual machine is subject to customer order.
