Quick Details
-
Size:
-
920x440x780mm
-
Material:
-
stainless steel
-
Warranty:
-
1 year
-
Output Power:
-
12000W
-
steam output nozzle:
-
2
-
certification:
-
CE
-
power resourse:
-
380v 3ph
-
power:
-
12kw
-
steam volume:
-
26kg/h
-
gun function:
-
dry steam, wet vapor, vacuum, high pressure water
-
use:
-
car interior, engine, exterior wash
-
car wash type:
-
self service
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hengan
-
Model Number:
-
HF1090S
-
Size:
-
920x440x780mm
-
Material:
-
stainless steel
-
Warranty:
-
1 year
-
Output Power:
-
12000W
-
steam output nozzle:
-
2
-
certification:
-
CE
-
power resourse:
-
380v 3ph
-
power:
-
12kw
-
steam volume:
-
26kg/h
-
gun function:
-
dry steam, wet vapor, vacuum, high pressure water
-
use:
-
car interior, engine, exterior wash
-
car wash type:
-
self service

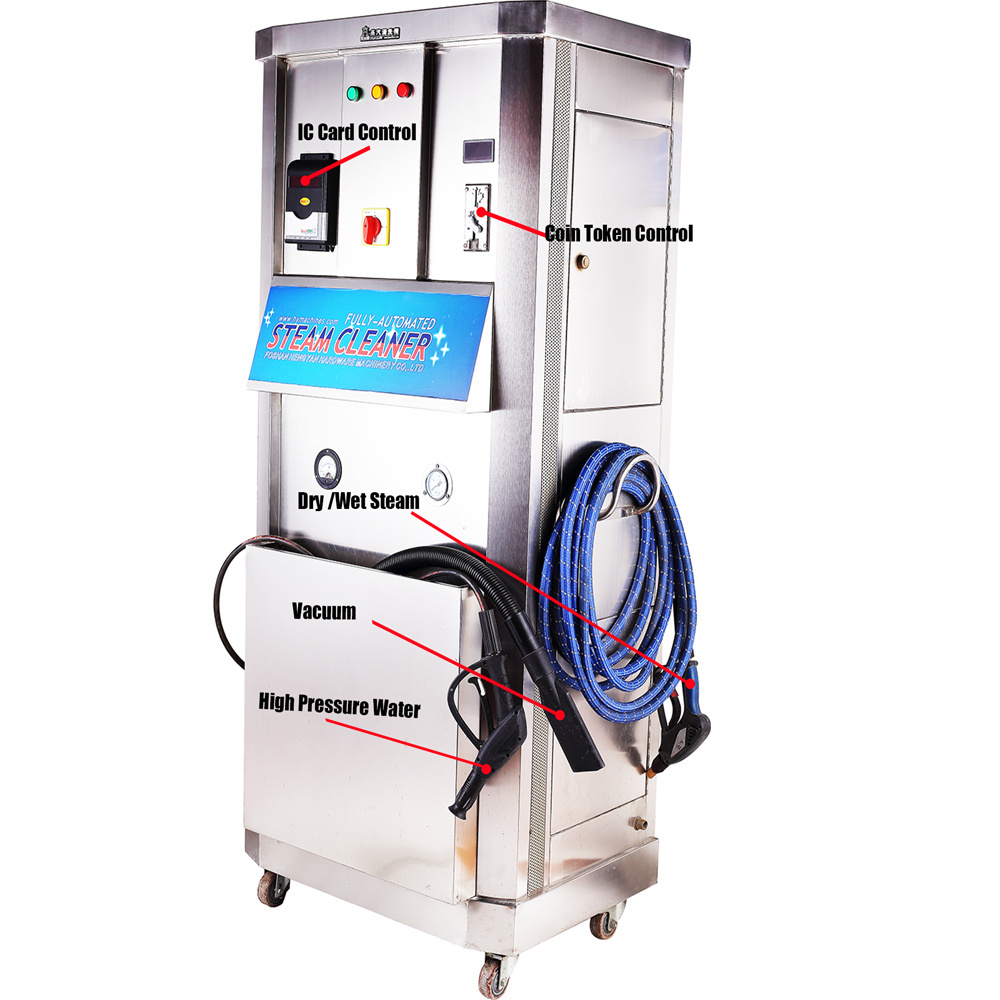

DIY Self Service Steam Car Wash Machine
|
Dry Saturated Steam or Interior & Engine Cleaning | Wet Steam for Exterior & Tire Cleaning |
|
|
OEM 1: Control System--IC Card & Coin Token Self Service
OEM 2: High Pressure Water & Steam (Dry, Wet) & Vacuum
|
Power Resource |
380V-420V 3ph Electricity System |
|
Power Rate |
12KW |
|
Steam Pressure |
0.8 MPa (8bar or 120psi), saturated steam pressure, not pump pressure, Better cleaning effect and quality than so called 15bar or 20bar vitual pump pressure steamer |
|
Steam Gunjet No. |
2 (can wash two cars at the same time continously) |
|
Highest Steam Temperature |
170 °C |
|
Effective Operating Temperature |
60 °C -120 °C |
|
Water Consumption Rate |
26kg /h |
|
Functions |
Dry Saturated Steam, Wet Steam, High Pressure Water, Vacuum Cleaner |
|
Continuous Work Time |
Non-stop, 24hours All day long (Very Important) |
|
Size |
800x620x1850mm |
|
Tank Capacity |
25 Liters (with automatically water input by external water connection) |
|
Material |
Stainless steel, Hi-Q sodium silicate for heat preservation & insulating |
PS: 360° rotated hose holder is optional accessory.
1. Operating Process: (1) Add coin (2) Display counting coin (3)Counting working time
(PS: Coin amount and time can be adjusted, eg. for 2euros for 1 minutes steam wash)
2. Coin control system:
3. IC card control self service steam wash system: Similar like coin token, but just charged by IC card, and adjust by a software.
1. Design: Different looking, structure.
2. Color: Print different color or logo.
3. Integrated Functions: Super steam, high pressure water, vacuum, detergent or wax, polishing, etc.
4. Control System: IC/ID card self service control, mobile phone scanning control, remote control, automatical producing line cleaning control, etc.
5. Power Rate: 30KW, 60KW, 80KW, etc.
6. Mobile Steam Cleaning Service Solutions:
Heng'An Steam Car Washer Delivery Preparation and Quality Inspection by Customer
1) Container order delivery
2) Delivery Preparation, seriously inspection and test for each machine
As a top manufacturer on steam cleaners with more than 10 years' professional experience, Hengyan holds kinds of steam generating technologies which are specially applied in different cleaning requirement. Any inquiries or orders to Heng'An brand of steam car washer or industrial steam cleaners are warmly welcome. Distributorship and OEM issue, please also feel free to contact with Hengyan.
-------------------------------------------------------------
Self Service Steam Car Wash Machine
