Quick Details
-
Operating Angle:
-
Max Working Angle 45 Degree
-
Place of Origin:
-
China or Other
-
Brand Name:
-
BSSD or Other
-
Quality:
-
High-Quality
-
Package:
-
Original Package
-
Service:
-
OEM Customized Services
-
Name:
-
0164-25-060 GUMZ3 32*57 Universal Joint Cross bearing GUMZ-3
-
Certificate:
-
ISO9001:2008
-
Feature:
-
Stable Performance:low Voice
-
Stock:
-
RICH
-
Type:
-
U-joint Bearing
-
Single Universal Joint:
-
Single Universal Joint
-
Packing:
-
Under Client's Requestment
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Other, Auto parts
-
Structure:
-
Single
-
Material:
-
ALLOY STEEL / Stainless steel
-
Operating Angle:
-
Max Working Angle 45 Degree
-
Place of Origin:
-
China or Other
-
Brand Name:
-
BSSD or Other
-
Quality:
-
High-Quality
-
Package:
-
Original Package
-
Service:
-
OEM Customized Services
-
Name:
-
0164-25-060 GUMZ3 32*57 Universal Joint Cross bearing GUMZ-3
-
Certificate:
-
ISO9001:2008
-
Feature:
-
Stable Performance:low Voice
-
Stock:
-
RICH
-
Type:
-
U-joint Bearing
-
Single Universal Joint:
-
Single Universal Joint
-
Packing:
-
Under Client's Requestment

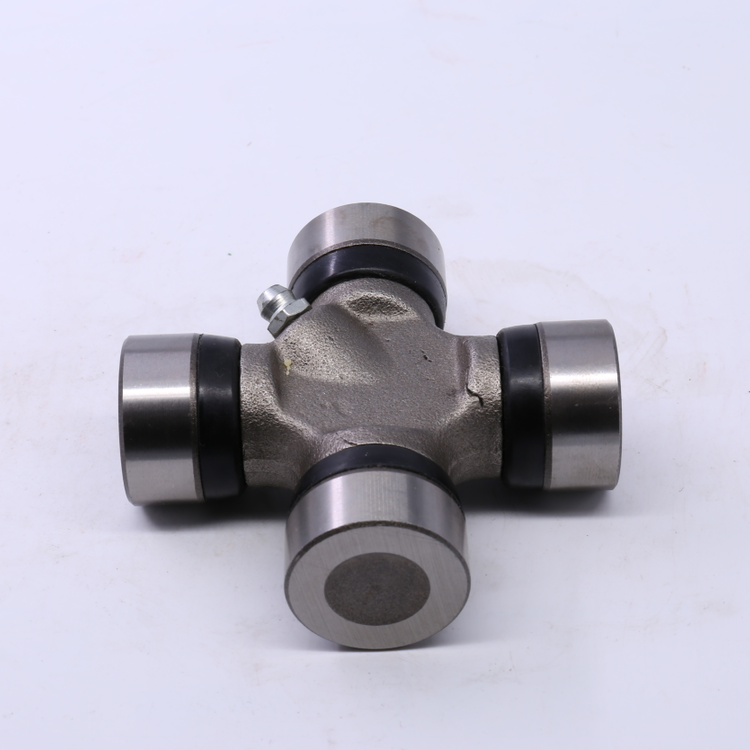

Quality Auto parts U-Joint Coupling 0164-25-060 GUMZ3 32*57 Universal Joint Cross bearing GUMZ-3 for Kia
Product Description
BSSD Universal Joint
Drive shaft incorporated with universal oint is widely in use not only in automotive industry but also all other industrial scenesPurpose: hich torque transmission in limited space. BSSD is specialized in universal ioint, key element of module like drive shafor propeler shat BSSD is able to meet different reauirements and shaft sizes of OE customers, BSSD aiso covers alobaaftermarket with wider range line-up and proudly extends our brand name. This service is realized by our thorough in-houseproduction. BSSD maintains production and enaineering knowledce and experience to produce universal ioints of the hichestquality viable under all conditions at economical cost
Structure
Universal joint consists of spider cross) and 4 grease-filed roler bearings. It can transmit large torque at ow friction. Spiderwith journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized infurnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size undersevere tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreian materia/ariety of arades and materidls gre selected to respond to extreme conditions such as very hot 1 very cold temperatures.
Drive shaft incorporated with universal oint is widely in use not only in automotive industry but also all other industrial scenesPurpose: hich torque transmission in limited space. BSSD is specialized in universal ioint, key element of module like drive shafor propeler shat BSSD is able to meet different reauirements and shaft sizes of OE customers, BSSD aiso covers alobaaftermarket with wider range line-up and proudly extends our brand name. This service is realized by our thorough in-houseproduction. BSSD maintains production and enaineering knowledce and experience to produce universal ioints of the hichestquality viable under all conditions at economical cost
Structure
Universal joint consists of spider cross) and 4 grease-filed roler bearings. It can transmit large torque at ow friction. Spiderwith journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized infurnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size undersevere tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreian materia/ariety of arades and materidls gre selected to respond to extreme conditions such as very hot 1 very cold temperatures.
Universal Joint Specifications:
Figure Type = B3
= Assembly Size: 57.00mm
D = Case Size: 32.01mm
Figure Type = B3
= Assembly Size: 57.00mm
D = Case Size: 32.01mm
Universal Joint's Snap Ring Specifications:
Diameter= 29.4 mm
Thickness = 1.60 mm
Type : Ill
Position : Inner
OEM Reference Number
0153 25-060
0164-25-060
0164-89-251
W001-25-060A
W001-25-060Y
W001-89-251
W001-89-251A
Detailed Images
Raw material
1.20Cr for small and medium size u-joint
2.20CrMnTi for big size universal joint
3. Gcr15 for universal joint bearing
Specifications
1) Quality: Meet Europe and USA standards
2) Develop nonstandard type according to customer's requirement
3) Packing: Standard export packing
1.20Cr for small and medium size u-joint
2.20CrMnTi for big size universal joint
3. Gcr15 for universal joint bearing
Specifications
1) Quality: Meet Europe and USA standards
2) Develop nonstandard type according to customer's requirement
3) Packing: Standard export packing
Related Products
| BSSD(Brand) |
Size(mm)
|
| GUMZ1(5) | 25.02*63.8 |
| GUMZ2 | 22.02*54.6 |
| GUMZ3(4) | 32*56.98 |
| GUMZ6 | 28*55.8 |
| GUMZ7 | 25*41 |
| GUMZ8 | 37*104 |
| GUMZ9 | 26.53*48 |
| GUMZ10 | 22.5*34.65 |
| GUMZ11 | 22.06*59 |
| GUMZ12 | 24.06*71.4 |
