- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zing Ear
-
Model Number:
-
ZingEar-Switches
-
IP level:
-
NO
-
Free Sample:
-
Available
-
Application:
-
Auto, Applications,0ffice equipment, Industrial Control
-
Product Name:
-
Explosion Waterproof Microrupteur Microswitch Micro Switch
-
Custom Service:
-
Available
-
Certification:
-
ENEC, CQC, ULCUL, CB, etc.
Quick Details
-
Protection Level:
-
IP00, IP40, IP64, IP67
-
Max. Current:
-
26A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zing Ear
-
Model Number:
-
ZingEar-Switches
-
IP level:
-
NO
-
Free Sample:
-
Available
-
Application:
-
Auto, Applications,0ffice equipment, Industrial Control
-
Product Name:
-
Explosion Waterproof Microrupteur Microswitch Micro Switch
-
Custom Service:
-
Available
-
Certification:
-
ENEC, CQC, ULCUL, CB, etc.
Why Choose US?
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH,CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.Parts one-stop Service for Customers

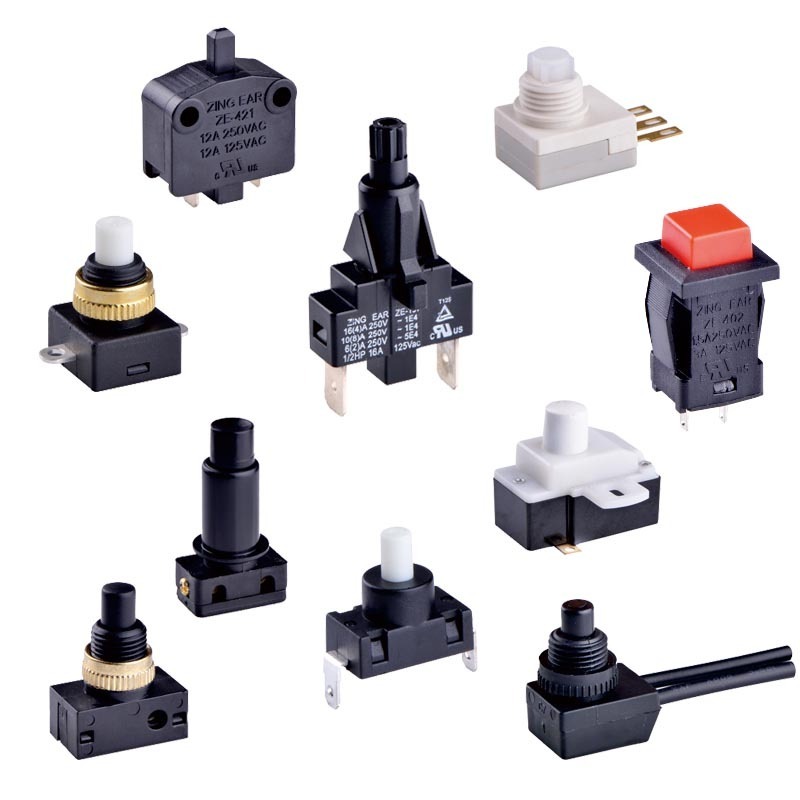

Products Description
G5W11 Micro Switch Size
Non Waterproof Microswitches
Waterproof Micro Switch
Rocker Switch
Slide Switch
Application for G5W11
Automotive hydraulic lock
Car door lock
Car tail lock
Automotive wiring harness parts
Lawn mower
Ice machine
Ice maker
Humidifier
Excavator hydraulic safety lock
Excavator hydraulic safety lock
Elevator electric control box
Elevator
Angle grinder / straight grinder
Angle grinder / straight grinder
Polisher
Heavy duty truck
Bus parts
Motorcycle carburetor
Golf cart
Solar telescopic garage
Electric car accessories
Smart garage
Truck hydraulic lock
Heavy truck safety lock
Kitchen appliance
Household appliances
Vending machine
Ice maker
Built-in dehumidification system
Dispensing equipment
Parking equipment
Ultrasound equipment
Industrial automation equipment
Farming automation
Farming automation
Construction machinery
Garden Tools
Children's shaker
Electric boat
Electric putter
Putter motor
Coffee machine
Product Parameters
|
Rating W1
|
ENEC 0. 1A 48VDC, 0. 1A 125/250VAC, 40T85, 5E4, u
UL 0. 1A 48VDC, O. 1A 125/250VAC, T85
|
|
|
|
|||
|
Rating W2
|
ENEC: 5A 48VDC, 0. 1A 125/250VAC, 40T85, 5E4,u
UL: 5A 125/250VAC, 5A 30VDC T85
|
|
|
|
|||
|
Rating W3
|
ENEC 10 (2) A 125/250VAC, 0. 5A 125VDC, 0. 25A 250VDC, 40T85, u, 2e4
UL 10. 1A 1/10HP 125/250VAC, 0. 5A 125VDC, 0. 25A 250VDC, T85
|
|
|
|
|||
|
0perating Frequency - Electrical
|
10~30 time/min
|
|
|
|
|||
|
0perating Frequency - Mechanical
|
60 times/min
|
|
|
|
|||
|
Contact Resistance (Intial Value) - with terminal type
|
50m Ω Max
|
|
|
|
|||
|
Contact Resistance (Intial Value) - with wire type
|
100m Ω Max (Depends on the length of the wire)
|
|
|
|
|||
|
Insulation Resistance
|
at 500vdc, 100M Ω Min.
|
|
|
|
|||
|
Dielectric Strength -
Between terminals
|
AC 1000V 50-60Hz 1min
|
|
|
|
|||
|
Dielectric Strength - terminals and housing
|
AC 1500V 50-60Hz 1min
|
|
|
|
|||
|
Storage Temperature
|
-40° C^+85° c
|
|
|
|
|||
|
Strorage Humidity
|
85%RH Max
|
|
|
|
|||
|
Protection Grade - With terminal type
|
IEC IP67 (exclude terminal)
|
|
|
|
|||
|
Protection Grade - With wire type
|
IEC IP67
|
|
|
|
|||
|
Electric-shock safeguard grade
|
Class II
|
|
|
|
|||
|
E - Life
|
2E4~10E4 cycles (depends on P/Ns)
|
|
|
|
|||
|
M - Life
|
over 500, 000cycles 1, 000,000cycles(60cycles/min)
|
|
|
|
|||
|
Unit Net Weight
|
Approx. 7g (with terminals type and without lever)
|
|
|
|
|||
Certifications
Our micro switch and factory had approved by
CE, ENEC, ROHS, ICTI, SGS, CQC, ISO9001 and ISO/TS16949
, weclome to contact us to know more details
