Quick Details
-
Model Number:
-

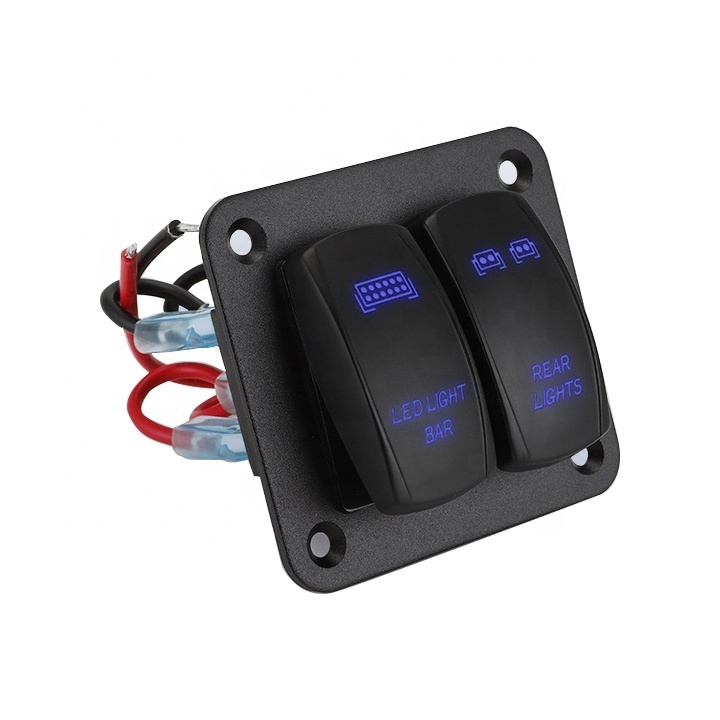

Automotive pannel-2A
-
Max. Current:
-
30A
-
Mechanical Life:
-
10000 CYCLES, 10000cycles
-
Product name:
-
Rocker Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Operating force:
-
200gf/250gf
-
Certification:
-
Reach, Rohs, TUV, CCC, CE, ISO9001
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wintai-Tech Automotive Switch
-
Model Number:
-
Automotive pannel-2A
-
Max. Current:
-
30A
-
Mechanical Life:
-
10000 CYCLES, 10000cycles
-
Product name:
-
Rocker Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Operating force:
-
200gf/250gf
-
Certification:
-
Reach, Rohs, TUV, CCC, CE, ISO9001
4pin Rocker Switch
The rocker switch, also known to some other manufactures as the boat switch.
It's an on and off electrical switch that, when pressed, swings from side to side, raising one side and lowering the other. This shaking mechanism can connect or disconnect the circuit. Wintai Tech. rocker switch, including mini type, common and waterproof type,
providing an extensive range for printed circuit board through-hole, surface mount and panel mount applications.
It is designed to perform in a variety of applications,such as household appliances,
computers,
etc.
Product Paramenters
|
Product Name
|
Rocker Switch
|
|
Current Rating
|
20A 12VDC 24VDC
|
|
INSULATION RESISTANCE
|
10
8
Ω min
|
|
Operating Force
|
250gf
|
|
Operating Temperature
|
-25oC ～ +80oC
|
|
Life Time
|
10,000 Cycles
|
Details Images
The circuits characteristics
PCB installation method
Products Description
Product Structure Description
Generally speaking, the rocker switch is composed of 8 parts,
t
he details are as follows.
(1) Operation button
, is made of PA66
nylon (UL94V-2)
.
(2)
Sealing rubber, is made of silicone rubber. (3) Semi-elliptical spring, is made of stainless steel plated silver. (4-5) Internal case and lid, both are made of
Polycarbonate
. (6)Cover, is made of PA66 nylon(UL94V-2). (7).Contacts, are made of c
oin silver, silver plated. (8)
Terminals，are made of
copper, silver plated.
