Quick Details
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Kunyi Electric
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
1 KG
-
Working Temperature Range:
-
0 - 180 ℃
-
Core Components:
-
other
-
Product Name::
-
electric 50C moisture-proof silicone heating pad for battery cabinet
-
Voltages available::
-
12V, 24v, 36v, 110v, 220v, 230v, 240v, 380V
-
Wattage density::
-
0.02-1w/cm2
-
Insulation material::
-
Silicone Rubber
-
Heating material:
-
etched metal foil
-
Thickness::
-
1--1.5mm
-
Plug::
-
US / UK / European / can be customized
-
Thermocouple::
-
with or without
-
Self-adhesive::
-
with or without
-
Keywords::
-
silicone rubber heater
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V-380V,can be customized
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Kunyi Electric
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
1 KG
-
Working Temperature Range:
-
0 - 180 ℃
-
Core Components:
-
other
-
Product Name::
-
electric 50C moisture-proof silicone heating pad for battery cabinet
-
Voltages available::
-
12V, 24v, 36v, 110v, 220v, 230v, 240v, 380V
-
Wattage density::
-
0.02-1w/cm2
-
Insulation material::
-
Silicone Rubber
-
Heating material:
-
etched metal foil
-
Thickness::
-
1--1.5mm
-
Plug::
-
US / UK / European / can be customized
-
Thermocouple::
-
with or without
-
Self-adhesive::
-
with or without
-
Keywords::
-
silicone rubber heater

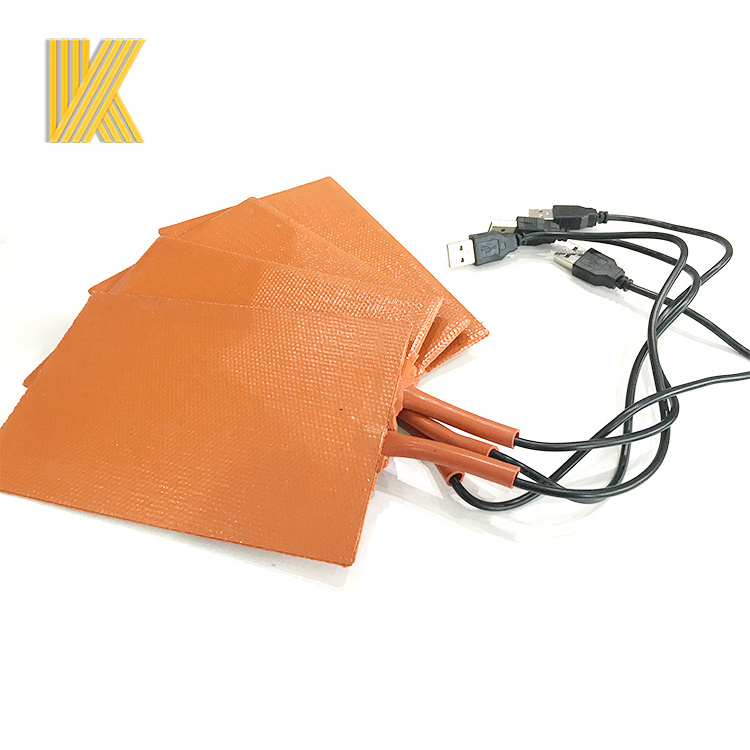

Silicone rubber heater
is m
ade of silicone rubber and glass fiber cloth are compounded sheet, silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact. With these heateing pads, heat can be placed where it is needed. Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.
|
Product Name
|
Customized sizes industrial electric heating flexible silicone rubber heater
|
|
Voltage Range
|
1.5v -- 400v
|
|
Power Density Range
|
0.1w/cm2 - 1w/cm2
|
|
Size
|
Rectangle (Lenght*Width), Round (Diameter), or provide the drawings
|
|
Thickness
|
1.5-2.0mm
|
|
Shape
|
Round, Rectangle, Square, any shape according to your requirement
|
|
Using Tempaerature Range
|
-60℃--200℃
|
|
Insulation Resistance
|
≥300MΩ
|
|
Electric Strength
|
1500V/5S
|
|
Optional Accessories
|
3M adhesive; Temperature Controller; Thermostat and so on
|
|
Lead wire
|
300mm length; Different type of wire (Teflon/silicone high temperature frberglass) is available
|
Features:
* The silicone rubber heaters have advantage of thinness, lightness and flexibility;
* The silicone rubber heater can improve heat transfer, accelerate warming and decrease power under the process of operation.
Fiberglass reinforced silicone rubber stabilizes the dimension of heaters;
* The silicone rubber heater's max wattage can be made for 1 w/cm²;
* The silicone rubber heater's can be made for any size and any shapes.
* The silicone rubber heater can improve heat transfer, accelerate warming and decrease power under the process of operation.
Fiberglass reinforced silicone rubber stabilizes the dimension of heaters;
* The silicone rubber heater's max wattage can be made for 1 w/cm²;
* The silicone rubber heater's can be made for any size and any shapes.
Silicone Rubber Heater For Gas Cylinder
|
Specification
|
5kg
|
10kg
|
15kg
|
50kg
|
|
||||
|
Size(L*W)
|
760*80mm
|
970*80mm
|
970*120mm
|
1250*120mm
|
1250*200mm
|
||||
|
Wattage
|
180W
|
220W
|
300W
|
350W
|
500W
|
||||
|
Temperatrue Range
|
Knob temperature control (30--150℃) or digital display temperature control
|
|
|
|
|
||||
|
Voltage
|
220V (can be customized)
|
|
|
|
|
||||
Silicone Rubber Heater For Oil Drum
|
Drum size
|
200L Drum (Standard)
|
200L Drum (Narrow)
|
20L Drum (Standard)
|
20L Drum (Standard)
|
20L Drum (Standard)
|
||||
|
Size(L*W)
|
1740*250mm
|
1740*125mm
|
860*200mm
|
860*120mm
|
1250*250mm
|
||||
|
Voltage/Wattage
|
220V 2000W
|
220V 1000W
|
220V 800W
|
220V 400W
|
220V 1500W
|
||||
|
Temperatrue Range
|
Knob temperature control (30--150℃) or digital display temperature control
|
|
|
|
|
||||
|
Weight
|
1.5KG
|
0.9KG
|
0.8KG
|
0.7KG
|
0.8KG
|
||||
