Quick Details
-
Brand Name:
-
jingbo
-
Model Number:
-
LWGY
-
Product Name:
-

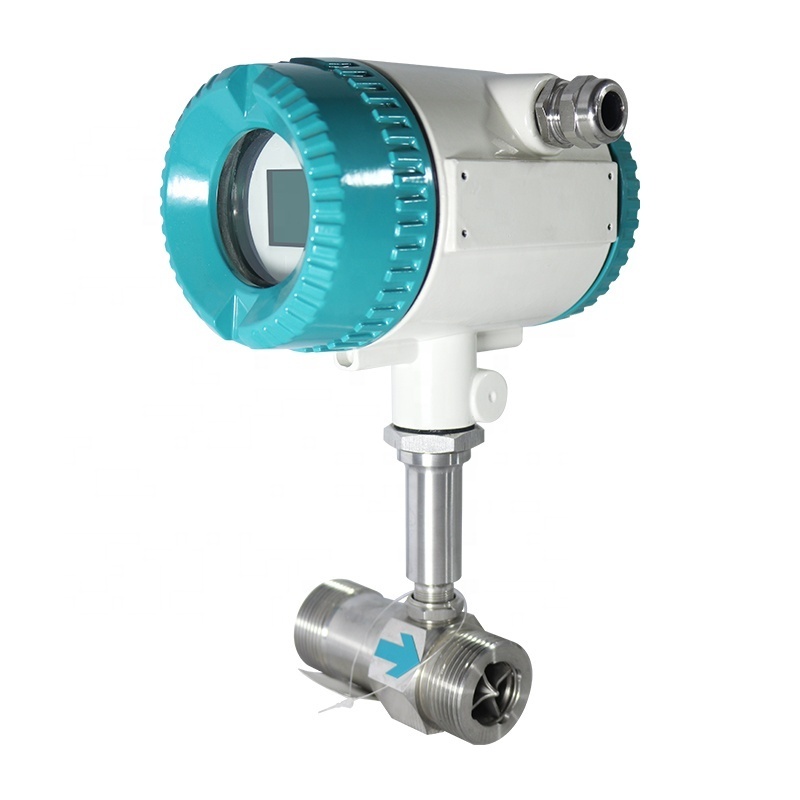

Liquid Turbine Flow Meter
-
Medium:
-
Nonconductive Liquid
-
Connection:
-
Flange/ Thread/clamp
-
Accuracy:
-
1.0% 0.5% 0.2%
-
Material:
-
SUS 304
-
Output Signal:
-
4-20mA /pulse
-
Brand:
-
Jingbo Instrument
-
Power supply:
-
24VDC
-
Protection Class:
-
IP65 (higher Protection Grade)
-
Repeatability:
-
0.05%~0.2%
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
jingbo
-
Model Number:
-
LWGY
-
Product Name:
-
Liquid Turbine Flow Meter
-
Medium:
-
Nonconductive Liquid
-
Connection:
-
Flange/ Thread/clamp
-
Accuracy:
-
1.0% 0.5% 0.2%
-
Material:
-
SUS 304
-
Output Signal:
-
4-20mA /pulse
-
Brand:
-
Jingbo Instrument
-
Power supply:
-
24VDC
-
Protection Class:
-
IP65 (higher Protection Grade)
-
Repeatability:
-
0.05%~0.2%
|
Technical parameters
|
|
|
|
Implementation standards:
|
Turbine flowmeter sensor(JB/T9246~19999)
|
|
|
Caliber&connection:
|
Thread connection: DN4,6,10,15,20,25,32,40;
Flange connection: DN (15,20,25,32,40)50,65,80,100,125,150,200; Clamp connection: DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80 |
|
|
Accuracy:
|
±0.1%,±0.5%,±0.2%(Optional)
|
|
|
Range ratio:
|
1:10;1:15;1:20
|
|
|
Sensor material:
|
SS304 stainless steel,SS316(L)stainless steel,etc.
|
|
|
Working environment:
|
Medium temperature:-20℃~+120℃
Ambient temperature:-20℃~+20℃ Relative humidity:5%~90% Atmospheric pressure:86KPA~106KPA |
|
|
Signal output:
|
Pulse ,4~20ma
|
|
|
Communication output:
|
RS485,HART
|
|
|
Working power supply:
|
A:DC 24V lithium battery
|
|
|
Signal line interface:
|
Basic type, Explosion proof type
|
|
|
Explosion proof grade:
|
ExiaΙΙCT4 or ExdΙΙBT6
|
|
|
Protection level:
|
IP65 or higher
|
|
