Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHINA
-
Fork Length:
-
11220mm
-
Fork Width:
-
6042mm
-
Overall Dimensions:
-
11258*4770* 6053-12185mm
-
Certification:
-
ISO9001
-
Engine:
-
CUMINS QSB 6.7
-
Rated power:
-
164/2100kw
-
Max torque:
-
1160/1350
-
Gearbox:
-
CLARK 13.5HR32400
-
Drive axle:
-
D81 PL488
-
Spreader type:
-
SDJ450H
-
Application:
-
20'/40'Containers
Quick Details
-
Max. Lifting Height:
-
19124mm
-
Min. Lifting Height:
-
2250mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHINA
-
Fork Length:
-
11220mm
-
Fork Width:
-
6042mm
-
Overall Dimensions:
-
11258*4770* 6053-12185mm
-
Certification:
-
ISO9001
-
Engine:
-
CUMINS QSB 6.7
-
Rated power:
-
164/2100kw
-
Max torque:
-
1160/1350
-
Gearbox:
-
CLARK 13.5HR32400
-
Drive axle:
-
D81 PL488
-
Spreader type:
-
SDJ450H
-
Application:
-
20'/40'Containers

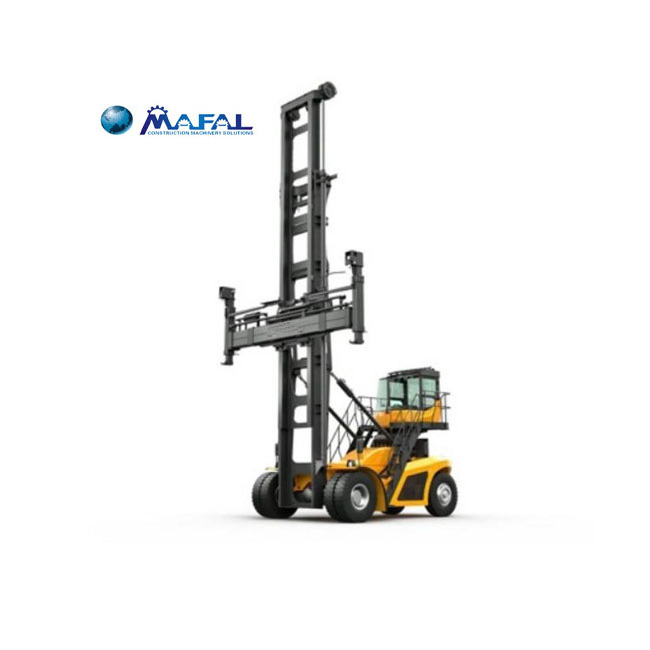

China Kalmar 10 ton Empty Container Handler (SDCY100K8-T)
Specification
Empty container handler SDCY100K8-T is mainly used in ports, wharfs and storage yards to transfer and stack standard, twin, hurdling and LNG empty containers of various specifications. With loading capacity of 9 tons, the joint Chinese and German design container handler is reliable and convenient.
Safe and Reliable
Dynamic Anti-Rollover Protection Technology
Adopt intelligent control technology, detect equipment' s real-time working parameters and automatically adjust the operating status under dangerous conditions to prevent rollover. It can achieve safe and worry-free operation.
Extra High Mast Design Technology
F-type mast is creatively developed to reduce shaking. It is curve and twist resisting and highly rigid, safe and reliable.
Patented Mast Clamping Alarm Technology
An intelligent monitoring device will detect the blocking and send alarm. The main electronic control system can lock the dangerous operations to prevent further damage, comprehensively eliminate safety hazards.
High Efficiency
Spreader Horizontal Slew Patent Technology
Aligning and lifting container more conveniently and quickly. It greatly decreases the friction between tyre and floor, reduces fuel consumption and saves costs.
Efficient Control Technology
The centralized joystick has inching control function. It can realize fine tuning to millimeter precision easily. All the spreaders' motions are under proportional control, providing an experience of man-machine unification. The machine also has multi-motion linkage design so that it can operate faster and more efficiently.
Hurdling Twin Container Spreader
Hurdling and twin container spreaders are developed to meet customers’ needs. It can vertically rotate ±4°to improve alignment efficiency.
| Product Name | Heavy Duty widely used new Empty Container Handler | |
| Configuration | Engine manufacturer | VOLVO TAD851VE |
| Rated power | 185/2300 kw/rpm | |
| Emission standard | EU Stage Ⅲ | |
| Transmission | Clark 13.7HR32000 | |
| Drive axle | Kessler D81 PL488 | |
| Spreader model | SDJ90Ⅱ or ELME588 | |
| Side shift range | ±600 mm | |
| Application | ISO 20′ / 40′ | |
| Tire | 14.00-24 28PR | |
| Performance | Overall weight | 39000 kg |
| Max.loading capacity | 9000 kg | |
| Stacking height | 7(8'6") | |
| Main parameters | Overall length | 6900 mm |
| Wheel base | 4550 mm | |
| Min.ground clearance | 369 mm | |
| Min.lifting height | 10930 mm | |
| Min.turning radius | 6000 mm | |
| Overall width | 6038-12170 m | |
