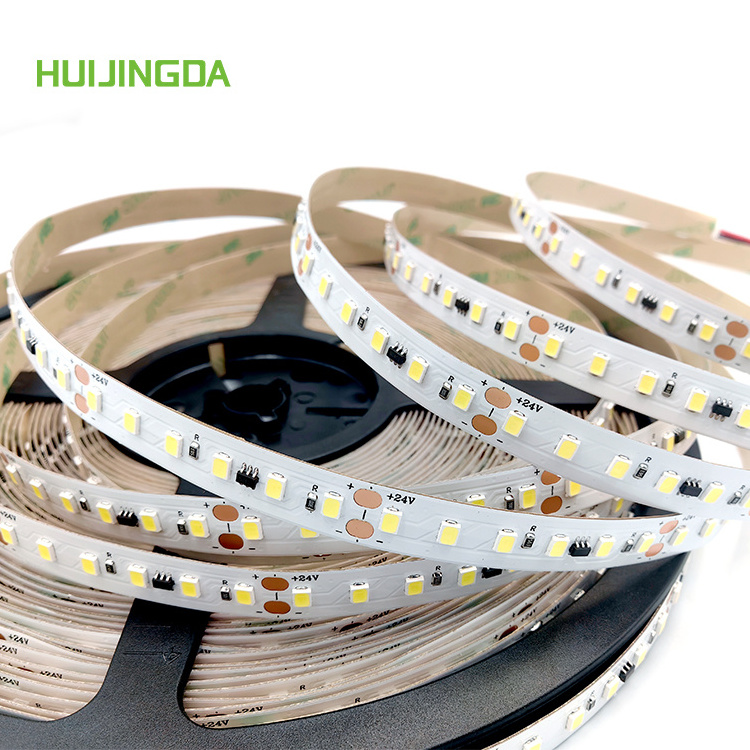

Factory 24V 2835 SMD cri 90 120leds/m 10W/m 20m IP20 no voltage drop flexible led strip light

Factory 24V 2835 SMD cri 90 120leds/m 10W/m 20m IP20 no voltage drop flexible led strip light

FOB Reference Price: Get Latest Price

≥100 Meters

US $1.99

≥1000 Meters

US $1.92

≥3000 Meters

US $1.84

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HUIJINGDA

Model Number:: HJD-24-10F-2835-120AS-90

CRI (Ra>):: 90

Working Lifetime(Hour):: 50000

Working Temperature(℃):: -25 - 60

Product Weight（kg）:: 0.4

Product Name:: SMD2835 Flexible LED Strip

LED Quantity:: 120leds/m

PCB Width:: 10mm

CCT:: 2200K/2400K/2700K/3000K/4000K/5000K/6000K

Package:: 10M / 20M

Quick Details

Color Temperature(CCT):: 6000K (Daylight Alert)

Control Mode:: Remote Control, Other

Place of Origin:: Guangdong, China

Brand Name:: HUIJINGDA

Model Number:: HJD-24-10F-2835-120AS-90

CRI (Ra>):: 90

Working Lifetime(Hour):: 50000

Working Temperature(℃):: -25 - 60

Product Weight（kg）:: 0.4

Product Name:: SMD2835 Flexible LED Strip

LED Quantity:: 120leds/m

PCB Width:: 10mm

CCT:: 2200K/2400K/2700K/3000K/4000K/5000K/6000K

Package:: 10M / 20M

Specification

Model number	HJD-24-10F-2835-120AS-90R
Step length (mm/x LED)	50mm/6LEDs
Number LED/m	120
CRI	Ra>90
Beam Angle (°)	120
Voltage (v)	24V
Power (W/m)	10w/m
Light efficiency(LM/W)	85-105
FPC width (mm)	10mm
Max. length per circuit (m)	5m
IP rate	IP20/65/66/67/68
Installation	3M Tape/ Mounting Clips/ Aliminum Profiles

Demensions

Products Description

1. High quality led copper support, ultra-high brightness, SMD2835,Ra>90.

2. Double-sided 10mm PCB reduces voltage drop. Added triode design, 20m connection with no voltage drop.

3.Longer life, 3 years warranty

4.With famous brand 3M back-tape,more flexible installation,also with better heat-dissipation.

5. Leds with one BINsystem,consistent color.

Data detection is as follows:

Thermal shock:-45℃~80℃ for 30minutes each,shock for 5 minute,lastig 120h .

Constant temperature and humidity chamer:high temperature 85℃， humidity 85RH,sealed storage for 168h

Title goes here.

Torsion test:Rotate postive side and reverse side 900-1200 degrees,cycle 1000 times

Regular CCT

Application Scenarios

FAQ

1. Are you a manufacturer or a trading company?
We are a professional Led light strip manufacturer, with 2000 square meter and located in ShenZhen GD province China.
2.Do you offer free sample ?
Yes, we can offer free sample. Just send us an inquiry and our sales engineer will reply you within 12 hours.
3. Do you have MOQ ?
Some types have moq but 1 piece sample is always welcome.
4. What is the main market for Huijingda?
We are selling more to Europe, Southwest Asia,Australia and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 60-70%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other regions.
5. What LED do you usually use for your LED products?
We have two kind of LED chip. One is brand LED like SAMSUNG, Epistar and Sanan with LM-80 report; the other is customization orchips clients provide.
6. What is Huijingda lead time?
Usually in 8-10 days for non-waterproof order, 2 weeks for waterproof order. Sample lead-time is always 3-5 days. For OEM/ODM products, delivery time depends on the request of product.
7. Can Huijingda do custom assembly or offer OEM product?
Huijingda are experienced in OEM/ ODM/ OBM service and finished many new items with clients. We welcome good and unique design,willing to develop products with customers together.
8. Do you have warranty for products?
Yes, we mainly provide 3 years warranty for most items and 5 year warranty also available. During the period, if customers have the approval showing product quality issues and if certified by Huijingda engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
9. Does Huijingda design its products?
Yes, Huijingda design and assemble many products. Our engineers have rich knowledge of optics, electronics, mechanical, structural and thermal management, as well as light control technology.
10. How to buy Hujingda products?
You can directly click " Contact Supplier " to send us inquiry, our sales team will get it and respond immediately.
