Quick Details
-
Description:
-

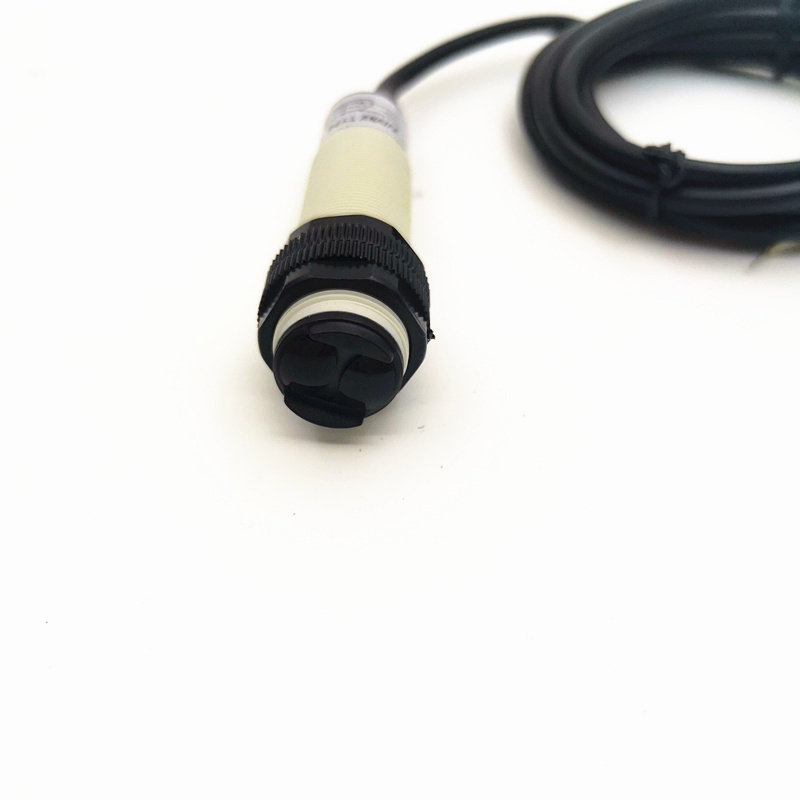

M18 photoelectric sensor, PHOTOELECTRIC SENSOR
-
Model Number:
-
G18-2B2LB
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZJIVNV
-
Theory:
-
switch
-
Output:
-
AC NO (Normally close)
-
name:
-
m18 photoelectric sensor
-
Product diameter:
-
18mm(M18)
-
Detection distance:
-
2M
-
MOQ:
-
5
Quick Details
-
Usage:
-
Inductry
-
Series:
-
M18 series
-
Mounting Type:
-
Hole install
-
Description:
-
M18 photoelectric sensor, PHOTOELECTRIC SENSOR
-
Model Number:
-
G18-2B2LB
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZJIVNV
-
Theory:
-
switch
-
Output:
-
AC NO (Normally close)
-
name:
-
m18 photoelectric sensor
-
Product diameter:
-
18mm(M18)
-
Detection distance:
-
2M
-
MOQ:
-
5
Advantage:
Product Name : Photoelectric sensor ( retro-reflective type)
Switch Appearance Type : Cylinder Type,
Theory : Photoelectric sensor retroreflective type;
Diameter of Head : 18 mm;
Detecting Distance : 2 m;
Detecting Object : Metal, non metal (body, hand, paper, food ...), Transparent or opaque boday
Supply Voltage : ac 90-250v;
Current Output : 200mA;
Response Frequency : 100Hz
External Material : Plastic shell+ PVC cable.
Portection grade: IP66
Cable length:
1.5m length cable for 3 wires and AC 2 wires, 2m length cable for 4 wires
Other mould, if you need contact with us:
|
Item no.
|
Product name
|
Dia
|
input voltage
|
output form
|
detect distance
|
wire type
|
|
|
G18-3B2PA
|
m18 retro-reflective type photoelectric sensor
|
18mm(M18)
|
DC10-30V
|
PNP NO
|
2M
|
DC 3 wires
|
retroreflective type, plastic shell, 1.5m cable for 3wires, 2m cable for 4 wires
|
|
G18-3B2PB
|
|
|
DC10-30V
|
PNP NC
|
2M
|
DC 3 wires
|
|
|
G18-3B2PC
|
|
|
DC10-30V
|
PNP NO+NC
|
2M
|
DC 4 wires
|
|
|
G18-3B2NA
|
|
|
DC10-30V
|
NPN NO
|
2M
|
DC 3 wires
|
|
|
G18-3B2NB
|
|
|
DC10-30V
|
NPN NC
|
2M
|
DC 3 wires
|
|
|
G18-3B2NC
|
|
|
DC10-30V
|
NPN NO+NC
|
2M
|
DC 4 wires
|
|
|
G18-2B2LA
|
|
|
AC90-250V
|
AC NO
|
2M
|
AC 2 wires
|
|
|
G18-2B2LB
|
|
|
AC90-250V
|
AC NC
|
2M
|
AC 2 wires
|
|
Applications
1. How we control the quality?
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
