Quick Details
-
Brand Name:
-
keepLiNK
-
Model Number:
-
KP-9000-65-1GX4GP
-
Place of Origin:
-
Guangdong, China
-
Housing:
-
aluminum
-
Comapny:
-
manufacture
-
Operating temperature:
-
-40℃~+75℃
-
Storage temperature:
-
-40℃~+85℃
-
PoE port:
-
1~4
-
PoE Protocol:
-
802.3af
-
MTBF:
-
100000 hours
-
Product size:
-
143X104X48mm
-
Weight:
-
0.52KG
-
Installation:
-
Din-rail
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
14G
-
Brand Name:
-
keepLiNK
-
Model Number:
-
KP-9000-65-1GX4GP
-
Place of Origin:
-
Guangdong, China
-
Housing:
-
aluminum
-
Comapny:
-
manufacture
-
Operating temperature:
-
-40℃~+75℃
-
Storage temperature:
-
-40℃~+85℃
-
PoE port:
-
1~4
-
PoE Protocol:
-
802.3af
-
MTBF:
-
100000 hours
-
Product size:
-
143X104X48mm
-
Weight:
-
0.52KG
-
Installation:
-
Din-rail

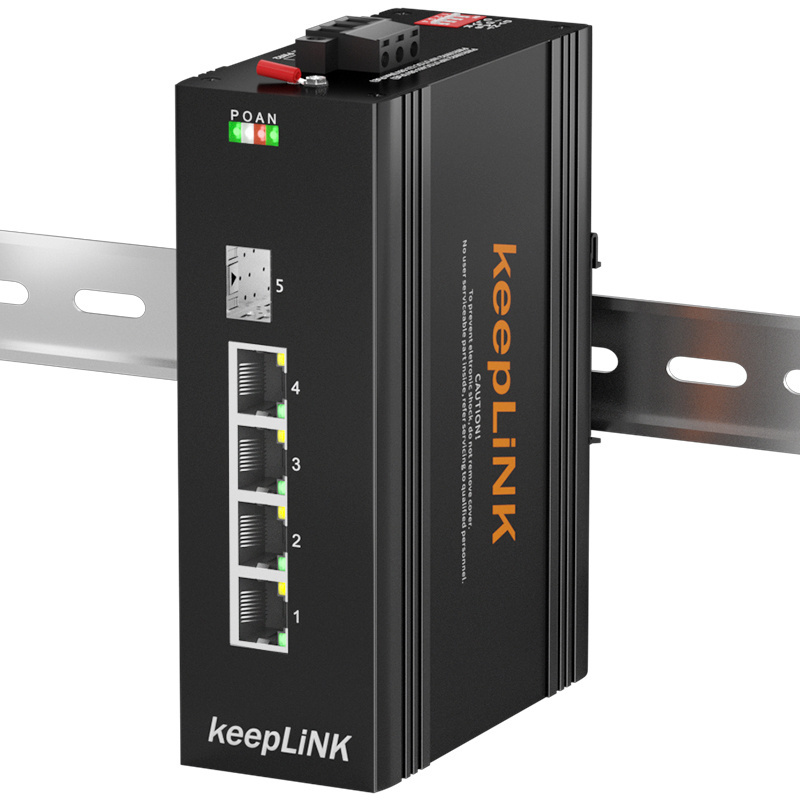

keepLiNK Gigabit 5 Port 100 1000Mbps OEM PoE Switch for Outdoor Use CCTV system IP camera
Serial munber: KP-9000-65-1GX4GP, 1*1000Base-X, 4*10/100/1000Base-T, PoE
Main Features
- DC12V-58(Non-PoE), DC48~58V(PoE) redundant power supply
- Surge protection for power 6KV , for Ethernet port 4KV , anti-static 8KV~15KV
- Aluminum body, IP40, -40°C~75°C working temperature.
- PoE support 802.3af&at, support short circuit protection.
- Support undervoltage alarm(<12V), overvoltage alarm(>58V )
- More convenient to use and maintain with DIP Switch : C/D: remote PD reset; LGY : standard/Nonstandard PoE; VLAN : Port isolation; RST : Remote PD reset
|
DIP Switch |
|
|
1 C/D |
Remote PD Reset |
|
2 LGY |
Stand/Non-standard PoE mode |
|
3 VLAN |
Port isolation |
|
4 RST |
Reset |
|
L2 Switching |
|
|
Switching capacity |
14Gbps |
|
Packet forwarding rate |
10.416Mpps |
|
MAC address table |
8K |
|
Forwarding delay |
<5us |
|
Buffer |
1M |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo frame |
Support 10Kbytes |
|
WatchDog |
Support |
|
Electrical Specifications |
|
|
Input voltage |
DC12-58V(Non-PoE), DC48~58V(PoE) |
|
Power consumption |
<6W(Non-PoE), PoE<126W(PoE) |
|
Voltage Alarm |
Support |
|
PoE |
|
|
PoE port |
1-4 |
|
PoE protocol |
IEEE802.3af & at |
|
Pin assigment |
1, 2, 3, 6 |
|
EMC & Ingress Protection |
|
|
IP level |
IP40 |
|
Surge protection of Power |
IEC 61000-4-5 Level X (6KV/6KV) (8/20us) |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
|
RS |
IEC 61000-4-3 Level 3(10V/m) |
|
EFI |
IEC 61000-4-4 Level 3(1V/2V) |
|
CS |
IEC 61000-4-6 Level 3(10V/m) |
|
PFMF |
IEC 61000-4-8 Level 4(30A/m) |
|
DIP |
IEC 61000-4-11 Level 3(10V) |
|
ESD |
IEC 61000-4-2 Level 4(8K/15K) |
|
Free fall |
0.5m |
|
Environment |
|
|
Operating temperature |
-40℃~ +75℃ The device is tested for 4 hours at temperatures in 85℃ |
|
Storage temperature |
-40℃~ +85℃ |
|
Relative humidity |
5%~95% (Non-condensing) |
|
Accessories |
Equipment, Terminals, Instruction, Certificate, Power adapter(optional) |
|
Dimensions |
|
|
|
|
