Quick Details
-
Brand Name:
-
OEM
-
Use:
-
FTTX, FTTX
-
Product name:
-
16 Port Gigabit Ethernet Network Switch
-
Interface:
-
16x10/100/1000Base-T Ethernet port
-
Bandwidth::
-
20Gbps
-
Packet Buffer Memory:
-
2M
-
Forwarding Mode:
-
Store-and-Forward
-
Power Supply:
-
Input Power: 12~48VDC (Terminal Block)
-
Operating temperature::
-
40℃-85℃
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
HLD016F
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Use:
-
FTTX, FTTX
-
Product name:
-
16 Port Gigabit Ethernet Network Switch
-
Interface:
-
16x10/100/1000Base-T Ethernet port
-
Bandwidth::
-
20Gbps
-
Packet Buffer Memory:
-
2M
-
Forwarding Mode:
-
Store-and-Forward
-
Power Supply:
-
Input Power: 12~48VDC (Terminal Block)
-
Operating temperature::
-
40℃-85℃
-
Warranty:
-
3 Years

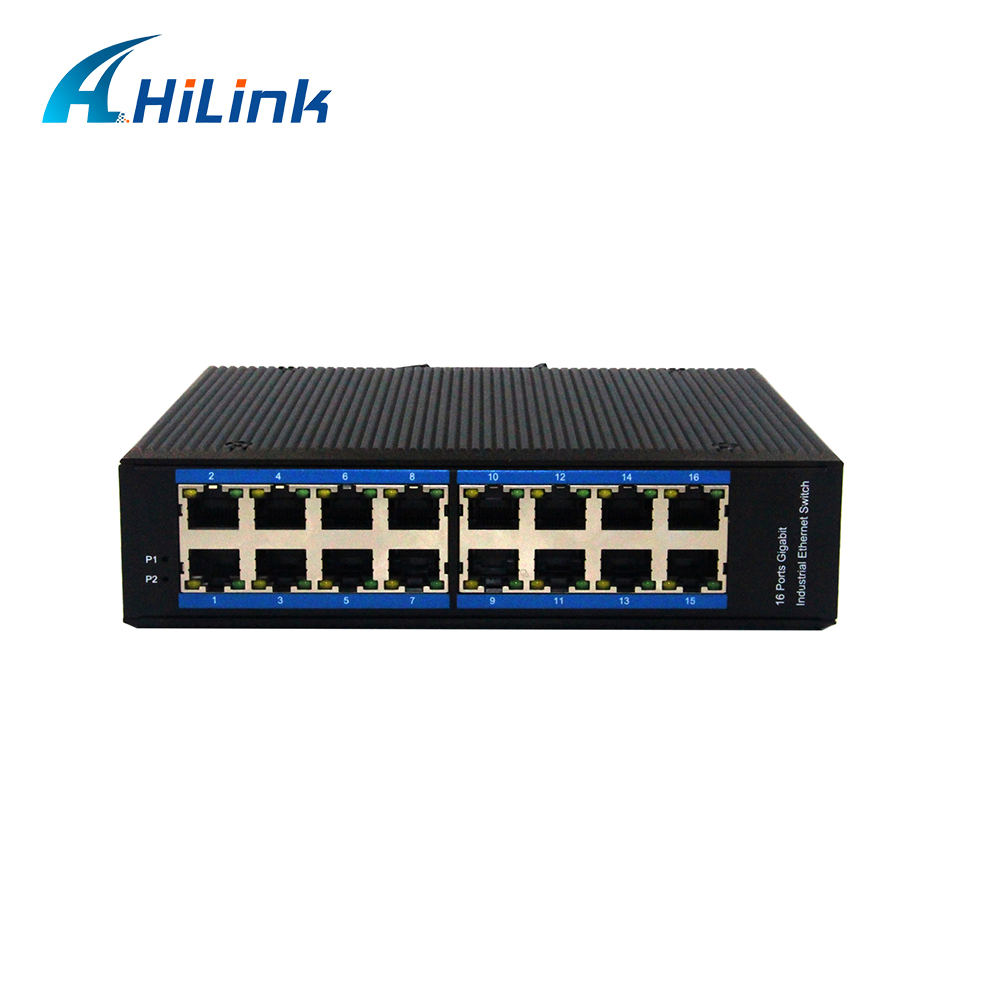

Un-Managed DIN Rail Industrial Grade 16 Port Gigabit Ethernet Network Switch
Product Description
Specification
Industrial Ethernetwitch, 9 Port 10/100Mbps Ethernet ports ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Technical Specification
|
Model No.
|
HLD016G
|
|
10/100/1000BASE-TX Port
|
16 port RJ-45 auto-MDI / MDI-X
|
|
Performance Specification |
Bandwidth: 56Gbps
Packet Buffer Memory:12Mbit Packet Forwarding Rate: 42Mpps MAC Address Table: 8K |
|
Installation
|
DIN rail
|
|
Maximum Frame Size
|
9000bytes packet size
|
|
Flow Control
|
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
|
|
Enclosure
|
IP40 aluminum housing
|
|
LED Indicator |
Power: Red
Ethernet: Yellow POE: Green |
|
Power Input
|
12 to 52V DC redundant power
|
|
Power Consumption
|
< 10 watts
|
|
Surge protection
|
±4KV
|
|
Network Protocols |
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Interface
•16-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/MDI-X function
Industrial conformance
•12V to 52V DC, redundant power input
•-40℃ to 85℃ operating temperature
•IP40 aluminum housing
•Supports 6KV DC Ethernet ESD protection
•Supports 6KV DC EFT protection for power line
•Free Fall, Shock and Vibration Stability
•DIN-rail and wall-mountable hardware design
