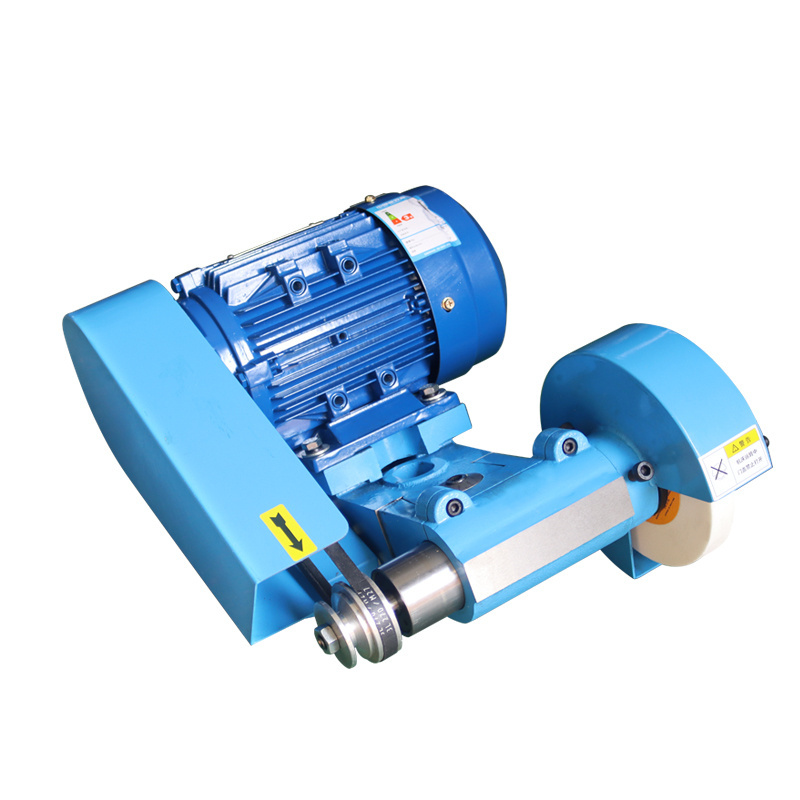

lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125
lathe grinding attachment for internal and external grinding lather tool post grinder GD-125

lathe grinding attachment for internal and external grinding lather tool post grinder GD-125

FOB Reference Price: Get Latest Price
≥1 Sets
US $560
≥5 Sets
US $520
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
430*360*390mm
Weight (KG):
55
motor power:
1/2hp 50-60Hz
External grinding wheel size:
125*32*20mm
Internal grinding wheel size:
25*16*6mm
Feature 2:
accuracy within 0.003 mm
Certification:
CE

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Qiandao lather tool post grinder
Voltage:
220V/380v
Dimension(L*W*H):
430*360*390mm
Weight (KG):
55
motor power:
1/2hp 50-60Hz
External grinding wheel size:
125*32*20mm
Internal grinding wheel size:
25*16*6mm
Feature 2:
accuracy within 0.003 mm
Certification:
CE

lathe grinding attachment for internal and external grinding lather tool post grinder GD-125

Product description

1,Both the main shafts have been specially designed  and the world-wide precision bearing is used to fit the main shafts which are made of alloy steel heat-treated for high wear resistance ,precision .As well as maintaining to the lowest temperature for durability and stability .

2,The motor base and the spindle bushing are adjustable .

3,The motor is well designed with a special and nice appearance .The RPM of the motor varies depending in the size work piece.

4,The grinder is capable of grinding the work piece to a minimum of 3mm in outer diameter and from 2mm up in inner diameter (bore) with the accuracy within 0.003mm and a well finished surface (supplied with special attachments)

5,The spindle bushing in made of cost iron .And supported by three surfaces therefor it is durable and elastic .

6,Materials such as steel ,iron ,copper(brass) ,aluminum ,cast iron ,plastics ,porcelain ,marble ,regarless of beingheat treated or not. Can be grond on this machine which function lie a cylindrical grinder so it may lower the cost of the production

T echnical parameters

Speicication of Lathe tool Grinder

Lathe tool post grinder

Internal grinding spindle

25*16*6mm

Grinding depth

3-90mm

Installation dimension(center hole)

25*40mm

Wheel diameter size

125*32*20mm

Diameter

32mm

Voltage

220V/380V

Horse power

750W 50HZ

Speed(outer)

1400RPM

Speed(inner)

12000RPM

Photoes show:
