Quick Details
-
Model Number:
-
LW26GS LW26GS pak-lock type switch
-
Max. Current:
-
160A
-
Mechanical Life:
-
10,000,000times
-
supply:
-
600000pcs/month
-
Quality Assurance::
-
2 years
-
Color:
-
red
-
Have stock:
-
can be custmize
-
Service:
-
OEM/ODM
-
Type:
-
LW26GS pak-lock type switch
-
Certification:
-
ROHS, CE
-
Keywords:
-
3 Pole 4 Position Rotary Switch
Quick Details
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HF LW26GS pak-lock type switch
-
Model Number:
-
LW26GS LW26GS pak-lock type switch
-
Max. Current:
-
160A
-
Mechanical Life:
-
10,000,000times
-
supply:
-
600000pcs/month
-
Quality Assurance::
-
2 years
-
Color:
-
red
-
Have stock:
-
can be custmize
-
Service:
-
OEM/ODM
-
Type:
-
LW26GS pak-lock type switch
-
Certification:
-
ROHS, CE
-
Keywords:
-
3 Pole 4 Position Rotary Switch

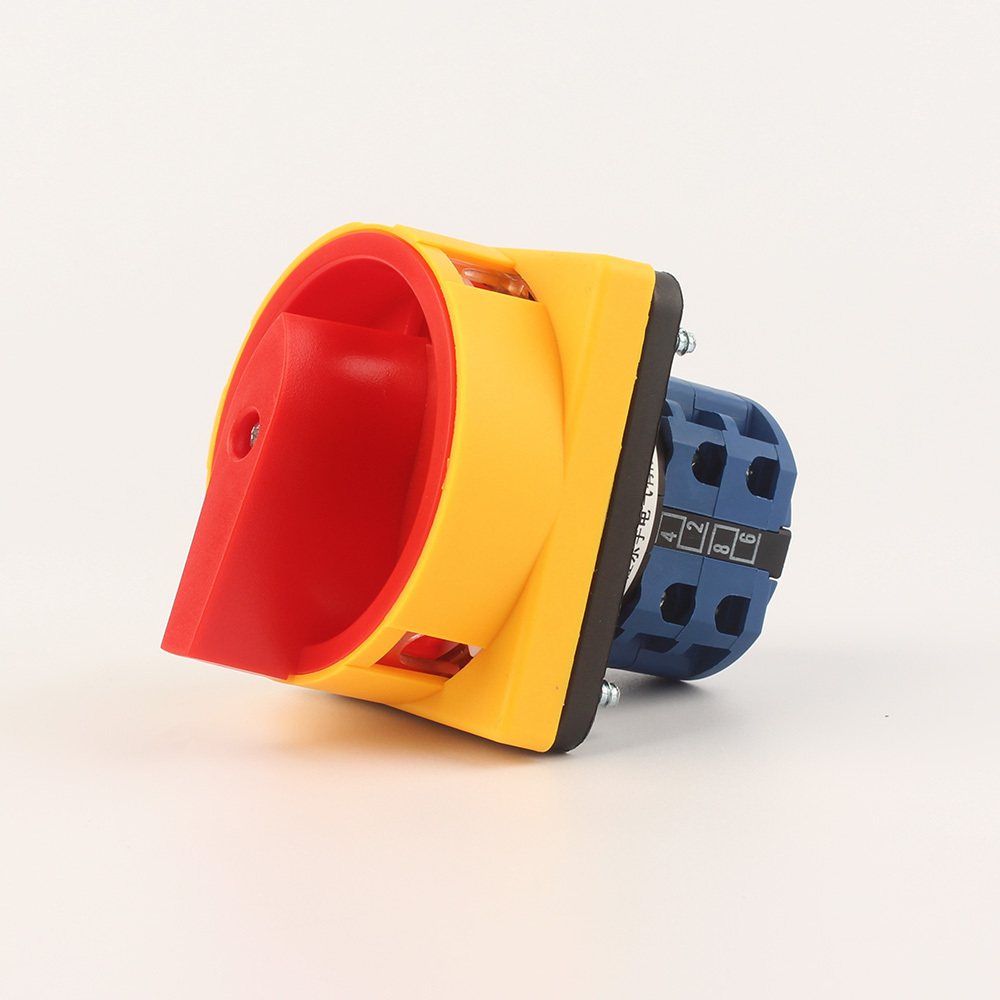

Selector switch LW26GS pak-lock type switch
Online wholesale: can contact us after your payment, inform us the model you need.
Offline payments: please contact us and talk about all the details, we will send the goods to you.
We are a factory, we can be customized switching power supply,we have quality products, low prices, and quick delivery.
Introduction
LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches.Installed in equipment where it requires a pad-lock to lock the switch in certain position.For instance,to fix the switch in ON position,to prevent the unauthorized personnel from operating the swith.
LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.
Technical parameters
|
Description |
LW26GS-20 |
LW26GS-25 |
LW26GS-32 |
LW26GS-63 |
LW26GS-125 |
LW26GS-160 |
|
|
Rated working voltage Ue |
V |
440 |
440 |
440 |
440 |
440 |
440 |
|
Rated thermal current Ith |
A |
20 |
25 |
32 |
63 |
125 |
160 |
|
Rated working current Ie |
|
|
|
|
|
|
|
|
AC-21A |
A |
20 |
25 |
32 |
63 |
100 |
150 |
|
AC-22A |
A |
20 |
25 |
32 |
63 |
100 |
150 |
|
AC-23A |
A |
15 |
22 |
30 |
57 |
90 |
135 |
|
power |
P |
|
|
|
|
|
|
|
AC-23A |
KW |
7.5 |
11 |
15 |
30 |
45 |
75 |
|
Operation |
|
|
|
|
|
|
|
|
non-load |
8500 |
8500 |
8500 |
8500 |
8500 |
8500 |
|
|
load |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
|
Total |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
Description |
Escutcheon plate |
Dimensions(mm) |
Installation(mm) |
||||||
|
A |
C |
L |
H |
E |
F |
D1 |
D2 |
||
|
LW26GS-20/04-1 |
M1 |
48 |
43 |
42 |
33 |
36 |
36 |
Φ8.5 |
Φ4.5 |
|
LW26GS-20/04-2 |
M2 |
64 |
43 |
43 |
42 |
48 |
48 |
Φ8.5 |
Φ4.5 |
|
LW26GS-25/04-1 |
M1 |
48 |
45.2 |
50 |
33 |
36 |
36 |
Φ8.5 |
Φ4.5 |
|
LW26GS-25/04-2 |
M2 |
64 |
45.2 |
51 |
42 |
48 |
48 |
Φ8.5 |
Φ4.5 |
|
LW26GS-32/04-2 |
M2 |
64 |
58 |
55 |
42 |
48 |
48 |
Φ10 |
Φ4.5 |
|
LW26GS-32/04-3 |
M3 |
88 |
58 |
55 |
52 |
68 |
68 |
Φ13 |
Φ6 |
|
LW26GS-63/04-2 |
M2 |
64 |
66 |
72.5 |
42 |
48 |
48 |
Φ10 |
Φ4.5 |
|
LW26GS-63/04-3 |
M3 |
88 |
58 |
55 |
52 |
68 |
68 |
Φ13 |
Φ6 |
|
LW26GS-125/04-3 |
M3 |
88 |
84 |
88 |
52 |
68 |
68 |
Φ13 |
Φ6 |
|
LW26GS-160/04-3 |
M3 |
88 |
88 |
100 |
52 |
68 |
68 |
Φ13 |
Φ6 |
