Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Sade
-
Model Number:
-
RJ23
-
Weight (KG):
-
3200
-
Power (kW):
-
2.2
-
Usage:
-
Protection and defense
-
Control system:
-
PLC Controlling
-
Material:
-
Galvanized stainless steel
-
Speed:
-
110times/min
-
Dimension:
-
1600 *1180*2310mm
-
Feature:
-
Efficient and Stable
-
Motor:
-
2.2kw 4kw 5.5kw
Quick Details
-
Wire Diameter (mm):
-
2.2 - 2.9 mm
-
Marketing Type:
-
Hot Product 2023
-
Production Capacity:
-
220-280m/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Sade
-
Model Number:
-
RJ23
-
Weight (KG):
-
3200
-
Power (kW):
-
2.2
-
Usage:
-
Protection and defense
-
Control system:
-
PLC Controlling
-
Material:
-
Galvanized stainless steel
-
Speed:
-
110times/min
-
Dimension:
-
1600 *1180*2310mm
-
Feature:
-
Efficient and Stable
-
Motor:
-
2.2kw 4kw 5.5kw
Automatic Galvanized Steel Razor Blade Barbed Wire Production Line
Advantages:
1. factory price!
2. top quality!
3. after-sale service!
♣ Introduction about razor wire machine
Razor wire netting machine , also named as razor barbed wire machine, is specially used to manufacture razor barbed wires.It mainly consists of punching razor strip machine, coiling wire machine and mould.

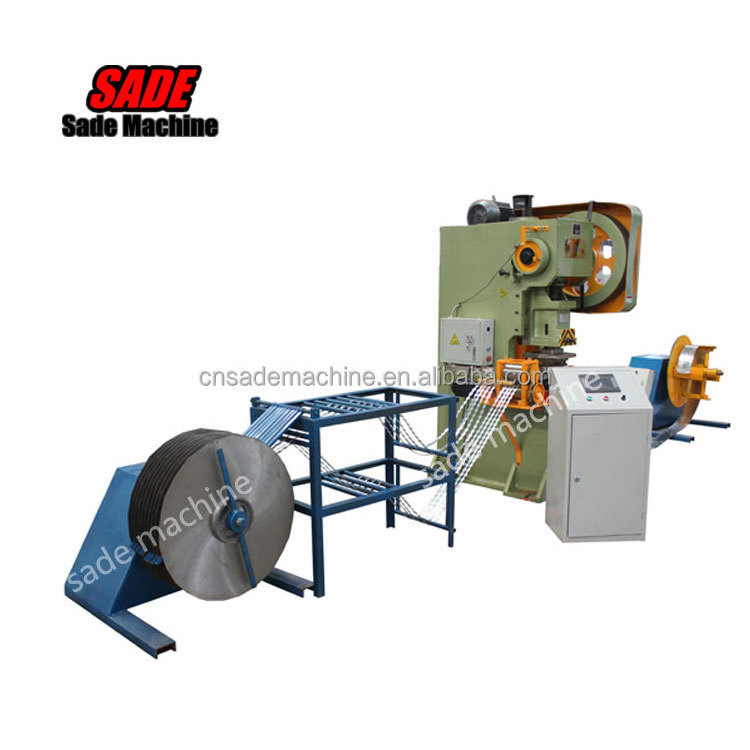

Whole production line: Decoiler→Punching machine→Razor strip drawing shelf→Razor strip collector→Razor strip laying shelf and wire pay-off stand→Wire coiling machine→Finished razor wire collector
Steps: 1. The punching razor strip machine is used as punching the outside razor strip of razor wire.
2. The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire.
3. The mould decide the razor length, width the space.
The whole production line
Part one: Main punching razor strip machine
| Type | 25T punching press (5 strips choice) | 40T punching press(9 strips choice) |
| Producing speed | 220-280m/h | 220-280m/h |
| Power | 2.2kw | 3.0kw |
| Rated voltage | 380V, 50HZ | 380V, 50HZ |
| Overal diamension | 1325*990*2140mm | 1300*1180*2310mm |
| Weight | 1.9T | 3.2T |
It mainly consists of Decoiler, punching machine, razor strip drawing shelf and razor strip collector.
Part two: Wire coiling machine
| Overal diamension | L*W*H: 1100*750*1200mm |
| Power | 1.5kw |
| Producing speed | 80kg/h |
| Rated voltage | 380V |
| Weight | 300kg |
It mainly consists of razor strip laying shelf, wire pay-off stand, wire coiling machine and finished razor wire collector.
application:
The razor wire is mainly used for safe isolation of military facilities, communications stations, power transformer substation, and territorial prison, dump site, community protection, school, factories and farms.
♣ Installation and commissioning
Machine to be installed and commissioned by SM technicians.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary US$80 per day, and the air ticket, accommodation, eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
♣ Guarantee
Except the wearing parts,12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts were broken caused by the product problem, seller will offer the parts by free. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.
