Quick Details
-
Model Number:
-
NF-8209
-
Product name:
-

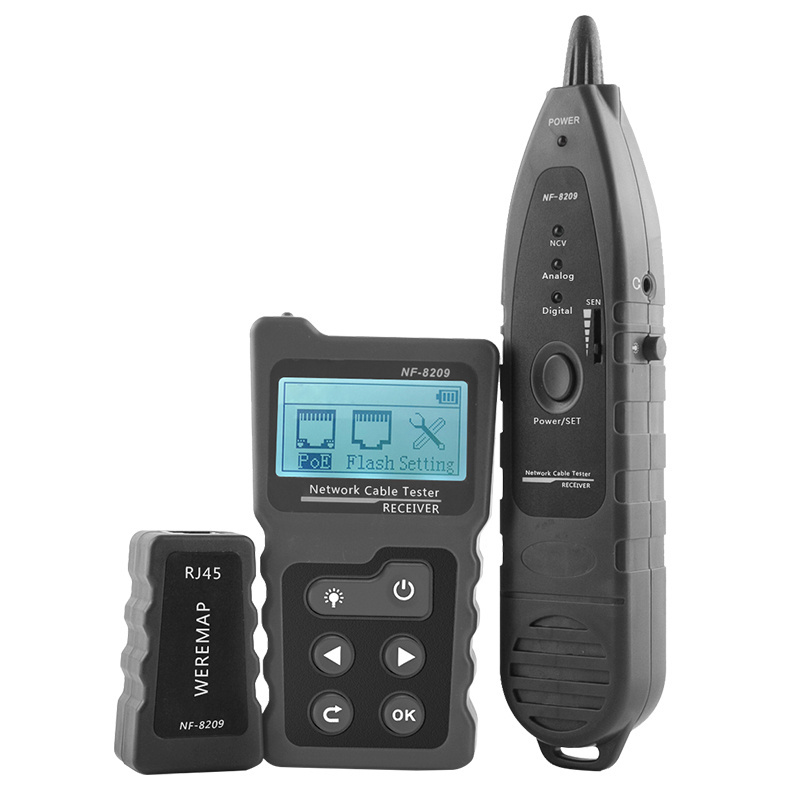

Network Cable Tester
-
Material:
-
ABS+electric parts
-
Power supply:
-
AAA battery*3
-
Port:
-
RJ45,POE
-
Test length:
-
CAT5,CAT6 (STP & UTP)
-
Tracking Type:
-
CAT5,CAT6 (STP & UTP)
-
POE test:
-
Check the POE (power over ethernet) stwich standard af/at
-
Warranty:
-
1 Year
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOYAFA
-
Model Number:
-
NF-8209
-
Product name:
-
Network Cable Tester
-
Material:
-
ABS+electric parts
-
Power supply:
-
AAA battery*3
-
Port:
-
RJ45,POE
-
Test length:
-
CAT5,CAT6 (STP & UTP)
-
Tracking Type:
-
CAT5,CAT6 (STP & UTP)
-
POE test:
-
Check the POE (power over ethernet) stwich standard af/at
-
Warranty:
-
1 Year
Product Description
Main function
1. Three scan modes selectable: AC filter mode/ Analog mode/ PoE mode
2. Detect AC voltage presence (50V-1000V).
3. Test physical status for STP, UTP lan cable.
4. Measure cable length accurately , the range is 200m.
5. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
6. PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
3. Test physical status for STP, UTP lan cable.
4. Measure cable length accurately , the range is 200m.
5. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
6. PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
Technical indexes
|
Transmitter
|
Wiremap
|
Cable type
|
CAT5、CAT6 (STP & UTP)
|
|
|
|
|
Test with switch directly
|
Yes
|
|
|
|
|
Max range
|
600m
|
|
|
|
Length
|
Cable type
|
CAT5、CAT6 (STP & UTP)
|
|
|
|
|
Test range
|
2~200m
|
|
|
|
|
Accuracy
|
±1.6m
|
|
|
|
|
Breakage location
|
Yes
|
|
|
|
Scan
|
Cable type
|
CAT5、CAT6 (STP & UTP)
|
|
|
|
|
Max. signal voltage
|
8Vp-p
|
|
|
|
|
Frequency
|
130KHz
|
|
|
|
|
AC filter
|
Yes
|
|
|
|
|
Max range
|
600m
|
|
|
|
POE
|
Test range
|
DC 5~60V standard / non-standard PoE switch
|
|
|
|
|
Voltage display
|
Yes
|
|
|
|
|
PSE type
|
IEEE 802.3af/at
|
|
|
|
LCD display
|
|
128*64 Dot-matrix with backlight
|
|
|
|
Power supply
|
|
AAA*3
|
|
|
|
Low battary warning
|
|
2.7V
|
|
|
|
Auto-off time
|
|
15min、30min、60min、OFF
|
|
|
|
Voltage protection
|
|
DC48V 5mA
|
|
|
|
Max working current
|
|
<150mA
|
|
|
Receiver
|
Sentivity adjustable
|
|
Yes
|
|
|
|
AC Voltage detecting
|
|
Yes
|
|
|
|
Lamp
|
|
Yes
|
|
|
|
Battary type
|
|
9V*1
|
|
|
|
Low battary warning
|
|
6± 0.5V
|
|
|
|
Max working current
|
|
<100mA
|
|
|
Remote
|
Wiremap Port
|
|
RJ45
|
|
|
|
Voltage protection
|
|
DC48V 5mA
|
|
