Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZCHRYSO
-
Voltage:
-
380v/customized
-
Dimension(L*W*H):
-
8000 *3400 *2800mm
-
Weight:
-
2800 KG
-
Product name:
-
coke leaves olive peat paper straw grass round briquette extruder
-
Usage:
-
Extruding Fuel Briquettes
-
Moisture:
-
14%-25%
-
Capacity(straw):
-
1.5,2.5,3,3.5,4.5,6t per hour
-
Motor power:
-
75,110,132,185kw
-
Briquette size:
-
32*32mm
-
Briquette length:
-
5cm
-
Hole quantity:
-
52,72,88,120pcs
-
Forming density(g/cm3):
-
0.8~1.4
-
Applicable raw materials:
-
biomass sawdust,straw hay,plastic
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
Biomass Fuel
-
Production Capacity:
-
1500kg/h-5000kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZCHRYSO
-
Voltage:
-
380v/customized
-
Dimension(L*W*H):
-
8000 *3400 *2800mm
-
Weight:
-
2800 KG
-
Product name:
-
coke leaves olive peat paper straw grass round briquette extruder
-
Usage:
-
Extruding Fuel Briquettes
-
Moisture:
-
14%-25%
-
Capacity(straw):
-
1.5,2.5,3,3.5,4.5,6t per hour
-
Motor power:
-
75,110,132,185kw
-
Briquette size:
-
32*32mm
-
Briquette length:
-
5cm
-
Hole quantity:
-
52,72,88,120pcs
-
Forming density(g/cm3):
-
0.8~1.4
-
Applicable raw materials:
-
biomass sawdust,straw hay,plastic
Product Description

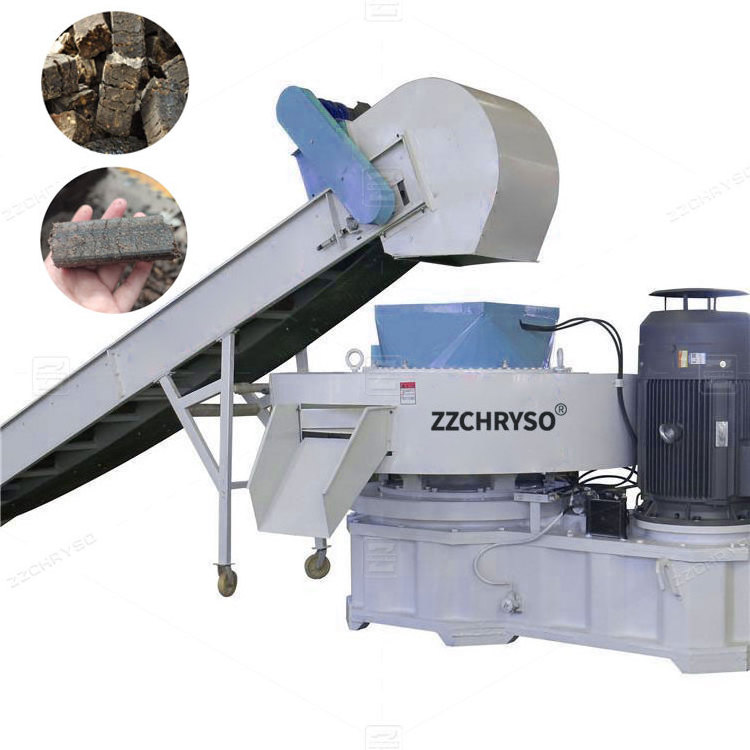

Fuel Solid Waste RDF Briquette Press Machine
The fuel briquetting machine can press agricultural and forestry wastes into briquettes by high-speed compression.Increase the proportion of biomass, extend the burning time, and facilitate storage and transportation.
The machine is consisted of forming system,outlet,heating ring and control cabinet.The raw materials for making briquette can be straw, sawdust, rice husk, peanut shell,seed shell, palm fiber, corn straw, alfalfa,hay,grass,animal manure,domestic garbage and other biomass waste material,RDF,plastic waste,etc.
The finished cube briquette is easy to storage and transportation.Widely used for heating stove,power plant and biogas
fermentation.
The machine is consisted of forming system,outlet,heating ring and control cabinet.The raw materials for making briquette can be straw, sawdust, rice husk, peanut shell,seed shell, palm fiber, corn straw, alfalfa,hay,grass,animal manure,domestic garbage and other biomass waste material,RDF,plastic waste,etc.
The finished cube briquette is easy to storage and transportation.Widely used for heating stove,power plant and biogas
fermentation.
Raw Material
Final Products
Specification
|
Model
|
CRS-2600A
|
CRS-3500A
|
CRS-4500A
|
CRS-6000A
|
|
Main motor
|
75kw
|
110kw
|
132kw
|
185kw
|
|
Voltage
|
380v 50hz
|
380v 50hz
|
380v 50hz
|
380v 50hz
|
|
Capacity(straw)
|
1500-2500kg/h
|
2500-3500kg/h
|
3000-4500kg/h
|
4000-6000kg/h
|
|
Moisture
|
14%-25%
|
14%-25%
|
14%-25%
|
14%-25%
|
|
Hole quantity
|
52pcs
|
72pcs
|
88pcs
|
120pcs
|
|
Briquette size
|
32*32mm
|
32*32mm
|
32*32mm
|
32*32mm
|
|
Dimension
|
8000 *3400 *
2800mm
|
8000*3500*
1900mm
|
3500*2200*
2280mm
|
4030*2680*
2380mm
|
Feature
1.Large capacity
The capacity of the general thermal capacity biofuel is 30-50 kg/ m³，and the capacity of this product is 800-1300
kg/m³，about 20 times than the general thermal capacity biofuel.
kg/m³，about 20 times than the general thermal capacity biofuel.
2.High Heat efficiency
The heat utilization of biomass is only 10%-20%,and the combustion utilization rate can reach more than 40% after curing.
The heat utilization of biomass is only 10%-20%,and the combustion utilization rate can reach more than 40% after curing.
3.Clean and hygienic, non-polluting
Biomass-cured fuels can achieve“zero emission” during combustion.
Biomass-cured fuels can achieve“zero emission” during combustion.
4.Biomass resource is huge and easy to take
Product Display
