Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUIJIN
-
Material:
-
plastic bag, PVDF with PET lining
-
Weight:
-
9kg
-
Size:
-
2000*630*36mm
-
Power:
-
0
-
Productivity:
-
200-4800L/hr
-
Weight (KG):
-
9 kg
-
Mebrane fiber (ID/OD):
-
1.0/2.2mm
-
Design Flux:
-
10-40L/M2.hour
-
Temprature Range:
-
10-45℃
-
MLSS Range:
-
4000-12000mg/L
-
Membrane Size:
-
2000*630*36mm
-
Membrane Pore size:
-
0.03 ~0.04um
-
TPM(Max):
-
50Kpa
-
PH Range:
-
2-11
-
Service Life:
-
More than 3 years
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Warranty of core components:
-
3 Year
-
Core Components:
-
hollow membrane fiber, mbr
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUIJIN
-
Material:
-
plastic bag, PVDF with PET lining
-
Weight:
-
9kg
-
Size:
-
2000*630*36mm
-
Power:
-
0
-
Productivity:
-
200-4800L/hr
-
Weight (KG):
-
9 kg
-
Mebrane fiber (ID/OD):
-
1.0/2.2mm
-
Design Flux:
-
10-40L/M2.hour
-
Temprature Range:
-
10-45℃
-
MLSS Range:
-
4000-12000mg/L
-
Membrane Size:
-
2000*630*36mm
-
Membrane Pore size:
-
0.03 ~0.04um
-
TPM(Max):
-
50Kpa
-
PH Range:
-
2-11
-
Service Life:
-
More than 3 years
Automatic EDI Module Deionized Water
lonpure EDI Module for Ultrapure Water for Lab Use
Product Introduction

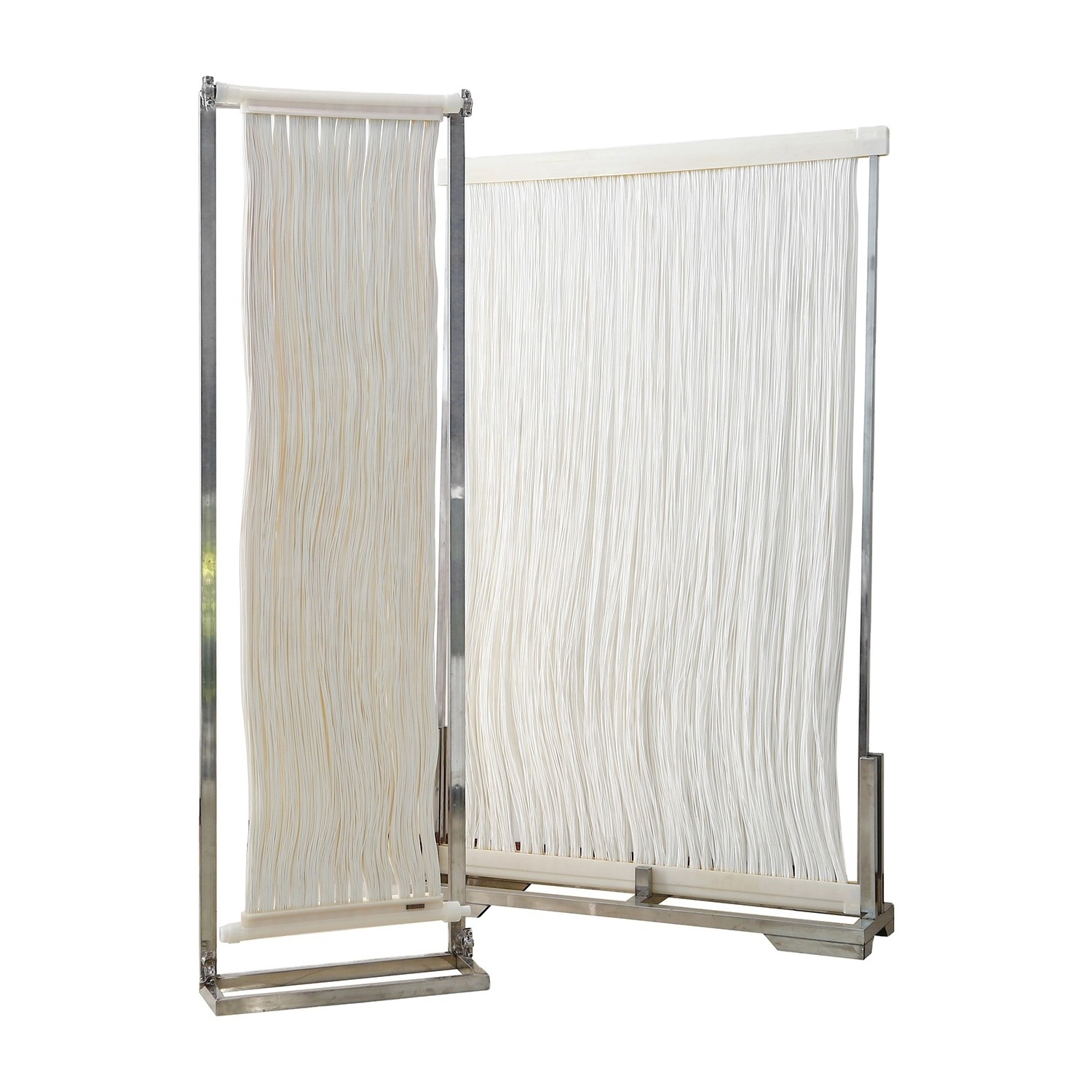

Membrane fiber Specification and Parameters
|
Membrane material
|
Poly vinylidene fluoride（PVDF with Reinforced lining）
|
|
Membrane Pore size
|
0.034-0.1µm
|
|
Membrane fiber (ID/OD)
|
1.0/2.2mm, 0.8/1.9mm，1.0/2.0mm
|
|
Filter method
|
Negative pressure suction mode
|
|
TPM(Max)
|
50Kpa
|
|
Designed Flux
|
10-40L/㎡·h
|
|
PH Range
|
2-11
|
|
Temperature Range
|
5-40℃
|
|
MLSS Range
|
4000-12000mg/L (min：3000mg/L, max：15000mg/L)
|
|
Model
|
|
MBR6
|
MBR10
|
MBR15
|
MBR-20
|
MBR-35
|
|
|||||
|
Element size
|
A*b*D(mm)
|
600*760*40
|
630*1000*36
|
630*1500*36
|
630*2000*36
|
844*2198*49
|
|
|||||
|
|
Connection
|
Ф25
|
Ф32
|
Ф32
|
Ф32
|
Ф32
|
|
|||||
|
Element parameters
|
Effective membrane area
|
6m²
|
10m²
|
15m²
|
20m²
|
35m²
|
|
|||||
|
|
Pore size
|
0.03~ 0.1µm
|
|
|
|
|
|
|||||
|
|
Material
|
PVDF（ PET lining）
|
|
|
|
|
|
|||||
|
|
Water catchment mode
|
Both ends of the catchment
|
|
|
|
|
|
|||||
|
|
Filtration mode
|
Negative pressure suction
|
|
|
|
|
|
|||||
|
Operating conditions
|
TMP
|
0.02~0.05Mpa
|
|
|
|
|
|
|||||
|
|
MAX Backwash pressure
|
0.1Mpa
|
|
|
|
|
|
|||||
|
|
Water temperature
|
10~45℃
|
|
|
|
|
|
|||||
|
|
Running PH tolerance range
|
5~9
|
|
|
|
|
|
|||||
|
|
Cleaning PH tolerance range
|
2~10
|
|
|
|
|
|
|||||
|
|
Aeration rate(Nm³)/ projected area
|
15:1~20:1
|
|
|
|
|
|
|||||
|
Performance
|
Produced water
|
Turbidity <0.3NTU SS≈0 SDI<4
|
|
|
|
|
|
|||||
|
|
Working life
|
≥ 5 years under normal usage
|
|
|
|
|
|
|||||
|
Model
|
|
|
JHM-MBR-II15
|
JHM-MBR-II30
|
||
|
Element size
|
a*b
|
1250mm*1300mm
|
|
1250mm*2000mm
|
||
|
|
Connection
|
|
Ф32
|
Ф32
|
||
|
Element parameters
|
Efective membrane area
|
|
15m²
|
30m²
|
||
|
|
Pore size
|
|
0.03~ 0.1µm
|
0.03~ 0.1µm
|
||
|
|
material
|
|
PVDF membrane with PET support tube & ABS cartridge
|
|
||
|
|
Method of integration
|
|
Both ends of the catchment
|
|
||
|
|
Filtration mode
|
|
Negative pressure suction by submersed membrane
|
|
||
|
Operating conditions
|
Operation pressure range
|
|
0.02~0.05Mpa
|
|
||
|
|
MAX Backwash pressure
|
|
0.1Mpa
|
|
||
|
|
Temperature
|
|
10~45℃
|
|
||
|
|
Run PH tolerance range
|
|
5~9
|
|
||
|
|
Clean PH tolerance range
|
|
2~10
|
|
||
|
|
Aeration rate(Nm³)/ projected area
|
|
100-150 m/h
|
|
||
|
Performance
|
Produced water turbidity
|
|
Turbidity <0.3NTU SS≈0 SDI<4
|
|
||
|
|
Working life
|
|
≥ 5 years under normal usuage
|
|
||
|
Model
|
JHM-MBR20-32
|
|
Element quanity (piece)
|
20m²/pc *32pcs
|
|
Effective membrane area
|
640m²
|
|
Membrane module bracket dimension
|
1690*1420*2380mm
|
|
Dry/Wet weight(inlc. water&sludge adhering)
|
600kgs/900kgs
|
