Quick Details
-
Model Number:
-
HDS-08-TR 8POS SMD DIP SWITCH
-
Max. Current:
-
100 mA
-
Item name:
-
8POS SMD DIP SWITCH
-
Terminal Type:
-
SMT SMD S Lead
-
Position NO.:
-
8 position
-
Circuit:
-
SPST
-
Pitch:
-
1.27mm
-
Switching Rating:
-
24VDC 25mA
-
Recessed Actuator:
-
Tape Sealed
-
Travel of 1.27mm dip switch:
-
0.6mm
-
Electrical life:
-
2000cycles
-
Operation Temp:
-
-30 ℃ TO +85℃
Quick Details
-
Max. Voltage:
-
50VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Eker
-
Model Number:
-
HDS-08-TR 8POS SMD DIP SWITCH
-
Max. Current:
-
100 mA
-
Item name:
-
8POS SMD DIP SWITCH
-
Terminal Type:
-
SMT SMD S Lead
-
Position NO.:
-
8 position
-
Circuit:
-
SPST
-
Pitch:
-
1.27mm
-
Switching Rating:
-
24VDC 25mA
-
Recessed Actuator:
-
Tape Sealed
-
Travel of 1.27mm dip switch:
-
0.6mm
-
Electrical life:
-
2000cycles
-
Operation Temp:
-
-30 ℃ TO +85℃

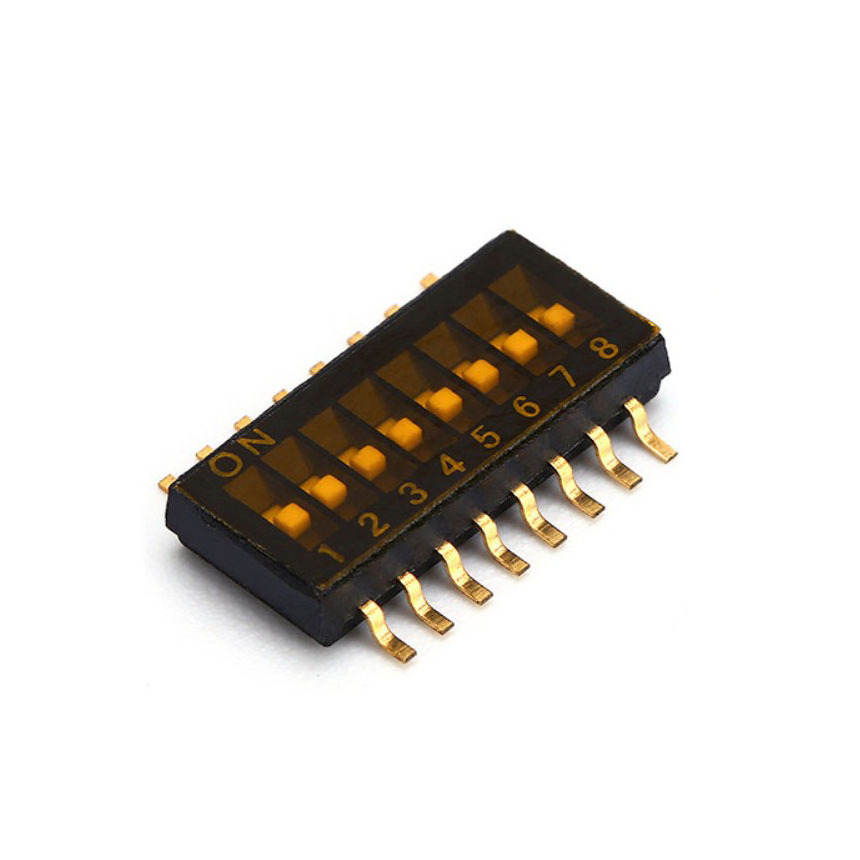

SPST Low Profile GullWing HALF PITCH 8POS SMD DIP SWITCH 2.3mm Height
This 1.27mm mini micro dip switch are used for garage door openers, telecommunications, test & instrumentation, and controller applications, etc.
Advantages:
- • Half-pitch surface mount DIP Switch
- • 2 to 10 positions, top tape seal optional
- • Tube or tape and reel packaging
- • OEM&ODM welcome
| Type | Half Pitch 1.27mm |
| Model Number | HDS-08-TR |
| Terminal | SMT/SMD S Lead |
| Operation Force | 1000gf max |
| Electrical Life | 2000Cycles |
| Operation Temp | -40℃ ~ +85℃ |
|
Switch/Non-Switch Rating |
24VDC 25mA; 50VDC 100mA |
|
Available Positions |
1, 2, 3, 4, 5, 6, 8, 10, 12 |
|
Mounting |
PCB surface mount |
If need more information about smd mini dip switch, please contact us to get the datasheet.
